| Prod Model: |
YJLV/YJLV22/YJLV32/YJLV42 |
| Delivery Length: |
Accord with The Request |
| No. Of Cores: |
Single Core |
| Factory Area: |
100000m2 |
| Experience: |
20 Years |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
RoHS |
| Model: |
Yjv/Yjv22/Yjv32/Yjv42 |
| Brand: |
Huatong |

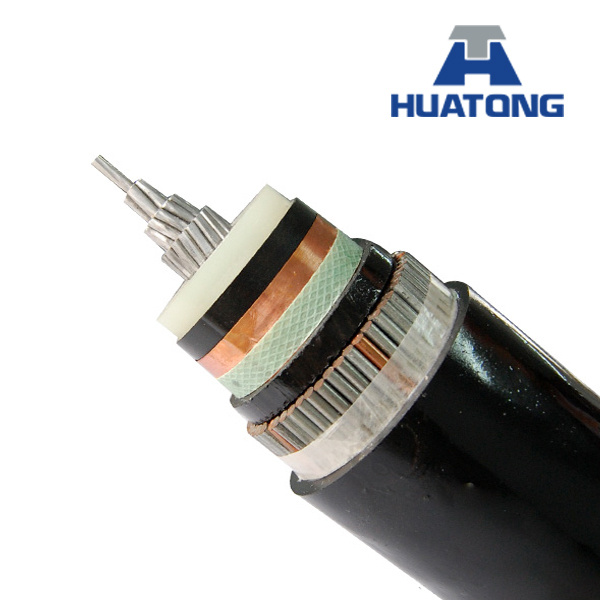

Product Description
1.Product Usage
The products applies to transmission and distribution of high voltagepower lines at rated voltage 6-35kV
2.Application Properties
The max rated temperature of conductor is 90ºC.When shortcircuited ,the max temperature of the conductor of cable is 250ºC.
The temperature of laying should not be lower than 0ºC,a heating be forhand is needed if the anbiebt temp of laying is lower than 0ºC.
The bend radius for laying :the one of single cire cable should not be shorter than fifteen times of outer diam:the one of the multi core should not be shorter than ten times of outer diam.
3.
| Type | Description | Application |
| Cu | Al |
| YJV | YJLV | XLPE insulated and PVC sheathed power cable | Can be laid in indoor,outdoor,tunnels,reinforced concrepte pipelines and loose soil .Cable can not bear outer mechanical force ,but can bear a certain tractional force. |
|
| YJV22 | YJLV22 | XLPE insulated ,steel tape armored and PVC shesthed power cable | Laid underground ,cable can bear outer mechanical force ,but can be bear a large tractional force |
|
|
| YJV32 | YJLV32 | XLPE insulated ,thin steel wire armored and PVC sheathed power cable | Laid in indoor ,tunnels and mines .Cable can be bear outer mechanical force and fairly large tractional force . |
|
|
| YJV42 | YJLV42 | XLPE insulated ,thick steel wire armored and PVC sheathed power cable . | Can be laid in vertical section ,indoor tunnels and mines .Cable can be bear outer mechanical force and bery large tractional force. |
|
|
4.Range of production
core /area/rated voltage |
0.6/1 |
1.8/3 |
single core 1 |
1.5-1000 |
10-1000 |
double core 2 |
1.5-240 |
10-240 |
three core 3 |
1.5-300 |
10-300 |
core3+2 |
2.5-300 |
10-300 |
Notes:core number,cross section depends on cable type,voltage.
5.
| 0.6/1kv XLPE/PVC POWER CABLE(unarmored) YJV,YJLV | | | | | | | | | | | | | | |
| | | | | | | | | | | | | | | | | | | | | | |
| sectional Area of Conductor(mm²) | Thickness of insulation(mm) | Non-metallic sheath unarmored cable |
| Thickness of sheath | approx overall diameter | approx cable weight(kg/km) |
| mm | mm | Cu | Al |
| 1c | 2c | 3c | 4c | 5c | 1c | 2c | 3c | 4c | 5c | 1c | 2c | 3c | 4c | 5c | 1c | 2c | 3c | 4c | 5c |
| 1.5 | 0.7 | 1.4 | 1.8 | 1.8 | 1.8 | 1.8 | 5.6 | 10 | 10.4 | 11.1 | 11.9 | 45 | 122 | 139 | 167 | 195 | 35 | 103 | 111 | 506 | 148 |
| 2.5 | 0.7 | 1.4 | 1.8 | 1.8 | 1.8 | 1.8 | 6 | 10.8 | 11.2 | 12.1 | 13 | 57 | 148 | 175 | 215 | 253 | 42 | 117 | 129 | 641 | 175 |
| 4 | 0.7 | 1.4 | 1.8 | 1.8 | 1.8 | 1.8 | 6.5 | 11.7 | 12.3 | 13.2 | 14.3 | 75 | 185 | 228 | 285 | 337 | 50 | 135 | 153 | 833 | 212 |
| 6 | 0.7 | 1.4 | 1.8 | 1.8 | 1.8 | 1.8 | 7 | 12.7 | 13.4 | 14.4 | 15.6 | 97 | 239 | 295 | 373 | 445 | 60 | 165 | 183 | 1086 | 258 |
| 10 | 0.7 | 1.4 | 1.8 | 1.8 | 1.8 | 1.8 | 8.1 | 15 | 15.8 | 17.2 | 18.7 | 143 | 346 | 445 | 568 | 681 | 80 | 220 | 256 | 1629 | 366 |
| 16 | 0.7 | 1.4 | 1.8 | 1.8 | 1.8 | 1.8 | 9.2 | 17.2 | 18.2 | 19.8 | 21.7 | 206 | 494 | 660 | 835 | 1008 | 106 | 292 | 358 | 2377 | 505 |
| 25 | 0.9 | 1.4 | 1.8 | 1.8 | 1.8 | 1.8 | 10.6 | 20 | 21.2 | 23.2 | 25.5 | 303 | 711 | 951 | 1217 | 1483 | 146 | 396 | 479 | 3457 | 696 |
| 35 | 0.9 | 1.4 | 1.8 | 1.8 | 1.8 | 1.8 | 11.8 | 22.4 | 23.8 | 26.1 | 28.7 | 403 | 919 | 1267 | 1598 | 1959 | 185 | 478 | 606 | 4528 | 858 |
| 50 | 1 | 1.4 | 1.8 | 1.8 | 1.9 | 2 | 13.2 | 25.2 | 26.8 | 29.7 | 32.9 | 554 | 1188 | 1675 | 2209 | 2733 | 241 | 558 | 731 | 6190 | 1160 |
| 70 | 1.1 | 1.4 | 1.9 | 1.9 | 2 | 2.1 | 15 | 22.2 | 25.7 | 30 | 36.2 | 755 | 1564 | 2260 | 2987 | 3735 | 317 | 683 | 939 | 8348 | 1533 |
| 95 | 1.1 | 1.5 | 2 | 2 | 2.1 | 2.3 | 16.9 | 25.2 | 29.1 | 34.2 | 40.3 | 1004 | 2069 | 3003 | 3977 | 4975 | 409 | 874 | 1210 | 11091 | 1987 |
| 120 | 1.2 | 1.5 | 2.1 | 2.1 | 2.3 | 2.4 | 18.5 | 28.2 | 32.4 | 37.2 | 44.7 | 1250 | 2592 | 3763 | 4983 | 6228 | 498 | 1082 | 1498 | 13880 | 2453 |
| 150 | 1.4 | 1.6 | 2.2 | 2.3 | 2.4 | 2.6 | 20.6 | 31 | 36.2 | 41.2 | 50.3 | 1558 | 3214 | 4700 | 6202 | 7777 | 619 | 1327 | 1869 | 17280 | 3059 |
| 185 | 1.6 | 1.6 | 2.3 | 2.4 | 2.6 | 2.8 | 22.7 | 36.8 | 40.4 | 46.2 | 58.6 | 1908 | 3978 | 5779 | 7655 | 9623 | 750 | 1650 | 2287 | 21355 | 3803 |
| 240 | 1.7 | 1.7 | 2.5 | 2.6 | 2.8 | 3 | 25.3 | 41.6 | 47.4 | 53.3 | 63.1 | 2450 | 5104 | 7456 | 9859 | 12326 | 947 | 2084 | 2926 | 27399 | 4776 |
| 300 | 1.8 | 1.8 | 2.7 | 2.8 | 3 | 3.2 | 27.9 | 46.4 | 50.1 | 59.4 | 68.2 | 3053 | 6328 | 9234 | 12260 | 15291 | 1163 | 2541 | 3554 | 33997 | 5824 |
| 400 | 2 | 1.9 | | 3.1 | 3.3 | 3.6 | 31.6 | | 57.2 | 68.4 | 83.1 | 4021 | | 12224 | 16240 | 20305 | 1514 | | 4651 | 36685 | 7683 |
| 500 | 2.2 | 2 | | 3.3 | 3.3 | | 35 | | 74.2 | 82.2 | | 5002 | | 15136 | 20176 | | 1869 | | 5849 | 7554 | |
| 630 | 2.4 | 2.2 | | | | | 39.3 | | | | | 6290 | | | | | 2342 | | | | |
| 800 | 2.6 | 2.3 | | | | | 44.8 | | | | | 7957 | | | | | 2943 | | | | |
| 1000 | 2.8 | 2.4 | | | | | 49.9 | | | | | 9897 | | | | | 3629 | | | | |
| 0.6/1kv XLPE/PVC POWER CABLE(unarmored) YJV,YJLV | | | | | | | | | | | | | | | |
| | | | | | | | | | | | | | | | |
| sectional Area of Conductor (mm²) | Thickness of insulation (mm) | Non-metallic sheath unarmored cable |
| thickness of sheath | approx overall diameter | cable weight |
| mm | mm | Cu | Al |
| phase line | zero line | phase line | zero line | 3+1c | 3+2c | 4+1c | 3+1c | 3+2c | 4+1c | 3+1c | 3+2c | 4+1c | 3+1c | 3+2c | 4+1c |
| 2.5 | 1.5 | 0.7 | 0.7 | 1.8 | 1.8 | 1.8 | 11.9 | 12.6 | 12.8 | 206 | 229 | 253 | | | |
| 4 | 2.5 | 0.7 | 0.7 | 1.8 | 1.8 | 1.8 | 12.9 | 13.7 | 14 | 268 | 302 | 323 | 178 | 196 | 197 |
| 6 | 4 | 0.7 | 0.7 | 1.8 | 1.8 | 1.8 | 14.2 | 15.1 | 15.4 | 352 | 402 | 428 | 215 | 240 | 237 |
| 10 | 6 | 0.7 | 0.7 | 1.8 | 1.8 | 1.8 | 16.5 | 17.5 | 18.1 | 517 | 584 | 645 | 290 | 321 | 328 |
| 16 | 10 | 0.7 | 0.7 | 1.8 | 1.8 | 1.8 | 19.2 | 20.5 | 21.1 | 761 | 865 | 955 | 396 | 437 | 444 |
| 25 | 16 | 0.9 | 0.7 | 1.8 | 1.8 | 1.8 | 22.4 | 23.9 | 24.7 | 1110 | 1278 | 1406 | 538 | 605 | 606 |
| 35 | 16 | 0.9 | 0.7 | 1.8 | 1.8 | 1.8 | 24.6 | 25.9 | 27.3 | 1402 | 1558 | 1805 | 647 | 709 | 731 |
| 50 | 25 | 1 | 0.9 | 1.8 | 1.9 | 1.9 | 28 | 29.9 | 31.3 | 1943 | 2243 | 2531 | 842 | 984 | 975 |
| 70 | 35 | 1.1 | 0.9 | 1.9 | 2 | 2.1 | 29.5 | 33.2 | 34.4 | 2645 | 3038 | 3412 | 1101 | 1273 | 1234 |
| 95 | 50 | 1.1 | 1 | 2.1 | 2.2 | 2.2 | 33.2 | 37.8 | 38.7 | 3554 | 4105 | 4551 | 1443 | 1679 | 1579 |
| 120 | 70 | 1.2 | 1.1 | 2.2 | 2.3 | 2.4 | 36.3 | 41.6 | 43.6 | 4504 | 5265 | 5791 | 1793 | 2112 | 1993 |
| 150 | 70 | 1.4 | 1.1 | 2.3 | 2.4 | 2.5 | 39.7 | 45.9 | 47.9 | 5425 | 6200 | 7018 | 2147 | 2480 | 2380 |
| 185 | 95 | 1.6 | 1.1 | 2.5 | 2.6 | 2.7 | 45.4 | 51.4 | 53.3 | 6781 | 7792 | 8720 | 2683 | 3095 | 2946 |
| 240 | 120 | 1.7 | 1.2 | 2.7 | 2.8 | 2.9 | 53 | 58.6 | 60.1 | 8708 | 9960 | 11172 | 3412 | 3907 | 3701 |
| 300 | 150 | 1.8 | 1.4 | 2.9 | 3 | 3.1 | 58.3 | 65.4 | 62.9 | 10818 | 12394 | 13827 | 4192 | 4823 | 4480 |
| 400 | 185 | 2 | 1.6 | 3.1 | 3.3 | 3.4 | 67.5 | 74. 2 | 67.8 | 14163 | 16132 | 18093 | 5423 | 6225 | 5725 |
Huatong Cable Inc. has made outstanding contribution to STATE GRID, China SOUTH POWER GRID and the construction of domestic and foreign power market since foundation in 1993. The honors should be attributed to more than 20 years of constant R&D, market service and strong will.
Huatong Cable Inc. has set up overhead conductor division, power cable division and division of wire and cable for equipment. The division respectively takes charge of manufacture and marketing of overhead conductor, power cable and wire and cable for equipment. In 2002, our company set up the cable industry design and technology R&D department, providing technical support for product design and production. Our company makes independent innovation, and seeks cooperation with academic institutions including Shanghai Electric Cable Research Institute and China Electric Power Research Institute so as to meet the customized demands of customers and production needs of special cable. Now our company owns 25 exclusive rights to use trademark registered at home and abroad and 14 independent intellectual property patents. ACSR-720/50 aluminum cable steel reinforced has passed the technical appraisal of China Electricity Council. 500KV or above extra-high voltage conductor was put into production, came into service and had good operation record.
In 2013, Huatong Brand was awarded WELL KNOWN MARK OF China by the Trademark Office of the State Administration of Industry and Commerce, enjoying a high reputation in domestic market. The honor and legal status reflect the recognition of customers and support of the State Administration of Industry and Commerce. It is the only enterprise in cable industry in Henan that was awarded WELL KNOWN MARK OF China and Huatong brand will serve the society in the future.
