| Prod Model: |
ABC-Dayuan-020 |
| Quality Check: |
All Products Checked by Experienced QC |
| Trail Order: |
Welcome |
| OEM Service: |
Welcome |
| Delivery Date: |
15days~35days After Order Confirmed |
| HS Code: |
85444929 |
| Other: |
High Voltage |
| Conductor Shape: |
Circular Core or Compact Core |
| Cross Section Area: |
1.5-800 mm2 |
| Standard: |
IEC502,BS7870-5,GB12527-91 |
| Key Word: |
Triplex Cable |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Sheath Material: |
Non |
| Range Of Application: |
Overhead Transmision |
| Brand: |
Dayuan |
Product Description

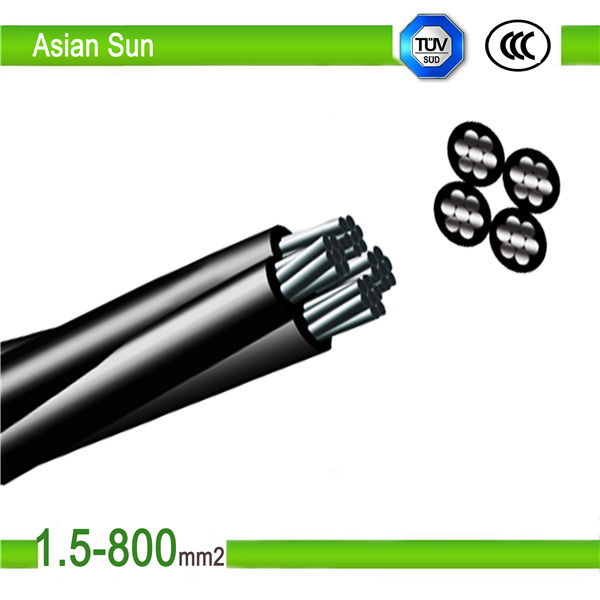

0.6/1kV Aluminum alloy cable XLPE Conductor 1*16+16 Aerial Bundled Cable
We have one big workshop to produce the raw material: aluminium wire rod, many company buy it from us to produce various cable so that our monthly turnover of it has up to 100 million!
So our price is very competitive and can gurantee the delivery time!

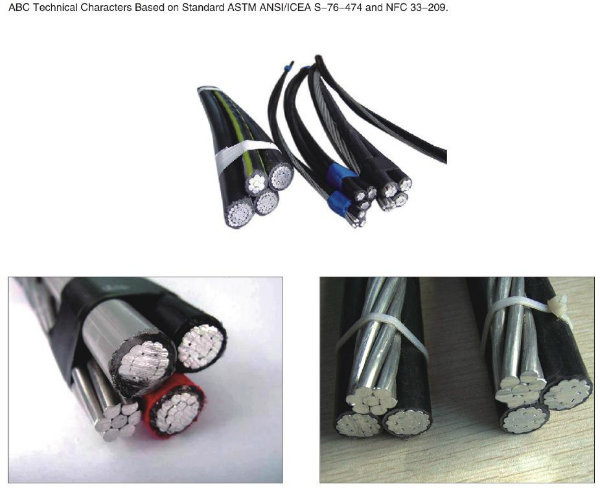

xlpe insulation abc cable
Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.
xlpe insulation abc cable
service drop cable meets or exceeds the following ASTM specifications:
· B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
· B-231 Aluminum Conductors, Concentric-Lay-Stranded.
· B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
· B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
· B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire
xlpe insulation abc cable

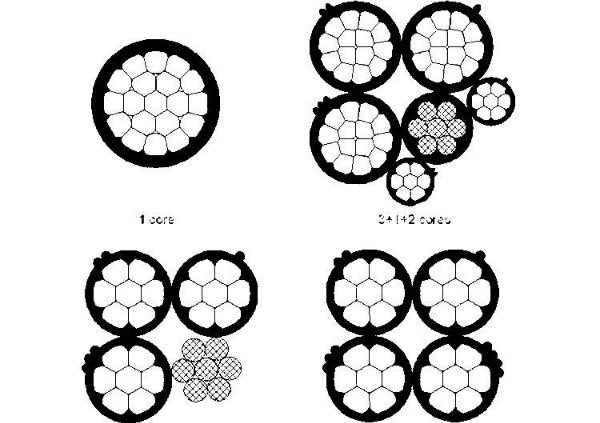

Conductors are concentrically stranded, compressed 1350 H-19 aluminum. Insulated with either polyethylene or cross-linked polyethylene (XLPE). Neutral messengers are concentrically stranded 6201, AAC, or ACSR.

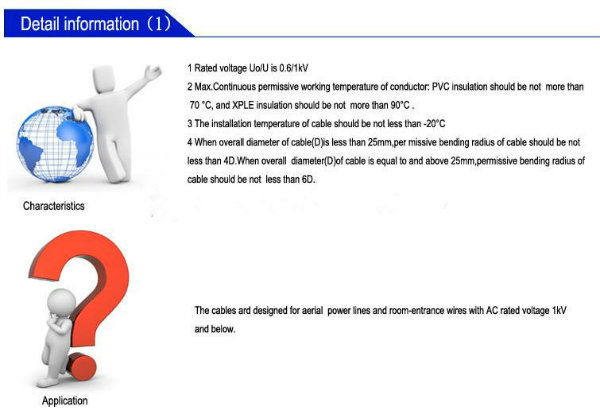

2x16mm2 abc cable information 1
xlpe insulation abc cable specification
| code | Rated Voltage | | Type | ABC |
AWG or kcmil | Structure |
| Neutral Wire (ACSR) | Phase Wire | | Cable | Cable |
| Steel | Aluminium | Conductor | Aluminium | Dia | | Dia | Dia | kg/km |
| No. | Dia | No. | Dia | Dia | No. | Dia | mm |
| Morochuca | 3*6AWG+1*6AWG | 1 | 1.68 | 6 | 1.68 | 5.04 | 1 | 4.11 | 4.11 | 1.14 | 6.40 | 14.62 | 221 |
| Chola | 3*6AWG+1*6AWG | 1 | 1.68 | 6 | 1.68 | 5.04 | 7 | 1.55 | 4.66 | 1.14 | 6.95 | 15.62 | 227 |
| Morgan | 3*4AWG+1*4AWG | 1 | 2.12 | 6 | 2.12 | 6.36 | 1 | 5.19 | 5.19 | 1.14 | 7.48 | 17.37 | 331 |
| Hackney | 3*4AWG+1*4AWG | 1 | 2.12 | 6 | 2.12 | 6.36 | 7 | 1.96 | 5.88 | 1.14 | 8.17 | 18.62 | 338 |
| Palomino | 3*2AWG+1*2AWG | 1 | 2.67 | 6 | 2.67 | 8.02 | 7 | 2.47 | 7.42 | 1.14 | 9.71 | 22.41 | 511 |
| Costena | 3*1/0AWG+1*1/0AWG | 1 | 3.37 | 6 | 3.37 | 10.11 | 19 | 1.89 | 9.47 | 1.52 | 12.52 | 28.77 | 824 |
| Grullo | 3*2/0AWG+1*2/0AWG | 1 | 3.78 | 6 | 3.78 | 11.35 | 19 | 2.13 | 10.63 | 1.52 | 13.68 | 31.61 | 1015 |
| Suffolk | 3*3/0AWG+1*3/0AWG | 1 | 4.25 | 6 | 4.25 | 12.74 | 19 | 2.39 | 11.94 | 1.52 | 14.99 | 34.82 | 1254 |
| Appaloosa | 3*4/0AWG+1*4/0AWG | 1 | 4.77 | 6 | 4.77 | 14.31 | 19 | 2.68 | 13.40 | 1.52 | 16.45 | 38.42 | 1554 |
| Broneo | 3*336.4+1*336.4 | 1 | 3.47 | 18 | 3.47 | 17.36 | 19 | 3.38 | 16.90 | 2.03 | 20.96 | 48.43 | 2321 |
| Gelding | 3*336.4+1*4/0AWG | 1 | 4.77 | 6 | 4.77 | 14.31 | 19 | 3.38 | 16.90 | 2.03 | 20.96 | 46.59 | 2221 |

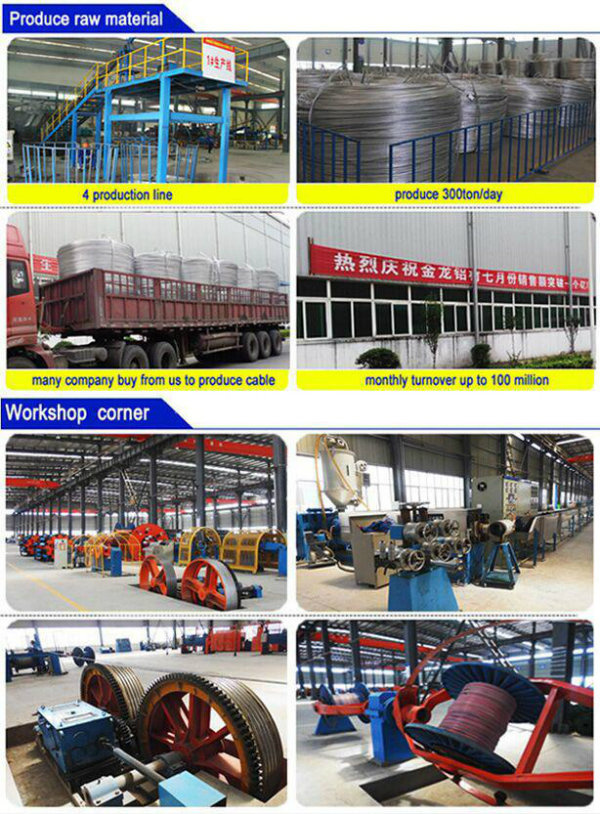

xlpe insulation abc cable workshop corner

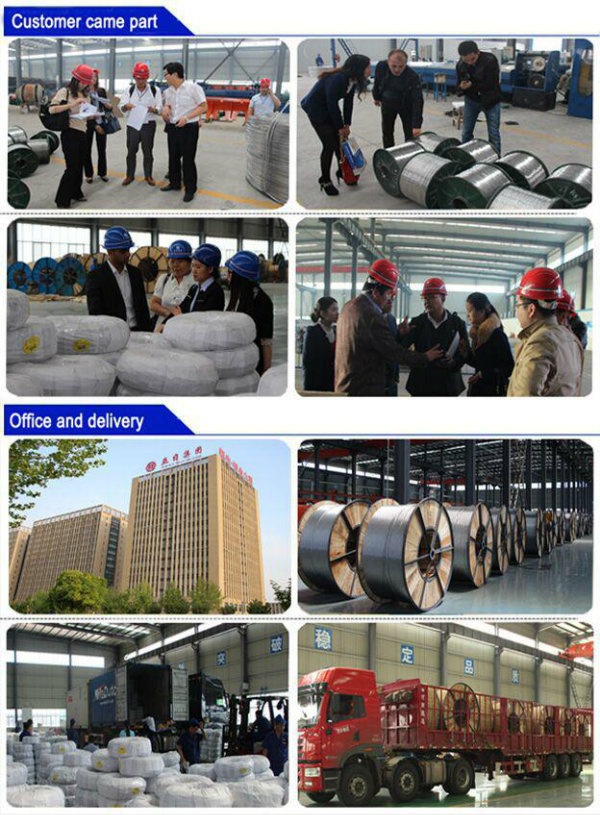

xlpe insulation abc cable customer visit our factory
xlpe insulation abc cable packing
xlpe insulation abc cable why you choose us
