Overhead Aerial Bundle Cable ACSR Conductor for Power Transmission Line

Name: Overhead Aerial Bundle Cable ACSR Conductor for Power Transmission Line
Brand: all-electronics-online.com
SKU: 717978232
Availability: InStock
Rating: 5 (99 reviews)

Price:	US $ 0.22-0.25/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ABC Cable
Conductor Type:	Compact/Circular
Cable Type:	Twisted
OEM:	Yes
Sample:	Free
Application:	Telecommunication
Voltage:	Low and Medium Voltage Cable
Current:	AC Cable
Insulation Material:	XLPE
Certification:	CE
Wire Core Material:	Aluminum
Model:	ABC Cable
Brand:	Da Yuan

Product Description

Application of Aluminum, ACSR, AAC Conductor XLPE/PE ABC( aerial bundled cable )

Overhead, outdoors or in some low voltage areas.

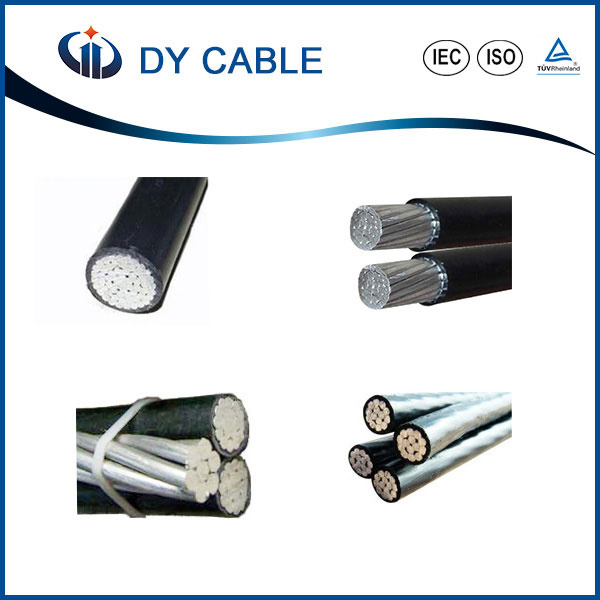

Aerial Bundle Cable(ABC Cable)
is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level safety and reliability, lower power losses and ultimate system economy by reducing installation , maintenance and operative cost.

Standards of Aluminum, ACSR, AAC Conductor XLPE/PE ABC( aerial bundled cable )

ASTM, BS, IEC, NFC, GB, AS/NZS

Construction of Aluminum, ACSR, AAC Conductor XLPE/PE ABC( aerial bundled cable )

Conductor: Aluminum conductor, round stranded conpressed(RM).

Insulation: XLPE compound

Core identification: 1, 2 resp.3 raised longitudinal ribs on the surface of the cores. The surface of the neutral should have at least 12 ribs for cross-sections up to 50mm2 and a minimum of 16 ribs for cores above 50mm2. In the case of five core bundles the surface of the protective core should be smooth.

Models and descriptions
Covered line wire:
JKY: Copper core PE insulated aerial cable
JKYJ: Copper core XLPE insulated aerial cable
Service drop cable:
JKLY: Aluminum core PE insulated aerial cable
JKLYJ: Aluminum core XLPE insulated aerial cable
Secondary UD cable:
JKLHY: Aluminum alloy core PE insulated aerial cable
JKLHYJ: Aluminum alloy core XLPE insulated aerial cable

Nominal Cross-sectional Areas(sqmm)

10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2

Luoyang Da Yuan Cable Factory Co., Ltd. is founded in the Sept. 2011 with registered fund 200 million RMB which is the subsidiary of Luoyang Asian Sun Industrial Group Co., Ltd. We can produce all kinds of high and low voltage electric wire and cables, and have been one of the new technology development enterprise made scientific, industry, trading as a whole. Main products include power cables, PV cable, control cables, branching cables, aerial cables, Most important thing is that we also produce the raw material-aluminium wire rod coperated with Ls Group etc. Seven big series, more than 300 varieties, nearly. 2000. Specifications.

Dayuan Cable is committed to "all for customer satisfaction", comprehensively implements the ISO9001 quality system, effectively guarantees the enterprise competitiveness in the market. Short-term goal for company's development is giving full play to the advantages of talents, technology and equipment, improving product quality, building the "Da Yuan" brand in the domestic, making the product into the national grid, Its farther goal is carrying out the strategy of sustainable development, making the "quality, price, service" well done to step into the international market, setting up national cable brand, and achieving the leapfrog development of the enterprise by virtue of producing higher level of series cable products.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
