0.6/1kv, 4 Core, Cu / XLPE / Swa / PVC / PE Power Cable

Name: 0.6/1kv, 4 Core, Cu / XLPE / Swa / PVC / PE Power Cable
Brand: all-electronics-online.com
SKU: 710994062
Availability: InStock
Rating: 4.5 (103 reviews)

Price:	US $ 0.01-0.1km
Min Order:	1km
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	4 core, cu/xlpe/swa/pvc/pe cable-B2-2
Name:	4 Core Cable
Application:	Power Station
Current:	AC Cable
Insulation Material:	XLPE
Certification:	CCC
Voltage:	Low Voltage
Model:	4 Core Swa Cable
Brand:	Yifang Cable

Product Description

Product Description

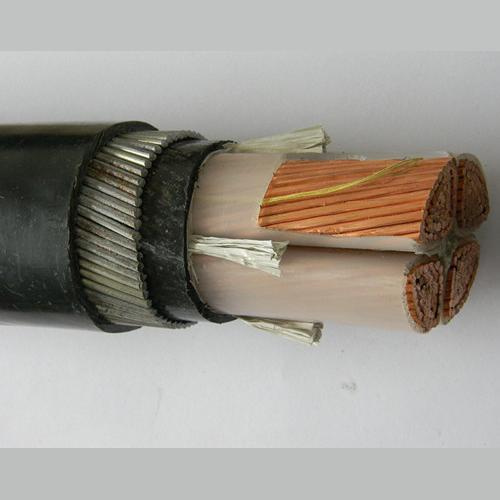

4 core ,Copper Conductor, XLPE Insulated, PE Sheathed ,SWA Armoured Power Cable

Specs of YJV33:

4 core ,cu conductor, xlpe insulated Steel Wire Armoured power cable 0.6/1kv YJV33

Nominal cross-section mm2	Nominal thickness of Insulation mm	Nominal Armouring Size(mm)	Appox.Overall Diameter &Weight
		Nominal Armouring Size(mm)
		Fine Steel Wire	YJV33		Recommending current Rating(A)
		Dia.meter mm	Over-Dia.meter mm	Weight Kg/km	In ground	In Air
1.5	0.7	1.6	17.0	556	28	21
2.5	0.7	1.6	18.0	623	38	30
4	0.7	1.6	19.1	728	50	49
6	0.7	1.6	20.3	871	65	55
10	0.7	1.6	22.3	1098	89	78
16	0.7	1.6	24.5	1416	115	105
25	0.9	1.6	27.5	1879	150	140
35	0.9	1.6	29.5	2315	180	170
50	1.0	2.0	32.9	3118	215	205
70	1.1	2.0	36.7	4094	265	260
95	1.1	2.0	40.5	5243	315	320
120	1.2	2.5	45.3	6763	360	370
150	1.4	2.5	50.0	8154	405	430
185	1.6	2.5	54.2	9848	460	490
240	1.7	2.5	60.4	12430	530	580
300	1.8	2.5	65.7	15022	590	660
400	2.0	3.15	74.2	19624	670	750

welcome to our factory . our web site :www.yifangcable.com

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
