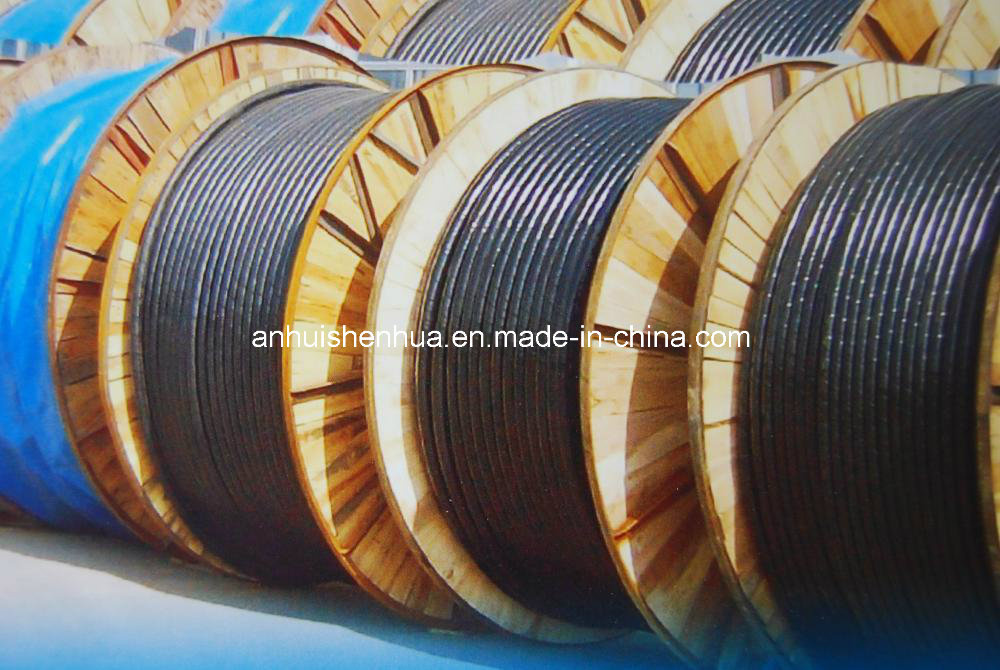

0.6/1kv Copper or Aluminum Alloy Power Cable

Name: 0.6/1kv Copper or Aluminum Alloy Power Cable
Brand: all-electronics-online.com
SKU: 753424225
Availability: InStock
Rating: 4.6 (110 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB
Min Order:	500/Meter
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	According to Your Requirements
Color:	According to Your Requirements
Voltage:	Low and Medium Voltage Cable
Insulation Material:	XLPE
Current:	DC Cable
Application:	Overhead
Brand:	Shenhua

Product Description

Quick Details

Place of Origin: Anhui, China (Mainland)
Brand Name: shenhua
Type: Insulated
Application: Overhead
Conductor Material: Copper
Conductor Type: Solid
Insulation Material: PVC
insulation: pvc/xlpe

Packaging & Delivery

Packaging Details:	1000m/drum/roll
Delivery Detail:	20days

Specifications

1.SWA armoured cable
2.Voltage:0.6/1KV
3.Size:1.5-300mm2
4.Competitive price

Specifications

1.Competitive price,good payment
2.High quality conductor ,PVC or XLPE insulation
3.60 years OEM
4.Free sample and desgin

Cable Instruction:

Specification: Copper/Aluminum Conductor PVC/XLPE Insulated PVC Sheathed Cable
Standard: IEC60502, BS6346
Voltage: 0.6/1KV,

Conductor: Copper/Aluminum Conductor
Insulation: PVC/XLPE Insulated
Application: For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces, single core cable in magnetic duct is not permissible.
Package: Wooden Drum Package or Iron-wooden drum

Standard Data

Type	Discription	Rated Voltage (KV)	Number of cores	Nominal Cross-sectional Area (mm2)
Type	Discription	Rated Voltage (KV)	Number of cores	Cu	Al
VV/YJV VLV/YJLV	VV/YJV: Copper conductor PVC/XLPE insulated and PVC sheathed powercables. VLV/YJLV: Aluminium conductor PVC insulated and PVC sheathed power cables.	0.6/1KV	1	1.5~1200	2.5~1200
			2	1.5~300	2.5~300
			3	1.5~300	2.5~300
			4	1.5~300	2.5~300
			5	1.5~300	2.5~300
			3+1	1.5~300	2.5~300
			3+2	1.5~300	2.5~300
			4+1	1.5~300	2.5~300
VV22 / YJV22 VLV22 / YJLV22	VV22/YJV22 : Copper conductor PVC insulated and PVC sheathed steel tap armoured power cables. VV22/YJV22 : Aluminium conductor PVC insulated and PVC sheathed steel tap armoured power cables.	0.6/1KV	1	10~500	10~500
			2	1.5~300	2.5~300
			3	1.5~300	2.5~300
			4	1.5~300	2.5~300
			5	1.5~300	2.5~300
			3+1	1.5~300	2.5~300
			3+2	1.5~300	2.5~300
			4+1	1.5~300	2.5~300
VV32 / YJV32 VLV32 / YJLV32	VV32/YJV32 : Copper conductor PVC insulated and PVC sheathed steel wire armoured power cables. VLV32/YJV32 : Aluminium conductor PVC insulated and PVC sheathed steel wire armoured power cables.	0.6/1KV	1	50~500	50~500
			2	35~300	50~185
			3	25~300	35~300
			4	25~300	35~300
			5	25~240	35~240
			3+1	25~300	35~300
			3+2	25~300	35~300
			4+1	25~240	35~240

power cable 0.6/1kv low voltage
