0.6/1kv Icea Standard Triplex Service Drop Overhead Cable
Price: |
US $ 0.1/Meter |
Min Order: |
3000/Meter |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Prod Model: |
ABC-WLL010 |
ABC: |
Aerial Bundled Cable |
Cross Section Area: |
1.5-800mm2 |
Standard: |
IEC, ASTM, BS, DIN, CSA, etc |
Conductor: |
Aluminium/Aluminium Alloy/ACSR |
Conductor Shape: |
Circular Core or Compact Core |
Type Of Conductor: |
Stranded |
Insulation: |
XLPE/PE/PVC |
Jacket: |
No Jacket |
Cable Brand: |
Dayuan |
Manufacturer Experience: |
Since 2001 |
Type: |
Insulated |
Conductor Type: |
Stranded |
Application: |
Overhead |
Conductor Material: |
Aluminum |
Insulation Material: |
XLPE |
Certification: |
Ohsas, TUV |
Sheath Material: |
No Jacket |
Brand: |
Dayuan |
Product Description

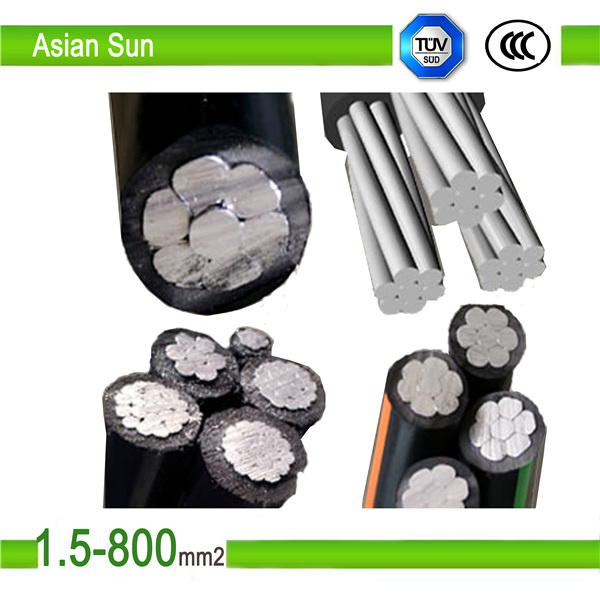

Aluminium Core XLPE/PE/PVC Insulated Aerial Bunched Cable

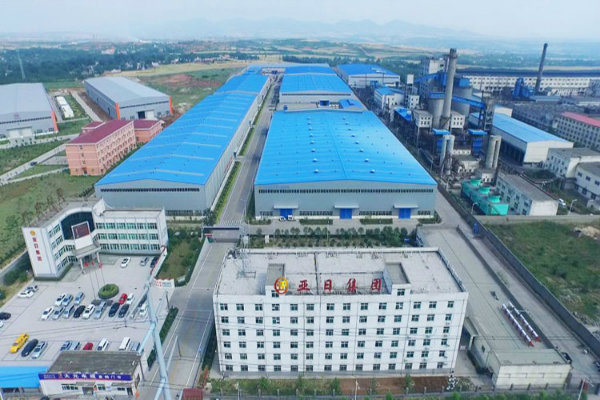

Company InformationLuoyang Asian Sun Group has developed into a integrated group company since established in 2006.covering more than10 production workshops with about 210,000 square meters. At present, Asian Sun Group possesses over 900 employeesand 1080 million fixed assets

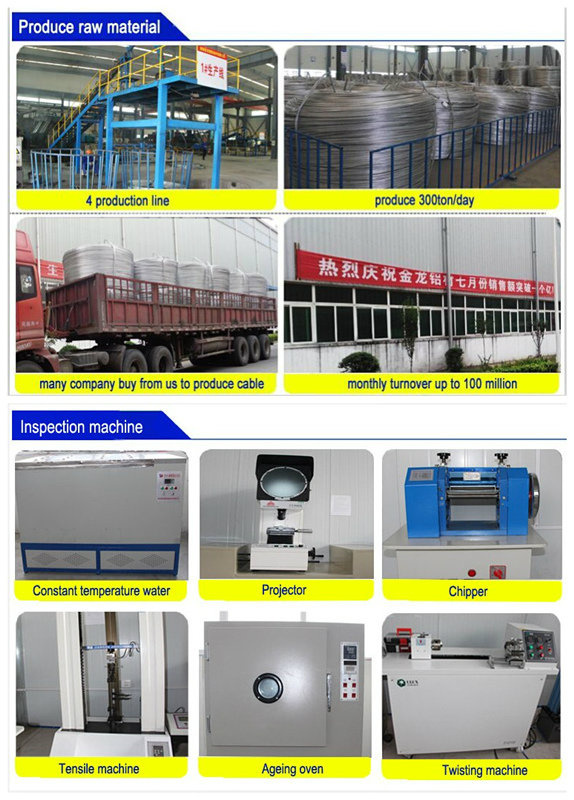

We have one big workshop to produce the raw material: aluminium wire rod anout 800ton/day, many company buy it from us to produce various cable so that our monthly turnover of it has up to 100 million! So our price is very competitive and can gurantee the delivery time!

Product Description
Applications of twisted abc cable
Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.
code | Rated Voltage | | Type | ABC |
AWG or kcmil | Structure |
Neutral Wire (ACSR) | Phase Wire | | Cable | Cable |
Steel | Aluminium | Conductor | Aluminium | Dia | | Dia | Dia | kg/km |
No. | Dia | No. | Dia | Dia | No. | Dia | mm |
Morochuca | 3*6AWG+1*6AWG | 1 | 1.68 | 6 | 1.68 | 5.04 | 1 | 4.11 | 4.11 | 1.14 | 6.40 | 14.62 | 221 |
Chola | 3*6AWG+1*6AWG | 1 | 1.68 | 6 | 1.68 | 5.04 | 7 | 1.55 | 4.66 | 1.14 | 6.95 | 15.62 | 227 |
Morgan | 3*4AWG+1*4AWG | 1 | 2.12 | 6 | 2.12 | 6.36 | 1 | 5.19 | 5.19 | 1.14 | 7.48 | 17.37 | 331 |
Hackney | 3*4AWG+1*4AWG | 1 | 2.12 | 6 | 2.12 | 6.36 | 7 | 1.96 | 5.88 | 1.14 | 8.17 | 18.62 | 338 |
Palomino | 3*2AWG+1*2AWG | 1 | 2.67 | 6 | 2.67 | 8.02 | 7 | 2.47 | 7.42 | 1.14 | 9.71 | 22.41 | 511 |
Costena | 3*1/0AWG+1*1/0AWG | 1 | 3.37 | 6 | 3.37 | 10.11 | 19 | 1.89 | 9.47 | 1.52 | 12.52 | 28.77 | 824 |
Grullo | 3*2/0AWG+1*2/0AWG | 1 | 3.78 | 6 | 3.78 | 11.35 | 19 | 2.13 | 10.63 | 1.52 | 13.68 | 31.61 | 1015 |
Suffolk | 3*3/0AWG+1*3/0AWG | 1 | 4.25 | 6 | 4.25 | 12.74 | 19 | 2.39 | 11.94 | 1.52 | 14.99 | 34.82 | 1254 |
Appaloosa | 3*4/0AWG+1*4/0AWG | 1 | 4.77 | 6 | 4.77 | 14.31 | 19 | 2.68 | 13.40 | 1.52 | 16.45 | 38.42 | 1554 |
Broneo | 3*336.4+1*336.4 | 1 | 3.47 | 18 | 3.47 | 17.36 | 19 | 3.38 | 16.90 | 2.03 | 20.96 | 48.43 | 2321 |
Gelding | 3*336.4+1*4/0AWG | 1 | 4.77 | 6 | 4.77 | 14.31 | 19 | 3.38 | 16.90 | 2.03 | 20.96 | 46.59 | 2221 |

Packaging & Shipping
1) Wrapped in rolls/coils/rings with Plastic film for small diameter cables like building wires.
2) Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
3)Treated wooden/steel-wooden drums for big diameter cables.
Customer Coming

Welcome come our factory at any time! we trust you will like it!
Certificate: SECRI, ISO 9001, ISO 14001, OHSAS 18001,TUV,CE,CB,CCC etc.

We test your goods before delivery to ensure the quality!
Contact us
Lydia Wang
Department sale manager
International Trade Department
Luoyang Dayuan Cable Factory Co., Ltd
=================================
Tel: +86-379-69991587
Mobile: + 86-13271534528
Web: http://www.yr-group.cn
Alibaba Showroom: http://lyyari.en.alibaba.com/
=================================
Luoyang Da Yuan Cable Factory Co., Ltd. is founded in the Sept. 2011 with registered fund 200 million RMB which is the subsidiary of Luoyang Asian Sun Industrial Group Co., Ltd. We can produce all kinds of high and low voltage electric wire and cables, and have been one of the new technology development enterprise made scientific, industry, trading as a whole. Main products include power cables, PV cable, control cables, branching cables, aerial cables, Most important thing is that we also produce the raw material-aluminium wire rod coperated with Ls Group etc. Seven big series, more than 300 varieties, nearly. 2000. Specifications.
Dayuan Cable is committed to "all for customer satisfaction", comprehensively implements the ISO9001 quality system, effectively guarantees the enterprise competitiveness in the market. Short-term goal for company's development is giving full play to the advantages of talents, technology and equipment, improving product quality, building the "Da Yuan" brand in the domestic, making the product into the national grid, Its farther goal is carrying out the strategy of sustainable development, making the "quality, price, service" well done to step into the international market, setting up national cable brand, and achieving the leapfrog development of the enterprise by virtue of producing higher level of series cable products.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
