0.6/1kv Nycwy Power Cable 4X25/16mm2

Name: 0.6/1kv Nycwy Power Cable 4X25/16mm2
Brand: all-electronics-online.com
SKU: 711383442
Availability: InStock
Rating: 4.8 (86 reviews)

Price:	US $ 0.05/Meter
Min Order:	500/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJSV
Color:	Black or Others
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	PVC
Certification:	CCC
Wire Core Material:	Copper or Aluminum
Model:	Yjsv
Brand:	Yifang

Product Description

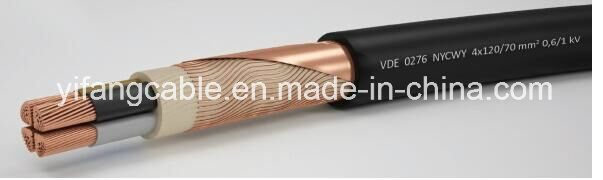

Black NYCWY Power Cable 4X25/16mm2

Power cable NYCWY acc.to VDE 0276-603

Conductor material: Bare copper
Conductor construction: Class 1,from 25sqmm class 2
insulation:PVC
Concentric conductor: Cu wire
Sheathing material: PVC
Colour of outer sheath: Black
Meter mark: Yes
Flame retardant: IEC60332-1
UV-resistant: Yes
maximum temperature at conductor 70 degree
Max operating temperature fixed 70 degree
temperature,moved/during installtion: -5~+70degree
Nominal voltage U0: 600V
Nominal voltage U: 1KV
maximum permitted 1.2KV
operating voltage in 3phase system test voltage: 4KV
core identification: Colours acc,VDE0293
Temperature range: During installation ;-5 degree to +50 degree
Fixed installation:-40 degree to +70 degree

Core identification

Number of cores	Colours
1	black
2	blue,brown
3	brown,black,grey
4	blue,brown,black,grey
5	blue,brown,black,grey,black

Technical characteristics NYCWY

Number of cores and mm2 per conductor	Outer diameter mm	Copper index kg/km	Weight Kg/km
2x10re/10	19	312	610
3x10re/10	20	408	775
4x10re/10	21	504	897
3X16re/16	22	543	1066
4x16re/16	24	796	1250
3x25rm/25	26	1003	1584
4x25rm/16	28	1142	1822
3x35sm/35	26	1402	1710
4x35sm/16	28	1142	1822
3x35sm/35	26	1402	1710
4x35sm/16	29	1526	2146
3x50sm/50	30	2000	2368
4x50sm/25	33	2203	3031
4x70sm/35	38	3296	4256
3x95sm/50	38	3296	4256
3x95sm/95	39	3791	4600
4x95sm/50	43	4208	5364
3x120sm/70	41	4236	5314
4x120sm/70	46	5388	6748
3x150sm/70	45	5100	6344
4x150sm/70	51	6540	8159
3x185sm/95	50	6383	8054

Bare copper wire conductor
R= round conductor form
S=sectorial conductor form
E=single wire conductor
M=multi wire conductor
Core insulation: Based on PVC
Filling compound over the core assembly

Note: Unless specified otherwise,the shown produce vaules are nominal vaules. Detailled values are avaliable uppn request

copper price basis: excluding copper.refere to catalogue appendix for the definition and calculation of copper related surcharges.

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
