0.6/1kv Power Cable

Name: 0.6/1kv Power Cable
Brand: all-electronics-online.com
SKU: 687657632
Availability: InStock
Rating: 4.3 (27 reviews)

Price:	US $ 1.5/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	200/Meter
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	0.6/1kv power Cable B1-44
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cores:	Multi Cores
Standards:	IEC/Bs/Ieca
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Certification:	VDE
Insulation Material:	XLPE / PVC

Product Description

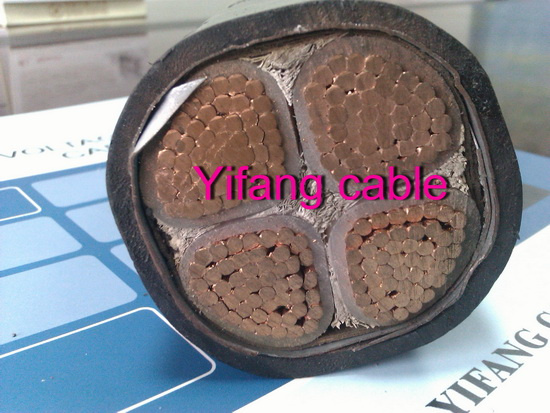

0.6/1KV power cable

Application and Description:

0.6/1KV, copper conductor, XLPE/PVC insulated power cable is for Iindustrial wiring and mains distribution. Can be laid direct in the ground, or in ducts, clipped to surface, on trays or in free air. May be embedded in concrete.

Standards: IEC 60502 / BS 5467 / DIN / ICEA

Design

Conductor: Stranded circular copper - class 2 according to IEC 60228 / BS EN 60228: 2005

Cores: 1C, 2C, 3C, 4C, 5C, 3C+1E, 4C+1E, 3C+2E

Insulation: XLPE / PVC

Filler: Laying up with fillers

Inner sheath: PVC / LSZH

Armour: Steel or steel tapes ( aluminium wires or aluminum tape can be customized)

Outer sheath: PVC / LSZH

Rated Voltage Uo/U (Um): 0.6/1 KV

Range of Nominal cross section: 1.5 mm2 ~ 630 mm2

8AWG~4/0AWG, 300MCM, 500MCM, 750MCM, 1000MCM

Mechanical characteristics:

Mechanical resistance to impacts: Excellent

Cable flexibility: Rigid

Usage characteristics:

Max. Conductor temperature in service: 70° C(PVC insulation), 90° C(XLPE insulation)

Short-circuit max. Conductor temperature: 250° C

Operating temperature, range: -25...60° C

Weather resistance: Very good

Flame retardant: C2, NF C 32-070

Chemical resistance: Accidental

Water proof: Intermittent

Packaging: Cut to length

Dear friends, we can design and produce power cable with International and national standards according to your request.

Type	Description	Number of cores	Nominal cross section of conductor
YJV32	CU/XLPE/SWA/PVC Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~1000mm2
YJLV32	AL/XLPE/SWA/PVC Power Cable
YJV72	CU/XLPE/Non-magnetic SWA or AWA/PVC Power Cable	1	1.5~1000mm2
YJLV72	AL/XLPE/Non-magnetic SWA or AWA/PVC Power Cable
YJV33	CU/XLPE/SWA/PE Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~1000mm2
YJLV33	AL/XLPE/SWA/PE Power Cable
Z-YJV32	CU/XLPE/SWA Flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~1000mm2
Z-YJLV32	AL/XLPE/SWA Flame-retardant Power Cable
WDZ-YJY33	CU/XLPE/SWA Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) Flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~1000mm2
WDZ-YJLY33	AL/XLPE/SWA Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) Flame-retardant Power Cable
N-YJV32	CU/XLPE/SWA Fire-resistant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~1000mm2

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
