0.6/1kv Voltage Copper Conductor Cable

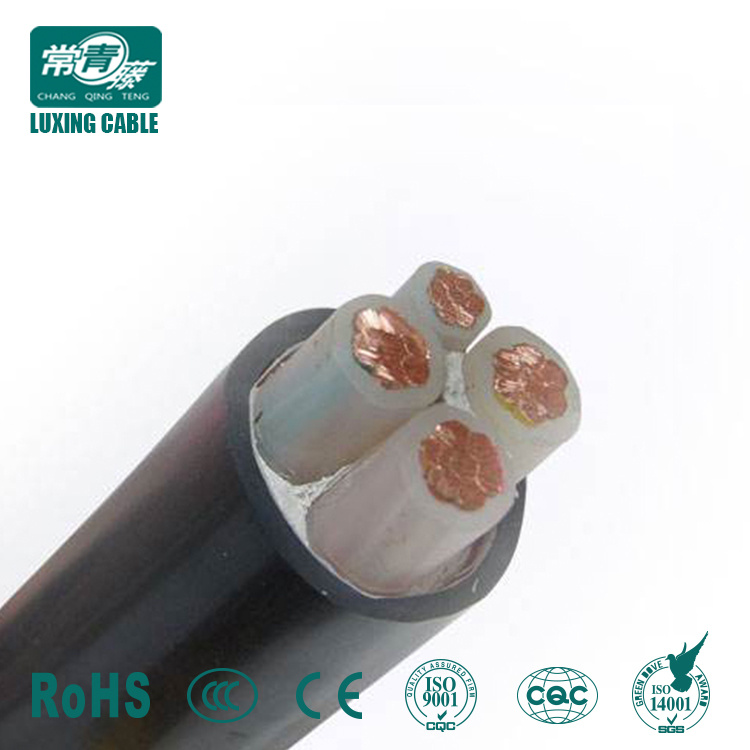

Name: 0.6/1kv Voltage Copper Conductor Cable
Brand: all-electronics-online.com
SKU: 733570632
Availability: InStock
Rating: 4.3 (142 reviews)

Price:	US $ 0.1-30/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	0.6/1kV Voltage Copper Conductor Cable
Product Name:	0.6/1kv Copper Power Cable
Rated Voltage:	0.6/1 Kv
Conductor:	Copper
Insulation:	XLPE / PVC
Sheath:	PVC
Core Number:	1 2 3 4 5
Color Color:	Red , Yellow , Blue ,Green or as Your Requirement
Origine:	Shandong , China
Packaging:	Wooden Drum
Shipping:	3-10 Working Days
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	VDE
Model:	XLPE Power Cable
Brand:	Chan Qing Teng

Product Description

Standard

The product is manufactured according to the standard of GB12706,IEC60502,and BS6346, VDE, AS/NZS,
UL, etc or as customer's request.

Usage:

The product is suitable for use in power distribution lines or fixed installations with rated power- frequency
voltage up to and including 1Kv, AC 50Hz.

Application

1,Operating Features:

The maximum conductor operating temperature: 90°C
During short circuit (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not
be above 250°C
Environment temperature should be no lower than 0°C for laying the cable.

2,Bending Radius of the Cable:
Single Core Cable: Non Armored Cable 20D, Armored Cable 15D
Cores Cable: Non Armored Cable 15D, Armored Cable 12D.
Remarks: D means practical external diameter of the cable

Conductor		Designation
Copper	Aluminum	Designation
YJV	YJLV	XLPE insulated ,PVC sheathed power cable
YJY	YJLY	XLPE insulated ,PE sheathed power cable
YJV22	YJLV22	XLPE insulated , steel tape armored , PVC sheathed power cable
YJV23	YJLV23	XLPE insulated , steel tape armored ,PE sheathed power cable
YJV32	YJLV32	XLPE insulated , small gauge steel wire armored, PVC sheathed power cable
YJV33	YJLV33	XLPE insulated ,small gauge steel wire armored, PE sheathed power cable
YJV42	YJLV42	XLPE insulated ,heavy steel wire armored, PVC sheathed power cable
YJV43	YJLV43	XLPE insulated ,heavy steel wire, PE sheathed power cable

Designation	Number of core	Rated Voltage (kV)
		0.6/1
		Nom.cross-section of conductor (mm2)
YJV YJLV YJY YJLY	1	1.5-800
YJV32 YJLV32 YJY33 YJLY33		2.5-1000
YJV42 YJLV42 YJY43 YJLY43		10-1000
YJV YJLV YJY YJLY	3	1.5-300
YJV22 YJLV22 YJY23 YJLY23		4-300
YJV32 YJLV32 YJY33 YJLY33		4-300
YJV42 YJLV42 YJY43 YJLY43		25-300
YJV YJLV YJY YJLY	2	1.5-185
YJV22 YJLV22 YJY23 YJLY23		4-185
YJV32 YJLV32 YJY33 YJLY33		4-185
YJV42 YJLV42 YJY43 YJLY43		25-185
YJV YJLV YJY YJLY	3+1	4-300
YJV22 YJLV22 YJY23 YJLY23
YJV32 YJLV32 YJY33 YJLY33
YJV42 YJLV42 YJY43 YJLY43		25-300
YJV YJLV YJY YJLY	4	1.5-300
YJV22 YJLV22 YJY23 YJLY23		4-300
YJV32 YJLV32 YJY33 YJLY33		4-300
YJV42 YJLV42 YJY43 YJLY43		25-300
YJV YJLV YJY YJLY	4+1	4-300
YJV22 YJLV22 YJY23 YJLY23
YJV32 YJLV32 YJY33 YJLY33
YJV42 YJLV42 YJY43 YJLY43		25-300
YJV YJLV YJY YJLY	3+2	4-300
YJV22 YJLV22 YJY23 YJLY23
YJV32 YJLV32 YJY33 YJLY33
YJV42 YJLV42 YJY43 YJLY43		25-300
YJV YJLV YJY YJLY	5	4-300
YJV22 YJLV22 YJY23 YJLY23
YJV32 YJLV32 YJY33 YJLY33
YJV42 YJLV42 YJY43 YJLY43		25-300

We also can manufacture many other specifications, if you have interest, welcome your enquiry!
Everything we do is trying to make your business more successful.

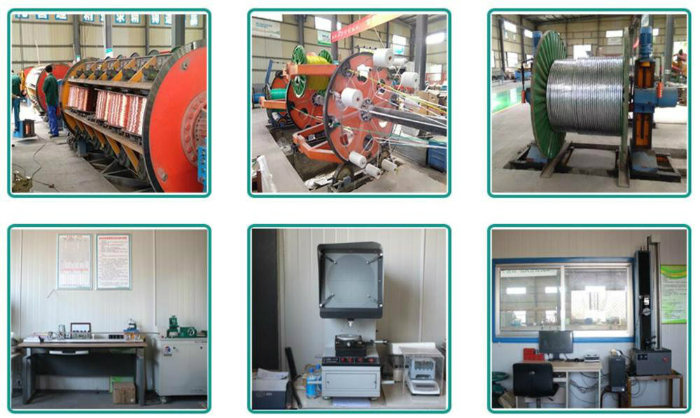

Luxing Factory : our production base

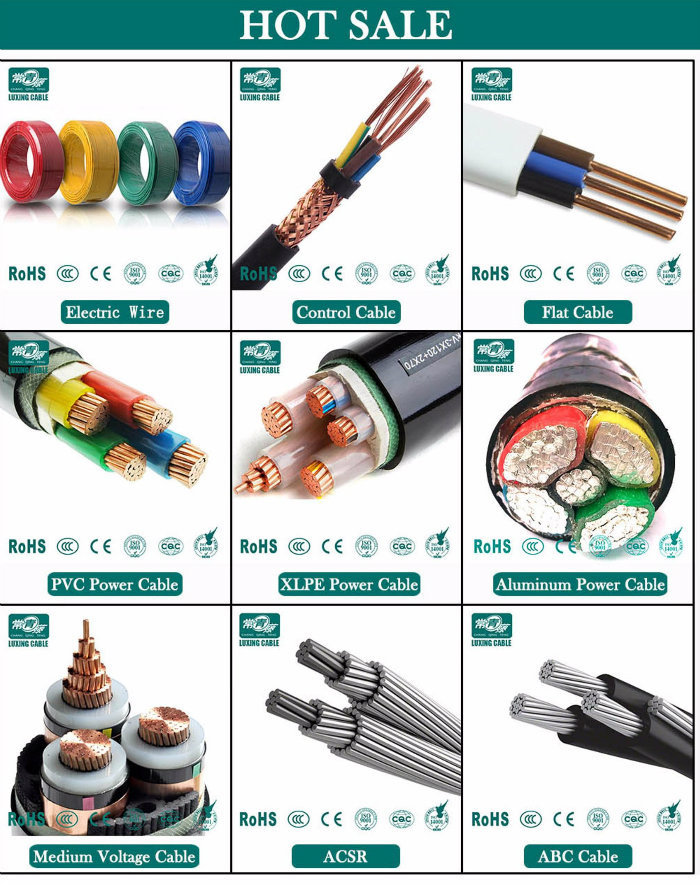

Luxing Cable Mainly Produce

300/500V 450/750V electrical wire	AAC conductor
600/1000V PVC insulated cable	AAAC conductor
600/1000V XLPE insulated cable	ACSR conductor
1.8/3KV to 26/35KV power cable	OPGW
Armored underground cable	ABC cable
Control cable and instrumentation cables	Rubber cable

Certificates

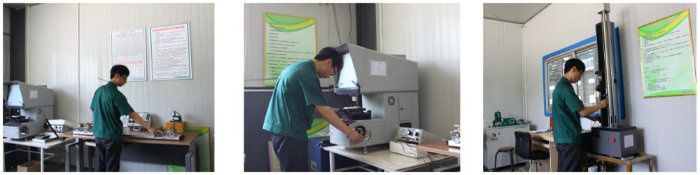

Strict Quality Test

Packaging & Shipping

Why choose us

1.18 years manufacturing experience

2.Professional international trade team

3.Delivery on time

4.Factory low price and high quality based on advanced technology and high work efficiency

Contact us

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
