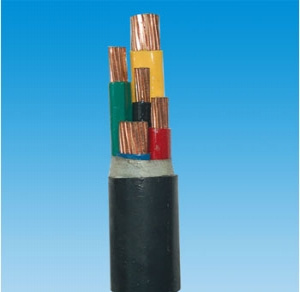

0.6/1kv XLPE Insulated Multicore Copper Power Cable

Name: 0.6/1kv XLPE Insulated Multicore Copper Power Cable
Brand: all-electronics-online.com
SKU: 728760255
Availability: InStock
Rating: 4.6 (86 reviews)

Price:	US $ 0.1/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LV power cable B2-16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour:	XLPE Insulated Multicore Copper Power Cable
Application:	Industrial
Voltage:	Low and Medium Voltage Cable
Current:	AC Cable
Insulation Material:	XLPE
Certification:	CCC
Wire Core Material:	Copper
Brand:	Yifang

Product Description

The PVC insulated power cable and fire resistant cable is suitable for fixed laying in power transmission and distribution lines with A. C. 50Hz and voltage rating of up to or including 6KV.

The construction of the cable:
Copper or aluminum conductor
PVC or PE insulated
Steel tape or Steel wire armoured or not
PVC or PE sheath

Standards: IEC, BS ASTM DIN CAS AS and so on

Other special charactreistics: Design or manufactured according to customer's special requirement

Nominal Cross Section mm 2	Main cores	2.5	4	6	10	16	25	35	50
Nominal Cross Section mm 2	Neutral cores	1.5	2.5	4	6	10	16	16	25
Nominal Cross Section mm 2	Main cores	70	95	120	150	185	240	300	400
Nominal Cross Section mm 2	Neutral cores	35	50	70	70	95	120	150	185

Nominal Cross Section mm 2	1.5	2.5	4	6	10	16	25
Cu core Ohm/km	12.1	7.41	4.61	3.08	1.83	1.15	0.727
Al core Ohm/km	18.1	12.1	7.41	4.61	3.08	1.91	1.2
Nominal Cross Section mm 2	35	50	70	95	120	150	185
Cu core Ohm/km	0.524	0.387	0.268	0.193	0.153	0.124	0.0991
Al core Ohm/km	0.868	0.641	0.443	0.32	0.253	0.206	0.164
Nominal Cross Section mm 2	240	300	400	500	630	800	1000
Cu core Ohm/km	0.0754	0.06	0.047	0.0366	0.0283	0.0221	0.0176
Al core Ohm/km	0.125	0.1	0.0778	0.0605	0.0469	0.0367	0.0291

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
