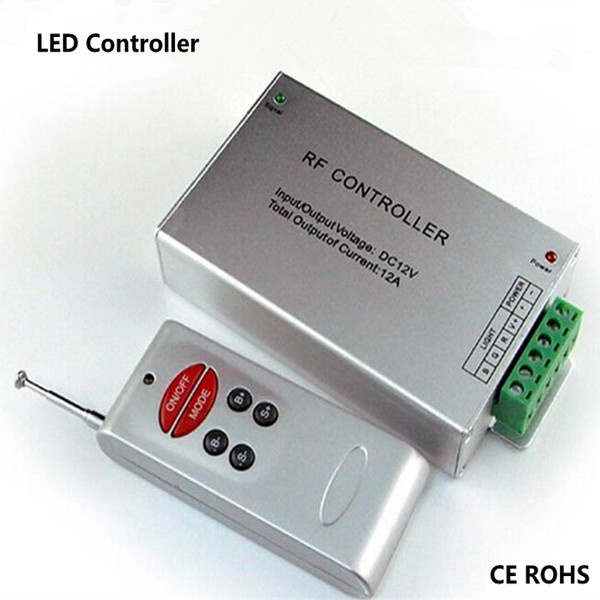

6 Keys Aluminum Shell LED Controller RF Double PCB

Prod Model:	LYD-RFL6
Connection Mode:	Common Anode
Static Power Consumption:	<1W
Output:	3 CMOS Open Drain Output
Output Current:	<4A/CH or <8A/CH
Application:	Toys
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Battery Type:	AAA Battery
Voltage:	DC5V, 12V~24voptional
Material:	Iron

Product Description

Basic Info

place of origin:	Shenzhen.China
output:	3 CMOS Open drain Output
output current:	<4A/CH or <8A/CH (optional)
RF frequency:	433.92Mhz
Connection mode:	Common anode
Static power consumption :	<1w
Net weight:	150g
Brand name:	louita

Product Description

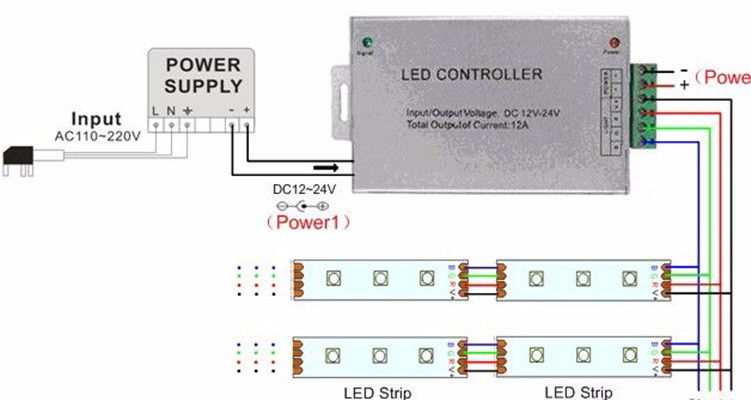

This Aluminum RF 6 Keys RGB controller adopted the advanced computer control chip. Its mainly used to controlled all kinds of constant voltage led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with easy connection,simple manipulation and power off memory function.User can choose the 7 color jump, fade,fash mode ,and the lights brightness are adjustable according to the user actual requirement.

Technical Parameters:
Working temperature:-20-60ºC
Input voltage:DC12~24V
Output:3 circuit
Connection mode:Common anode
Controller size:L130×W65×H25mm
package size:L135×W80×H54mm
Net weight:185g
Gross weight:251g
Static power consumption:<1W
Output current:<4A/ch  or <8A/ch (optional)
Output power: 12V/4A < 144W;12V/8A< 288W;24V/4A< 288W;24V/8A< 576W

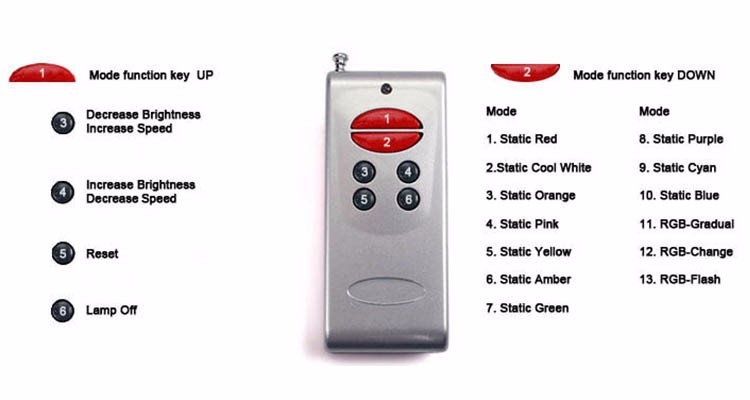

Press each time, the green light flash one time, indicating that has entered the next state.
Standard color changes as follows:


No	Patterns	Remarks	No	Patterns	Remarks
1	Static red	Brightness is adjustable, Speed is unadjustable.	12	Red stroboflash	Speed and Brightness are adjustable
2	Static blue		13	Blue stroboflash
3	Static purple		14	Purple stroboflash
4	Static green		15	Green stroboflash
5	Static yellow		16	Yellow stroboflash
6	Static cyan		17	Cycan stroboflash
7	Static white		18	White stroboflash
8	Three-color jumpy changing	Speed and brightness are adjustable	19	R/B cross-fade	Speed is adjustable, brightness is unadjustable
9	Seven-color jumpy changing		20	B/G cross-fade
10	Three-color gradual changing	Speed is adjustable, brightness is unadjustable	21	G/R cross-fade
11	Seven-color gradual changing
