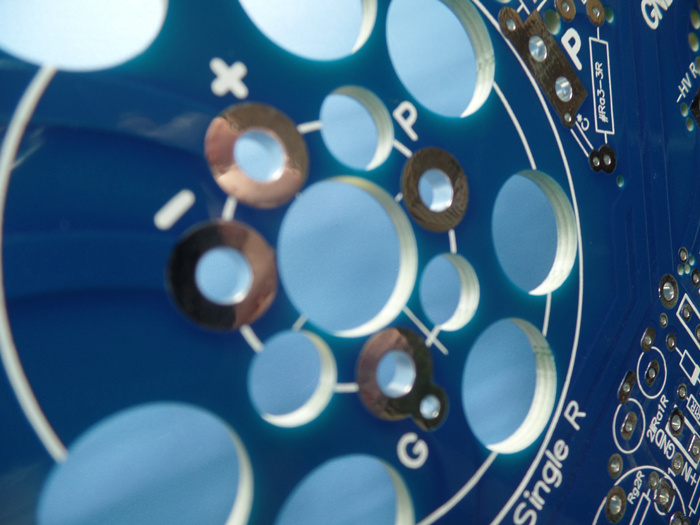

6 Oz PCB Board Manufacture 3.2mm Thick with Blue Mask
| Price: |
US $ 0.92/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-206-V2.06 |
| Final Foil External: |
6 Oz |
| Final Height Of PCB: |
3.2mm ±0.32 |
| Surface Finish: |
Hot Air Soldering Leveling(HASL),Lead Free |
| Solder Mask Color: |
Blue |
| Colour Of Component Legend: |
White |
| Minimum Trace And Space: |
14 Mil/29 Mil |
| Minimum / Maximum Holes: |
0.55/15.0mm |
| Via: |
Plated Through Hole(Pth) |
| Board Plating: |
0.0030" |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

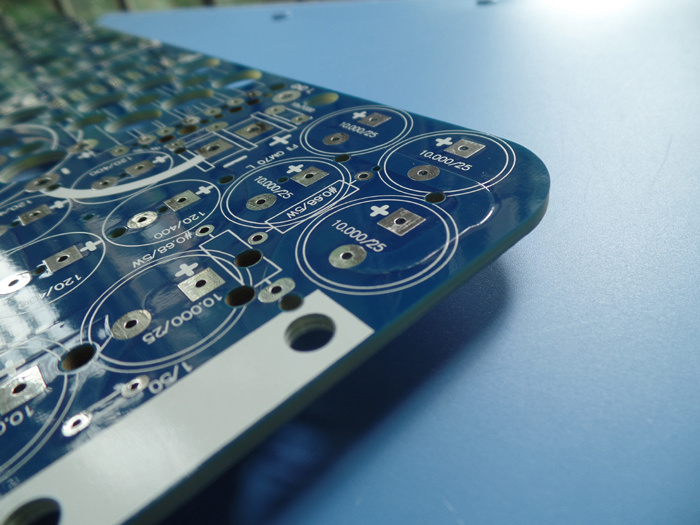

6 oz Heavy Copper PCB Double Sided PCB Manufacture 3.2mm Thick With Blue Mask HASL Pb Free in Switching Power Supply
Commodity Introduction This is a type of FR-4 PCB for the application of Switching Power Supply. It's a 2 layer board at
3.2mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Kuangshun and
Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels
are packed separately.
Parameters & Data Sheet| PCB SIZE | 79 x 32mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB, 2 Layer PCB |
| Surface Mount Components | NO |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 216um(6oz)+plate TOP layer |
| FR-4 2.8mm |
| copper ------- 216um(6oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 14 mil/29 mil |
| Minimum / Maximum Holes: | 0.55/15.0mm |
| Number of Different Holes: | 12 |
| Number of Drill Holes: | 431 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-140 TG>135, er<5.4 |
| Final foil external: | 6oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 3.2mm ±0.32 |
| PLATING AND COATING | |
| Surface Finish | Hot air soldering leveling(HASL),
lead free, Sn>=2.54µm |
| Solder Mask Apply To: | Top and Bottom, 12micron Minimum |
| Solder Mask Color: | Blue, KSM-6189BL04, Kuangshun supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Power Inverters
Switching Power Supply
Solar Inverter
Invertor
Grid Tie Inverter
Tattoo Power Supply |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Company information
Bicheng Enterprise Limited was founded in Shenzhen, China in 2003, is a professional PCB export
enterprise. We have established a good relationship of cooperation with well-known enterprises in
the same industry. Our PCB products range from fiberglass PCB, high frequency PCB to metal
core PCB and ceramic PCB's. This is a unique printed circuit board supplier and export enterprise.
She has groups of skilled manufacturing facilities just like the experienced football players in the
football field and every batch of shipment is like a beautiful gift transmitted to your hands.
Since heavy copper PCB can withstand high current and have good heat dissipation, it can be
better met the demands of the market of power converter module boards which are used in
automobile electronics and electric equipment.
Features:
a) The copper weight of the track ≥102.9μm
b) The most designs are plane winding coil of wire
PCB's
Currently our heavy copper PCB's are mainly 6-12 layers; Copper weight ranging from 102.9 to
420μm (3oz to 12oz) Aluminum PCB 10oz Ceramic PCB 10oz
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
