| Prod Model: |
GYFTY 4 Core Multimode Fiber Optic Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
GYFTY 4 Core Multimode Fiber Optic Cable |
| Fiber Count: |
4 Core Multimode Fiber Optic Cable |
| Brand Name Of Fiber: |
Corning ,Yofc,Draka, Fujikura...as Your Requiremen |
| Loose Tube Material: |
PBT |
| Loose Tube Filling Material: |
Jelly |
| Color Of Loose Tube: |
Orange,Green , Brown,Red etc |
| Central Strength Member: |
Non-Metallic |
| Strength Material: |
Glass or Aramid Yarn |
| Core Moisture Protection Methodology: |
Water Blocking Tape or Filling Compound |
| Installation Style: |
Aerial |
| Application: |
4 Core Multimode Fiber Optic Cable |
| Certification: |
Reach,Tlc,etc |
| Type: |
Single-Mode or Multimode Fiber |
| Connection Structure: |
4 Core Multimode Fiber Optic Cable |
| Allowed Lateral Pressure: |
Short Term 1500n; Long Term 600n |
| Allowed Tensile Strength: |
Short Term 1000n; Long Term 300n |
| Core: |
2-288 Core |
| Brand: |
Tw-Scie or OEM |
| Sheath Material: |
MDPE / HDPE / LSZH PE |
Product Description
GYFTY 60/48/24/12/8/6/2/4 Core Multimode Fiber Optic Cable Details:
Product Description
This GYFTY 60/48/24/12/8/6/2/4 Core Multimode Fiber Optic Cable are suitable for outdoor aerieal installation.Light armored structure with Amaid Yarn messager makes GYFTY 60/48/24/12/8/6/2/4 Core Multimode Fiber Optic Cable reduce itself gravity.
60/48/24/12/8/6/2/4 Core Multimode Fiber Optic Cable Technical data:
Technical data: |
| Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min.Bending radius(mm) | Tension (N) | Crash loading (N/100mm) |
| Static | Dynamic | Short term | Long term | Short term | Long term |
| 2-36 | 10.4 | 90 | 10 times O.D. | 20 times O.D. | 1500 | 600 | 1000 | 300 |
| 38-60 | 10.2 | 110 |
| 62-72 | 11.7 | 115 |
| 74-96 | 13.4 | 150 |
| 98-120 | 15.0 | 190 |
| 122-144 | 16.6 | 230 |
| 146-216 | 16.9 | 240 |
| 218-240 | 19.3 | 305 |
| 242-288 | 21.5 | 375 |

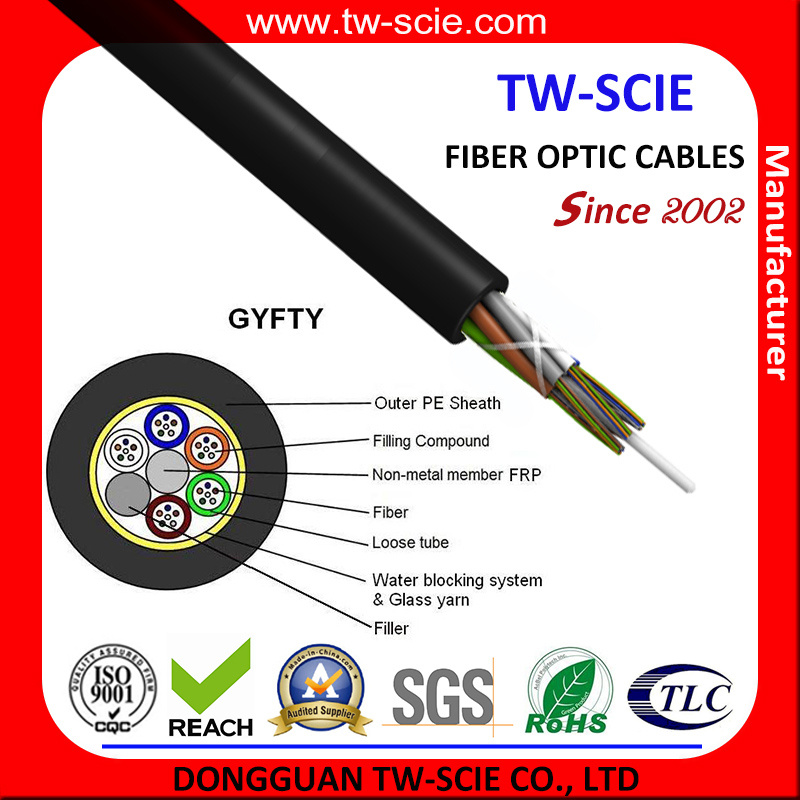

GYFTY 60/48/24/12/8/6/2/4 Core Multimode Fiber Optic Cable Structure characters:
Non-metallic strengthen member
Reinforced with glass or aramid yarn
PE outer sheath
We can design any kind of structures according to enviromental condition and transmission capacity, such as GYFTA, GYFXTY, GYFDTZA etc.
GYFTY 60/48/24/12/8/6/2/4 Core Multimode Fiber Optic Cable Properties:
Non-metallic structure providing excellent anti-electromagnetism
Anti-thunder and anti-static performances.
GYFTY 60/48/24/12/8/6/2/4 Core Multimode Fiber Optic Cable Applicable Fields:
1.Long distance telecom, LAN in high voltage area or access to telecom network;
2.For power transmission system, much thunder areas and high electro-magnetic inerference.
