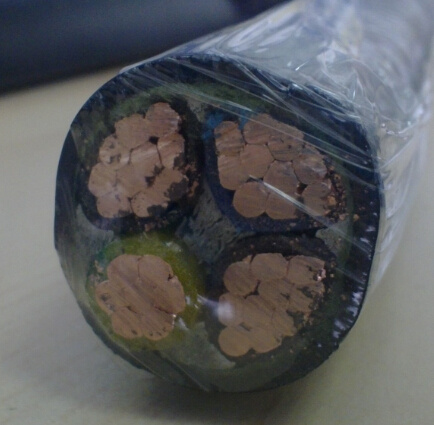

600/1000V, XLPE Insulation, PVC Sheath, Power Cable, 3X50+35mm2

Prod Model:	3x50+35mm2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East
Size:	3X50+35mm2
Cores Identification Color:	Black,Blue,Brown,Yellow/Green
Voltage:	Low and Medium Voltage Cable
Insulation Material:	XLPE
Current:	DC & AC
Application:	Power Station
Certification:	VDE
Brand:	Yifang

Product Description

600/1000V,XLPE insulation,PVC sheath,Power Cable,3x50+35mm2

power cable, 1core, 2cores, 3cores, 4cores, 5cores:

1. Application
XLPE cable for laying indoor, tunnel, underground and canan, shaft water underground and large difference of level, able to bear larger mechanical pressure and pulling force.
2. Construction
Aluminum conductor or copper conductor
XLPE insulated
Copper wire screen
Aluminum wire armoured
PVC or PE or HDPE sheath
3. Service Conditions and parameters of cable
Max. Conductor operating temperature: 90
Short circuit temperature of operating:
In air: 40
Underground: 25
Depth of laying in direct: 80CM
Thermal resisitance of soil: 100c. Cm/W
4. Standard:
IEC, BS, DIN, ASTM, CSA, AS, ASIN etc
5. Other characteristics: Design and manufacture according to customer's special
The series includes:
Copper (aluminum) conductor, XLPE insulated, PVC sheathed power cables.
Copper (aluminum) conductor, XLPE insulated, PE sheathed power cables.
Copper (aluminum) conductor, XLPE insulated, steel tape armoring, PVC sheathed power cables.
Copper (aluminum) conductor, XLPE insulated, steel tape armoring, PE sheathed power cables.
Copper (aluminum) conductor, XLPE insulated, thin steel wire armoring, PVC sheathed power cables
Copper (aluminum) conductor, XLPE insulated, thin steel wire armoring, PE sheathed power cables
Copper (aluminum) conductor, XLPE insulated, thick steel wire armoring, PVC sheathed power cables.
Copper (aluminum) conductor, XLPE insulated, thick steel wire armoring, PE sheathed power cables.
1, Standard and Property for Using
The XLPE insulated power cable can be produced according to our factory specification with the standard IEC60502. The factory can also design and manufacture special XLPE cable according to the other standards required by the customers. They not only have excellent electric, mechanical properties, but also have powerful resistance against chemical corrosion, heating and environmental stress. Their structures are simple. The permissible maximum operating temperature is 90° C. It is convenient for using, and they can be laid with no restriction of different elevation.
2, Application
The products can be produce according to the standard IEC 60502. Our factory can also design and manufacture special XLPE cable according to the other standards required by the customers'. They not only have excellent electric conductivity mechanical properties, but also have powerful resistance against chemical corrosion, heating and environmental stress. Their structure are simple. The permissible maximum operating temperature is 90° C. It is convenient for using, and they can be laid with no restriction of different elevation.
3, Type, name and application
We can provide our customers with products in the accordance with Chinese GB, JB standards, or IEC, BS, VDE, JIS or UL standards in the world.

Type		Name	Application
Cu conductor	Al Conductor
YJV YJY	YJLV YJLV	XLPE insulated, PVC or PE sheathed power cable	For laying indoor, tunnel, channel and underground. Unable to bear external mechanical force during laid.
YJV 22  YJV 23	YJLV 22  YJLY 33	XLPE insulated, steel tape armoured, PVC or PE sheathed power cable	For laying indoor, tunnel, channel and underground. Able to bear external mechanical force, but unable to bear large pulling force.
YJV 32  YJV 33	YJLV 32  YJLV 33	XLPE insulated, fine steel wire armoured, PVC or PE sheathed power cable	For laying in shaft with large difference of level. Able to bear external mechanical force, and moderate pulling force.
YJV 42  YJV 43	YJLV 42  YJLV 43	XLPE insulated, thick steel armoured, PVC or PE sheathed power cable	Can be laid in water or soil eith drop height. Able to bear positive pressure and pulling force.
