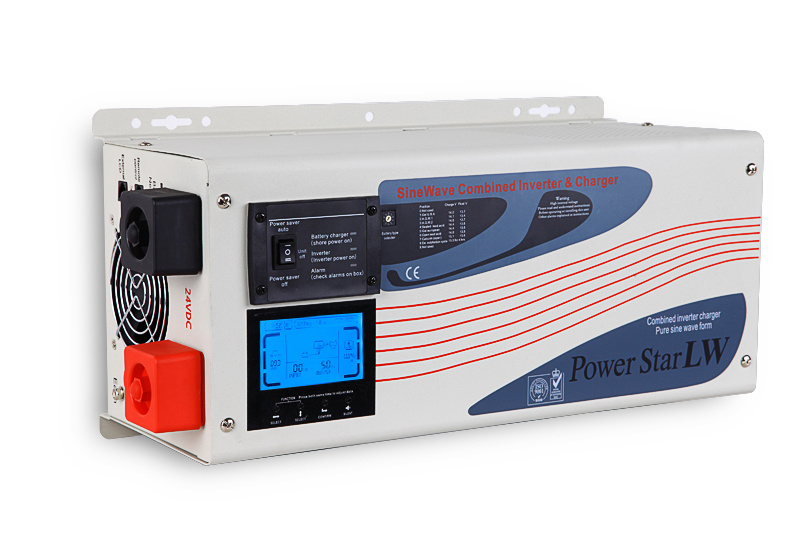

6000W Pure Sine Wave Inverter with Charger

Name: 6000W Pure Sine Wave Inverter with Charger
Brand: all-electronics-online.com
SKU: 783635665
Availability: InStock
Rating: 4.6 (37 reviews)

Price:	US $ 420/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LW6000W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Built In Charger:	70AMP
Inverter Charger:	Powerstar W7
Capacity:	1kw-6kw

Product Description

Power Star Solar sine wave inverter with charger 70AMP,
Powerstar inverter charger 1KW-6KW, 12V/24V/48VDC, pure sine wave inverter, 220VAC/110VAC (Lw series)
35AMP/70AMP built in charger.

LW Series Pure Sine Wave Inverter takes high frequency converter Device. Zero Voltage(ZV) and soft switch technic, high capability Motorola MCU, digital and dummy combined technics which Complete the voltage increase in one time and SPWM wave modemed Advanced circuit, high efficiency and compact size, small weight And super stability.

It widely applied in wind denerator, Solar battery pack set, house, vehicle, ship, navigation and places where lack of city power, mobile electricity work and telecommunications device, launch Station, Emengency EPS.

Pure sine wave Inverters has no repellency for the load, which can work well with fluorescent lamp, electromotor, microwave ovens, Induction cooker, refrigerator, air conditions and transformer.

With protection fonction like, DC input protect When pole wrong, AC input protection against over and low voltage, Output protection against over load, shor circuit Protection, DC input and AC output completely electric insulation. Please contact with Cathy for more specification and details on it.

(Rated Output Power)	1000w	2000w	3000w		4000W	5000w	6000w
Input Voltage Waveform	Pure Sine Wave (utility or generator)
Nominal Input Voltage	230Vac
Low Line Disconnect	184Vac± 4%
High Line Disconnect	253Vac± 4%
Max AC Input Voltage	270Vrms
Nominal Input Frequency	50Hz/ 60Hz (Auto detection)
Over-Load Protection (SMPS load)	Circuit breaker
Output Short Circuit Protection	Circuit breaker
Efficiency (Line Mode)	> 95%
Transfer Switch Rating	30A
Transfer Time (Ac to Dc)	20ms (typical)
Output Voltage Waveform	Sine wave
Power Factor	0~1.0
Nominal Output Voltage (V)	230Vac
Output Voltage Regulation	± 10% rms
Nominal Efficiency	> 80%
Nominal DC Input Voltage	12V/24V	12V/24V	12V/24V/48V		24V/48V	24V/48V	24V/48V
Nominal Charge Current	35A	35A	35A		70A	70A	70A
Charge Current Regulation	± 5Adc
Batteryinitial voltage	0 - 15.7 Vdc (can operate with 0V battery)
Communication:	RJ11 (Used for factory testing. No customer interface available)
Safety Certification	Compliance with UL458			CE(EN60950)
EMI Classification	FCC, CLASS A			EN50091-2, CLASS A
Operating Temperature Range	0° Cto 40° C
Storage temperature	-15º C ~ 60º C
Operation humidity	5% to 95%
Audible Noise	60dB max
Cooling	Forced air, variable speed fan
