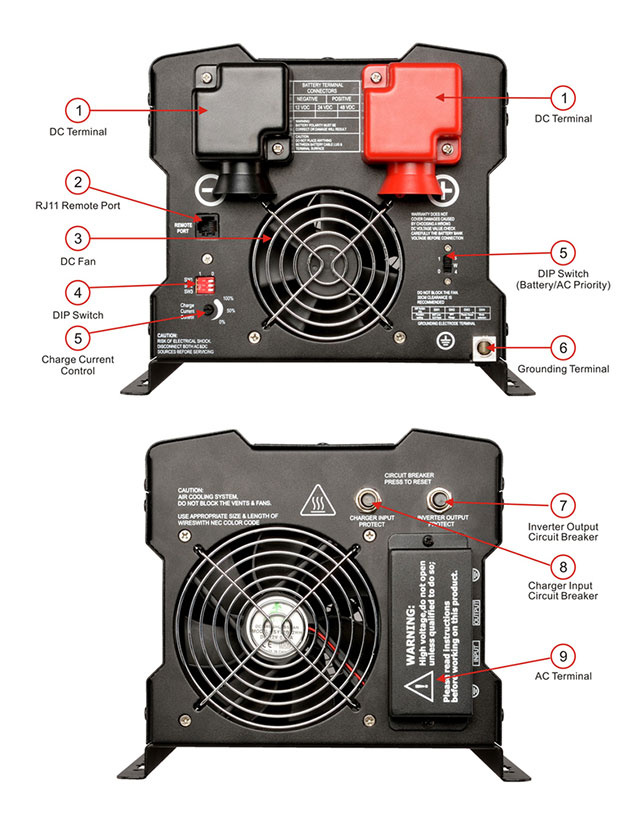

6000watt Inverter Charger Pure Sine Wave

Prod Model:	WSP-APP

Product Description

6000Watt inverter charger pure Sine Wave

Pure Sine Wave Inverter, Charger
1.High High overload ability up to 300% of rated power(20 sec)
2.Low quiescent current, low power " Power Saving Mode " to conserve energy
3.4-step intelligent battery charging, PFC(Power Factor Correction) for charger
4.8 pre set battery type selector plus de-sulphation for totally flat batteries
5.Powerful charge rate up to 110Amp, selectable from 0%-100%
6.10 ms typical transfer time between battery and AC, guarantees power continuity
7.Smart remote control
8.15s delay before transfer when AC resumes, extra protection for loads when used with generator
9.Allows start up and through power with depleted batteries
10.30A/40A through current ability
11.Multiple controlled cooling fan
12.Extensive protections against various harsh situations
13.13VDC battery recover point, dedicated for renewable energy systems

Inverter Output	Rated Power		1000W	1500W	2000W	3000W	4000W	5000W	6000W
	Continuous output power		1000W	1500W	2000W	3000W	4000W	5000W	6000W
	Surge rating(20s)		3000W	4500W	6000W	9000W	12000W	15000W	18000W
	Capable of Starting Electric Motor		1HP	1.5HP	2HP	3HP	4HP	5HP	6HP
	Output Waveform		Pure sine wave / same as input (bypass mode)
	Nominal Efficiency		>88%(Peak)
	Line Mode Efficiency		>95%
	Power Factor		0.9-1
	Nominal Output Voltage RMS		100-110-120VAC/220-230-240VAC
	Output Voltage Regulation		±10%RMS
	Output Frequency		50/60±0.3Hz
	Short Circuit Protection		Yes, Current Limit Function(fault after 1sec)
	Typical Tranfer Time		10ms(Max)
	THD		<10%
DC Input	Nominal Input Voltage		12VDC
			(*2 for 24VDC, *4 for 48VDC)
	Minimum Start Voltage		10VDC
	Low Battery Alarm		10.5VDC/11VDC
	Low Battery Trip		10VDC/10.5VDC
	High Voltage Alarm&Fault		16VDC
	High DC input Recovery		15.5VDC
	Low Battery Voltage Recover		13VDC
	Idle consumption-search Mode		<25W when power saver on
AC charge	Input Voltage Range		Narrow: 100~135VAC/194~243VAC
			Wide:90~135VAC/164~243VAC
	Output Voltage		Depends on battery type
	Charger breaker rating(120Vac)		10A	10A	10A	20A	20A	30A	30A
	Max Charge Rate		35A /70-90A Max (Charger Current Control)
	Over Charge Protection Shutdown		15.7V for 12VDC (*2 for 24VDC,*4 for 48VDC)
	Charger curve(4 stage constant current) 4 step digital controlled progressive charge		Battery types (*2 for 24VDC, *4 for 48VDC)
	Battery type		Fast Vdc				Float Vdc
	Gel U.S.A		14				13.7
	AGM1		14.1				13.4
	AGM2		14.6				13.7
	Sealed lead Acid		14.4				13.6
	Gel Euro		14.4				13.8
	Open Lead Acid		14.8				13.3
	Calcium		15.1				13.6
	De-sulphation		15.5 for 4hours
	Remote Control		Yes, Optional
Bypass& protection	Input Voltage Waceform		Sine wave(Grid or Generator)
	Nominal Voltage		120VAC				230VAC
	Low Voltage Trip		80V/90V±4%				184V/154V±4%
	Low Voltage re engage		90V/100V±4%				194V/164V±4%
	High Voltage Trip		140V±4%				253V±4%
	High Voltage re engage		135V±4%				243V±4%
	Max input AC voltage		150VAC				270VAC
	Nominal Input Frequency		50Hz or 60Hz (Auto detect)
	Low Freq Trip		47±0.3Hz for 50Hz,57±0.3Hz for 60Hz
	Low Freq re engage		48±0.3Hz for 50Hz, 58±0.3Hz for 60Hz
	High Freq Trip		55±0.3Hz for 50Hz, 65±0.3Hz for 60Hz
	High Freq re engage		54±0.3Hz for 50Hz, 64±0.3Hz for 60Hz
	Output short circuit protection		Circuit breaker
	Bypass breaker rating		10A	15A	20A	30A	30A	40A	40A
	Transfer switch rating		30amp for UL&TUV				270VAC
	Max bypass current		30amp				40amp
Mechanical Specifications	Mounting		Wall mount
	Dimensions(W*H*D)		382*218*179mm		442*218*179mm		598*218*179mm
	Net weight (kg)		16KG	17KG	20KG	24KG	35KG	45KG	45KG
	Shipping Dimensions(W*H*D)		520*315*300mm		580*315*300mm		740*315*300mm
	Shipping Weight (kg)		18KG	19KG	22KG	26KG	37KG	47KG	47KG
* Product specifications are subject to change without further notice
