Product Description
6000Watt Inverter Pure Sine Wave, Charger, Automatic Voltage Regulator
1. High overload ability of our APS charger is up to 300% rated power(20 sec.), and low voltage trip 9.5V/10V or 10V/10.5V is selectable.
2. pure sine wave inverter adopts low quiescent current, and power saver mode to reduce power consumption to 10W(3s sensing cycle)/3W(30s sensing cycle) *. It can extract max. power from various batteries with different protections.
3. The automatic voltage regulator supplies wide stabilizing AC range, and bucking/boosting voltage in 10ms.
4. pure sine wave inverter can offer 3-step intelligent battery charging, and equipped with 8 preset battery type selector for totally flat batteries. Its powerful charge rate up to 90Amp**. In addition, PFC(power factor correction) is adopted for charger, which has less power consumption than conventional units
5. 10ms typical transfer time between battery and AC, which guarantees power continuity of pure sine wave inverter. Its input AC voltage is selectable (184-253V or 154-253V) for different kinds of loads.
6. The charger has 15s delay before transfer when AC resumes, and the function of overload protection when it equips with generator. Also, it allows start up and through power with depleted batteries.

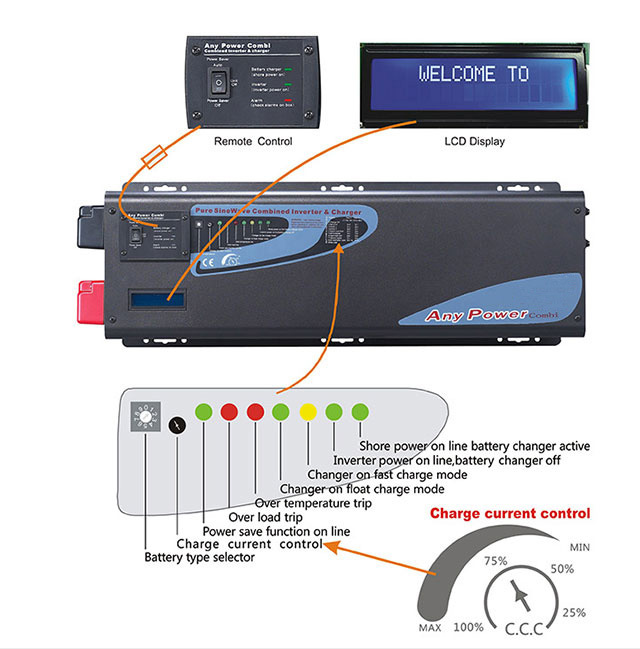

7. USB communication port, LCD status display, battery/AC priority switch are available for our pure sine wave inverter, it also has 17 alarms/warnings for easier operation and trouble-shooting, and ability to switch the unit on/off. In addition, select/deselect power saver mode can be used too.
Note:*For 1KW one. **For some models.
| Inverter Output | Rated Power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W |
| Continuous output power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W |
| Surge rating(20s) | 3000W | 4500W | 6000W | 9000W | 12000W | 15000W | 18000W |
| Capable of Starting Electric Motor | 1HP | 1.5HP | 2HP | 3HP | 4HP | 5HP | 6HP |
| Output Waveform | Pure sine wave / same as input (bypass mode) |
| Nominal Efficiency | >88%(Peak) |
| Line Mode Efficiency | >95% |
| Power Factor | 0.9-1 |
| Nominal Output Voltage RMS | 100-110-120VAC/220-230-240VAC |
| Output Voltage Regulation | ±10%RMS |
| Output Frequency | 50/60±0.3Hz |
| Short Circuit Protection | Yes(10s after fault) |
| Typical Tranfer Time | 10ms(Max) |
| THD | <10% |
| DC Input | Nominal Input Voltage | 12VDC |
| (*2 for 24VDC, *4 for 48VDC) |
| Minimum Start Voltage | 10VDC |
| Low Battery Alarm | 10.5VDC/11VDC |
| Low Battery Trip | 10VDC/10.5VDC |
| High Voltage Alarm | 16VDC |
| Low Battery Voltage Recover | 15.5VDC |
| Idle consumption-search Mode | <25W when power saver on |
| AC charge | Input Voltage Range | Narrow: 100~135VAC/194~243VAC |
| Wide:90~135VAC/164~243VAC |
| Output Voltage | Depends on battery type |
| Charger breaker rating(120Vac) | 10A | 10A | 10A | 20A | 20A | 30A | 30A |
| Max Charge Rate | 35A /70-90A Max (Charger Current Control) |
| Over Charge Protection Shutdown | 15.7V for 12VDC (*2 for 24VDC,*4 for 48VDC) |
| Charger curve(4 stage constant current) 4 step digital controlled progressive charge | Battery types (*2 for 24VDC, *4 for 48VDC) |
| Battery type | Fast Vdc | Float Vdc |
| Gel U.S.A | 14 | 13.7 |
| AGM1 | 14.1 | 13.4 |
| AGM2 | 14.6 | 13.7 |
| Sealed lead Acid | 14.4 | 13.6 |
| Gel Euro | 14.4 | 13.8 |
| Open Lead Acid | 14.8 | 13.3 |
| Calcium | 15.1 | 13.6 |
| De-sulphation | 15.5 for 4hours |
| Remote Control | Yes, Optional |
Bypass&
protection | Input Voltage Waceform | Sine wave(Grid or Generator) |
| Nominal Voltage | 120VAC | 230VAC |
| Low Voltage Trip | 80V/90V±4% | 184V/154V±4% |
| Low Voltage re engage | 90V/100V±4% | 194V/164V±4% |
| High Voltage Trip | 140V±4% | 253V±4% |
| High Voltage re engage | 135V±4% | 243V±4% |
| Max input AC voltage | 150VAC | 270VAC |
| Nominal Input Frequency | 50Hz or 60Hz (Auto detect) |
| Low Freq Trip | 47±0.3Hz for 50Hz,57±0.3Hz for 60Hz |
| Low Freq re engage | 48±0.3Hz for 50Hz, 58±0.3Hz for 60Hz |
| High Freq Trip | 55±0.3Hz for 50Hz, 65±0.3Hz for 60Hz |
| High Freq re engage | 54±0.3Hz for 50Hz, 64±0.3Hz for 60Hz |
| Output short circuit protection | Circuit breaker |
| Bypass breaker rating | 10A | 15A | 20A | 30A | 30A | 40A | 40A |
| Transfer switch rating | 30amp for UL&TUV | 270VAC |
| Max bypass current | 30amp | 40amp |
| Mechanical Specifications | Mounting | Wall mount |
| Dimensions(W*H*D) | 382*218*179mm | 442*218*179mm | 598*218*179mm |
| Net weight (kg) | 16KG | 17KG | 20KG | 24KG | 35KG | 45KG | 45KG |
| Shipping Dimensions(W*H*D) | 520*315*300mm | 580*315*300mm | 740*315*300mm |
| Shipping Weight (kg) | 18KG | 19KG | 22KG | 26KG | 37KG | 47KG | 47KG |
| * Product specifications are subject to change without further notice | | | | | |
