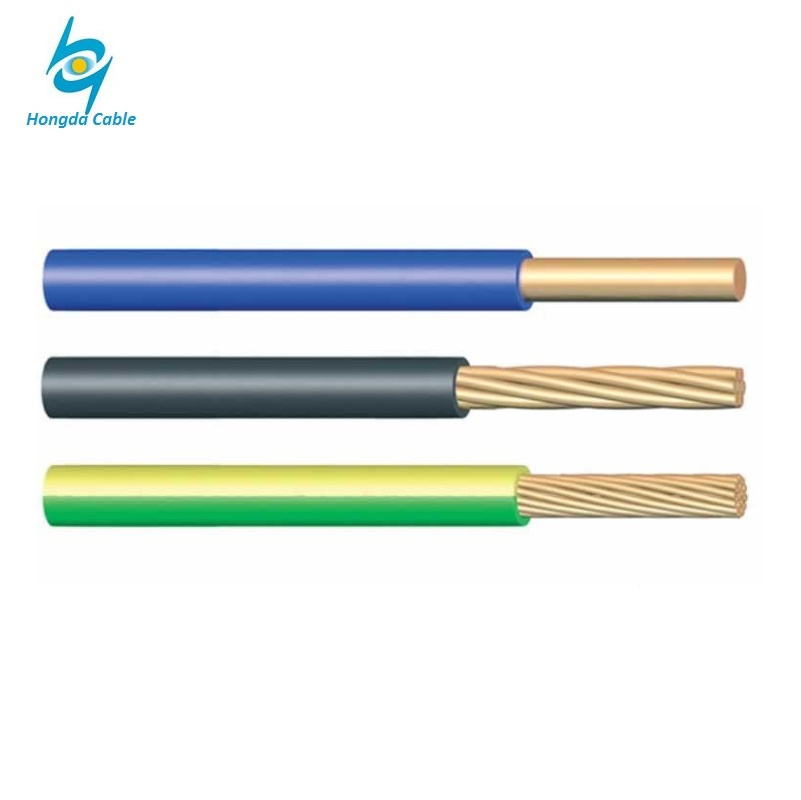

600V Copper PVC Insulated Electric Wire

Name: 600V Copper PVC Insulated Electric Wire
Brand: all-electronics-online.com
SKU: 834741515
Availability: InStock
Rating: 4.3 (98 reviews)

Price:	US $ 0.2-3.5/Meter
Min Order:	500/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Class Of Conductor:	5 or 6
Rated Voltage:	450/750 V
Manufacture Standard:	IEC 60227
Type:	Insulated
Conductor Type:	Stranded
Application:	Light Appliances
Conductor Material:	Copper
Insulation Material:	Bare
Certification:	SGS
Brand:	Hongda

Product Description

600V copper PVC insulated electric wire

Specifications
Twisted Pair PVC Insulated Copper Flexible Electric Wire
1.Certificate: SGS,ISO,CCC
2.Standard: IEC60227
3.High quality

Applications:
The product is fit for ac rated voltage 450/750 and below of domestic electrical applicances of smaller size motoriace tools of instruments of varous meters and motorized lighting installations.
This prduct is suitable to be used in household appliances ,electric tools and lighting in home , office and similar indoor place where request flexible wire

Technological property:
1)If finished insulation core and finished power line is pot into warm water20+/-5 °c for an hour, they will be able to bear stipulated as soaked, soaked voltage test as stated in table.
2)Wire has excellent electric insulation property, mechanical property, non-inflammability. So it is safety and convenience in using the producters name. The model and the voltage should be cleany printed on the surface of the finished power line of insulation and sheath delivery requirements.

Nominal Area	Insulated Thickness	Sheathed Thickness	Approx. dia of cable	Cable approx weight	D.C Resisance Of conductor 20°C(Ω/km)	Least Insulates resistance
mm²	mm	mm	mm	(kg/km)	(Ω/km)	mΩ/km
2×0.75	0.6	0.8	6.6	50.8	39.0	0.011
2×1.0	0.6	0.8	7.0	59.2	19.5	0.010
2×1.5	0.7	0.8	8	78.6	13.3	0.010
2×2.5	0.7	1.0	9.4	114.1	7.98	0.009

*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Any needs or question, please contact me Mobile:+86-13783451632 , we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperation.
