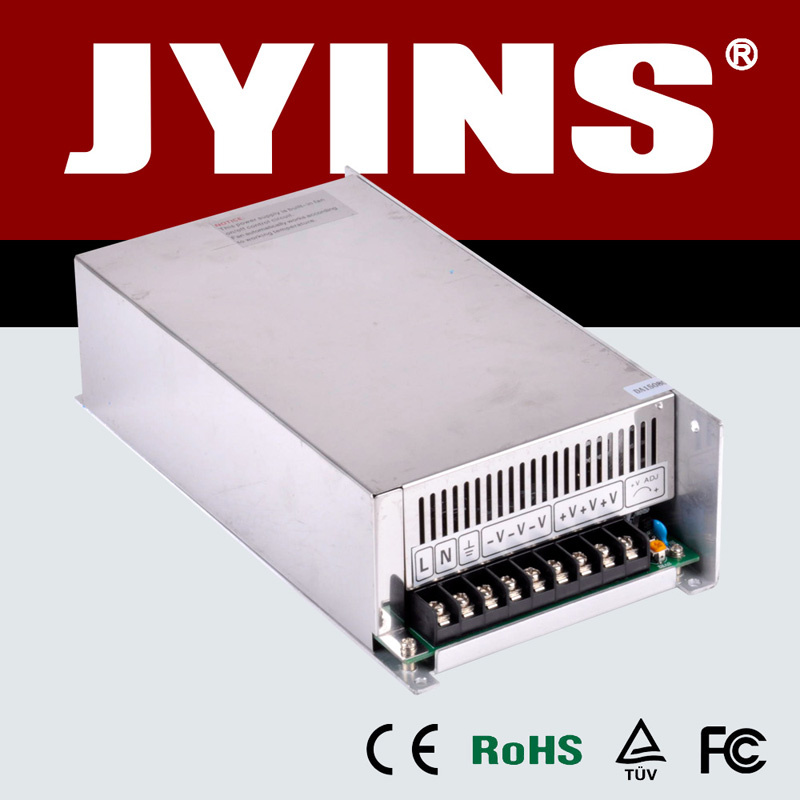

600W 12V 50 AMP LED Switching Mode Power Supply

Name: 600W 12V 50 AMP LED Switching Mode Power Supply
Brand: all-electronics-online.com
SKU: 802854865
Availability: InStock
Rating: 4.5 (34 reviews)

Price:	US $ 50-55/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-600W
OEM, ODM:	Accepted
Power:	600W
Type:	Automatic Select
Color:	Grey
Output Voltage:	5V/12V/15V/24V
Output Type:	Single
Warranty:	2 Years
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Level 1 Power Distribution Equipment
Certification:	ISO
Output Power:	600W
Brand:	Jyins

Product Description

600w 12v 50 amp led switching mode power supply
Technical Parameters

Model	S-600-12	S-600-15	S-600-24	S-600-48
DC Output voltage	12V	15V	24V	48V
Output voltage range(Note:2)	±1%	±1%	±1%	±1%
Rated output current	50A	40A	25A	12.5A
Output current range	0~50A	0~40A	0~25A	0~12.5A
Wave and noise(Note:3)	120mVp-p	150mVp-p	240mVp-p	240mVp-p
Inlet stability(Note:4)	±1%	±1%	±1%	±1%
Load stability(Note:5)	±0.5%	±0.5%	±0.5%	±0.5%
DC output power	600W	600W	600W	600W
Efficiency	83%	84%	86%	87%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
AC input voltage range	88~132VAC/190~240VAC selected by switch 47~63Hz,250~340VDC
Input current	5A/230V
Overall dimension	238X124X65mm (LWH)
Weight	1.40kgS
Safety standards	GB4949,UL60950,EN60950
EMC standards	According to GB9254 EN55022 EN55024 A level design

Product Description

WHY CHOOSE US

1. Our company is a professional manufacture and OEM.

2. Low price and high reliability
3.Hight efficiency and low operation temperature
4.Soft-start current can reduce the AC input impact effecticly

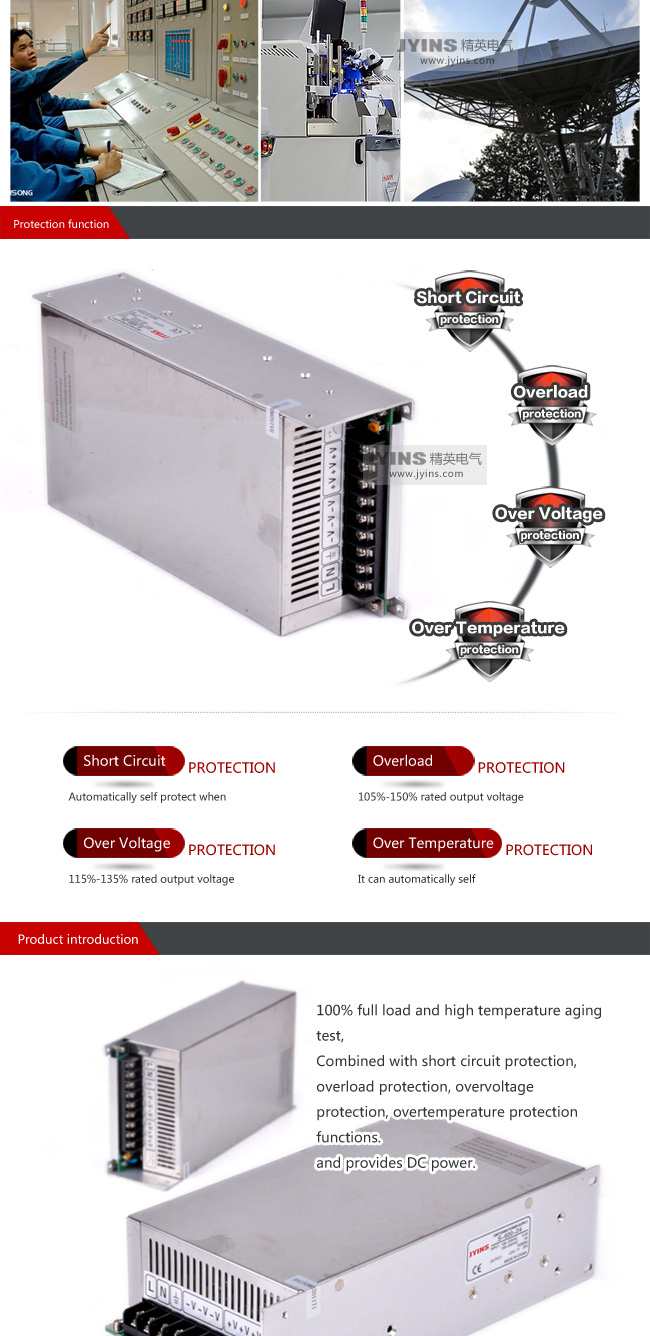

With Short-circuit and owwerload protection

5.100% full-load burning test
6.Our products obtain CE and ISO9001 Certificate and according to IEC 521

Yueqing Jyins Electric Technology Co., Ltd. Founded in 1990, is located in the largest manufacturing base of low-voltage electric equipment of China--- Liushi, which is called "the Electric Device Metropolis of China". We are one of leading enterprises specialized in designing, manufacturing, developing and exporting all kinds of high and low voltage electric appliances, such as temperature controller (indicator), thermocouple, shunt, thermocouple wire, thermal resistor, current/voltage meter(panel meter), current divider, gas meters, water meter, KWH meter, automatic nozzle, contactor, relay, circuit breaker, transformer, thermal relays, pushbutton, lightning arrester, dropout fuse, switch, pneumatic, cylinder, cable accessories, power instrument, lighting, doorbell etc.

We have employed 500 workers and our factory covers 4, 0000 square meters area. with total assets reaching 5 million US dollars, we own modern production lines and high quality controlling equipments with scientific administration, professional engineers, highly trained technicians and skilled workers. Consequently, our products are of both high quality and high ratio of performance and are widely exported to worldwide markets with good reputation and credit. Now we are selling products to North and South America, Middle East, Southeast Asia, Western Europe, Africa, Hong Kong, Taiwan area and etc...

"Quality first and user uppermost" is one of our principles. We always strive for best in quality and after-sales services to satisfy customers' demands. We sincerely welcome customers from worldwide to share our good quality products and services. with ceaseless efforts and developments in design and technology, we will surely do better and better. High praise among the customers.

We sincerely welcome our friends at home and aboard to guide us and then develop together.
