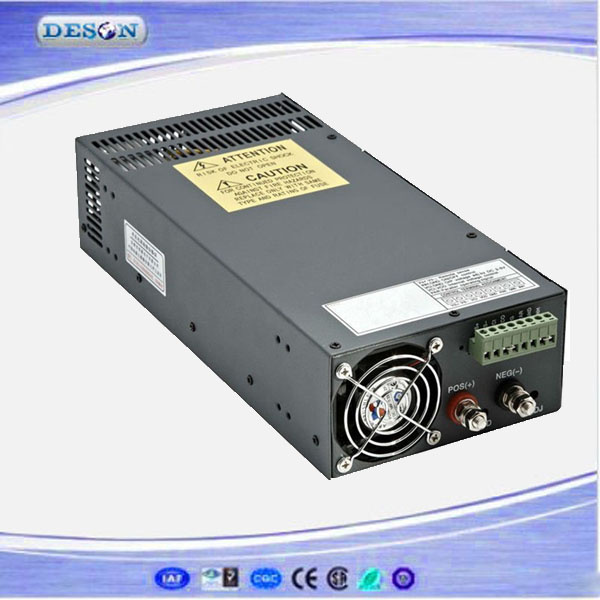

600W Single Output Switched Mode Power Supply

Prod Model:	SCN-600
Power:	600W
Input:	90~132AC/180~264AC
Output:	5V/12V/24V
Size:	247X147X64mm
Weight:	2.1kgs
Output Type:	Single
Warranty:	2 Years
Input Voltage:	Full Range
Connection Mode:	Parallel Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Output Power:	600W
Brand:	Deson
Energy Transmission:	Switched Mode Power Supply

Product Description

600W Single Output Switched Mode Power Supply With Parallel Function

1.Universal AC Input
2.Built in parallel operation function
3.Built in remote ON/OFF control
4.Built in remote sense function
5.Protection : short circuit/Overload/Over voltage/ Over temperature
6.Cooling by DC fan
7.100% full load burn-in test
8.Soft-start current can reduce the AC input impact effective
9. 2 years warranty


Product Description


Model / Specification	SCN-600-12	SCN-600-13.5	SCN-600-15	SCN-600-24	SCN-600-27	SCN-600-48
DC output voltage	12V	13.5V	15V	24V	27V	48V
Output voltage error	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	50A	44A	40A	25A	22A	12.5A
Output current rage	0-50A	0-44A	0-40A	0-25A	0-22A	0-12.5A
Wave and noise	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note5)	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
DC output power	600W	600W	600W	600W	600W	600W
Efficiency	83%	84%	84%	85.5%	86.5%	87%
Adjustable range for DC voltage	10-13.2V	12-15V	13.5-18V	20-26.4V	24-30V	41-56V
AC input voltage range	90~132AC/180~264AC
AC Input current	12A/115V 7.5A/230VAC
AC impulse current	25A/115V 50A/230V
Leakage current	<3.5mA/240VAC
Overload protection	105%~135% Type:PULSING HICCUP SHUTDOWN Reset: auto recovery
Over-voltage protection	.........
Temperature coefficient	...........
Setup rise hold up time	±0.03%°C(0~50°C)
Vibration	10~500Hz, 2G 10min./1cycle,Period for 60min,EACH AXES
Withstand voltage	Input and output interval:1.5KvAC,Input and enclosure:1.5KVAC Output and enclosure:0.5KVAC
Isolation resistance	Input and output interval,Input and enclosure,Output and enclosure:500VDC/100M Ohms
Working temperature and humidity	-10°C~+50°C,20%~90%RH
Store temperature and humidity	-20°C~+85°C,10%~95%%RH
Overall dimension	247 x 147 x 63.5mm
Weight	2.1Kgs
Safety standards	Meet UL 1950 requirement (NOT apply for the mark)
EMC standards	CISPR22(EN55022)IEC1000-4,2,3,4,5,6,8,11 IEC100-3-2
