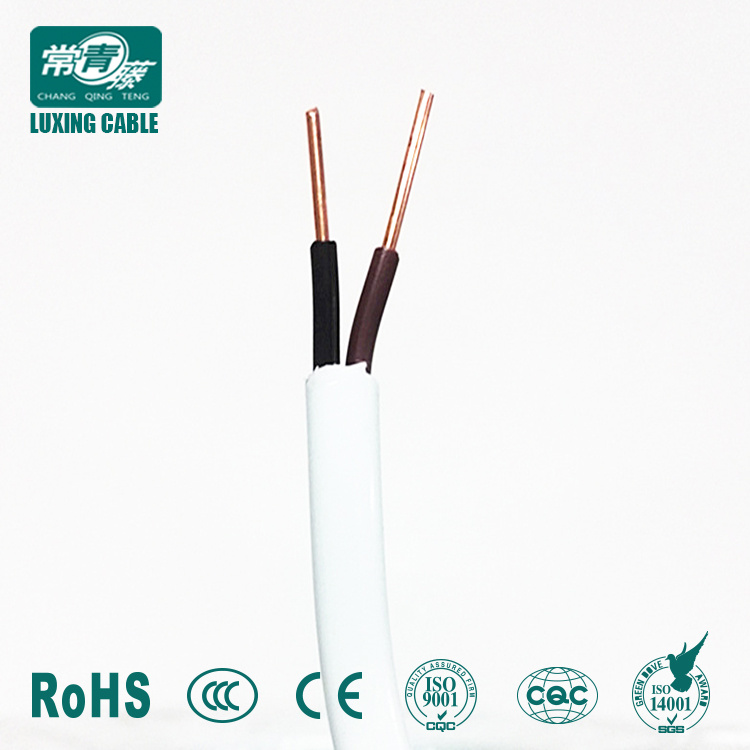

60227IEC/Ce/PVC Insulated Wire

Name: 60227IEC/Ce/PVC Insulated Wire
Brand: all-electronics-online.com
SKU: 691295381
Availability: InStock
Rating: 4.7 (53 reviews)

Price:	US $ 0.1-1/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	60227IEC/CE/PVC Insulated Wire
Product Nane:	60227IEC/Ce/PVC Insulated Wire
Rated Voltage:	300/500V 450/750V
Conductor:	Copper / Aluminum
Insulation:	PVC / XLPE
Certificates:	ISO CCC Ce RoHS
Origine:	Shandong China
Color:	Red, Yellow, Blue, Green, Yellow/Green, Black etc
MOQ:	100 Meter
Packaging:	100 Meter Per Roll
Shipping:	by Sea, by Train, by Air
Type:	Insulated
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	GB/T Standard
Conductor Type:	Solid / Stranded
Application:	Fixed Wire
Sheath Material:	Non
Range Of Application:	Lsoh / Flame -Retardant
Brand:	Chanong Qing Teng

Product Description

1.Range of Application
Indoor 300/500V AWG PVC Insulated Copper Wire

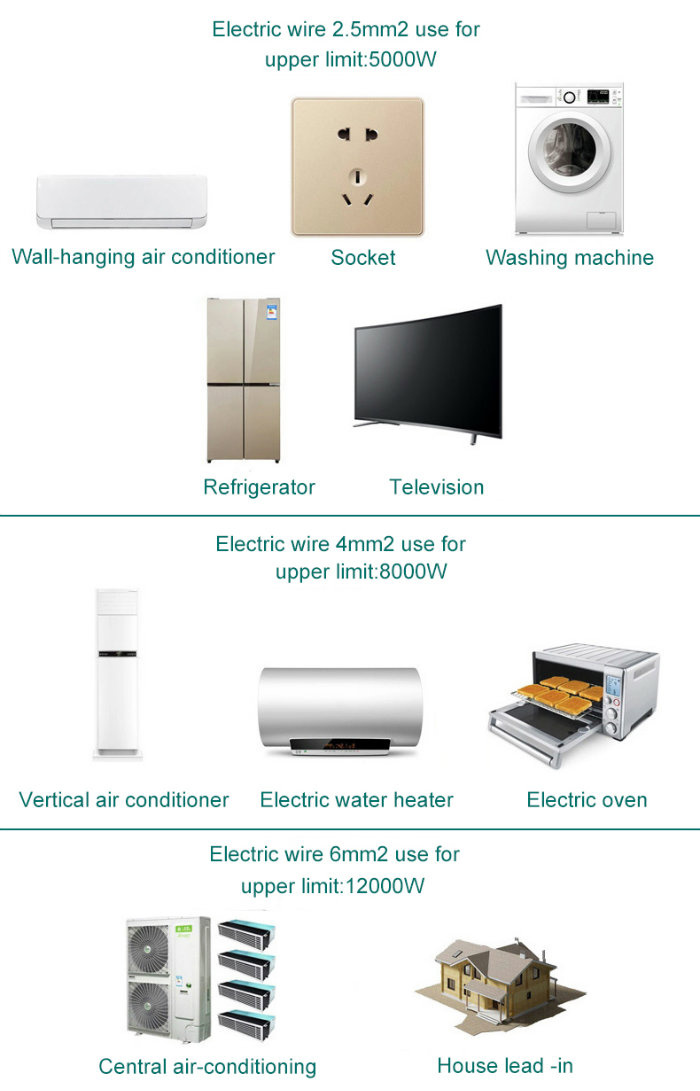

Power plant, Household Appliances, meters and telecommunication equipment with AC voltage up to and including 450/750.

2.Product Introduction
Indoor 300/500V AWG PVC Insulated Copper Wire
*Product : PVC insulated electric wire
*Conductor:Single or stranded copper
*PVC insulation
*Rated voltage: 300/500V,450/750V
*The long-time working temperature should not beyond 70ºC.
*Adopt standard thickness, easy truncation.

3.Service Conditions
Indoor 300/500V AWG PVC Insulated Copper Wire
Working temperature:Not more than 105ºC for RV-105 model.The other no more than 70ºC.

4.Model and Name:see table1
Indoor 300/500V AWG PVC Insulated Copper Wire

Model	Name
RV	Copper Core PVC Insulation Flexible Wire
RVB	Copper Core PVC Insulation Flat Flexible Wire
RVS	Copper Core PVC Insulation Twisted Flexible Wire
RVV	Copper Core PVC Insulation Sheath Round Flexible Wire
RVVB	Copper Core PVC Insulation Sheath Flat Flexible Wire
RV-90	Copper Core Heat-resistak Losc PVC Flexible Wire

5.Part of specification size and technical data
Indoor 300/500V AWG PVC Insulated Copper Wire

Nominal section (mm²)	No./Diameter (mm)	Max. overall Diameter (mm)	Cooper Weight (kg/100m)	Plastic Weight (kg/100m)	Total Weight (kg/100m)
0.75	1/0.97	2.25	0.66	0.48	1.14
1	1/1.13	2.4	0.89	0.53	1.42
1.5	1/1.38	2.9	1.33	0.75	2.08
2.5	1/1.78	3.4	2.2	1.1	3.16
4	1/2.25	3.9	3.54	1.31	4.73
6	1/2.76	4.4	5.33	1.42	6.72
10	7/1.35	6.2	9.02	2.6	11.7
16	7/1.70	7.2	14.3	3	17.3
25	7/2.14	9	22.7	4.8	27.5

35	7/2.52	10.1	31.4	5.6	37
50	19/1.78	11.9	42.8	7.5	50.3
70	19/2.14	13.7	62	8.5	70.5
95	19/2.52	16	85.7	11.3	97
120	37/2.03	17.6	108.4	12.6	121
150	37/2.25	19.5	133.2	15.8	149
185	37/2.52	22	167.1	20.4	187.5
240	61/2.24	25	218.7	26.8	245.5
300	61/2.50	27.5	271.5	29	300.5
400	61/2.85	31	352.5	35.8	388.3

Size:1.5-400mm2, Other sizes can also be produced as you required.

Inner packing: Easy pull box, plastic film, plastic reel ,wooden reel.

Outer packing: Carton box, pallet available.

Other packages are available according to client's request.

We always pack and load the products according to the customers' demand, and we have rich experience on it.

Luxing Cable Factory Mainly Produce

300/500V 450/750V electrical wire	AAC conductor
600/1000V PVC insulated cable	AAAC conductor
600/1000V XLPE insulated cable	ACSR conductor
1.8/3KV to 26/35KV power cable	OPGW
Armored underground cable	ABC cable
Control cable and instrumentation cables	Rubber cable

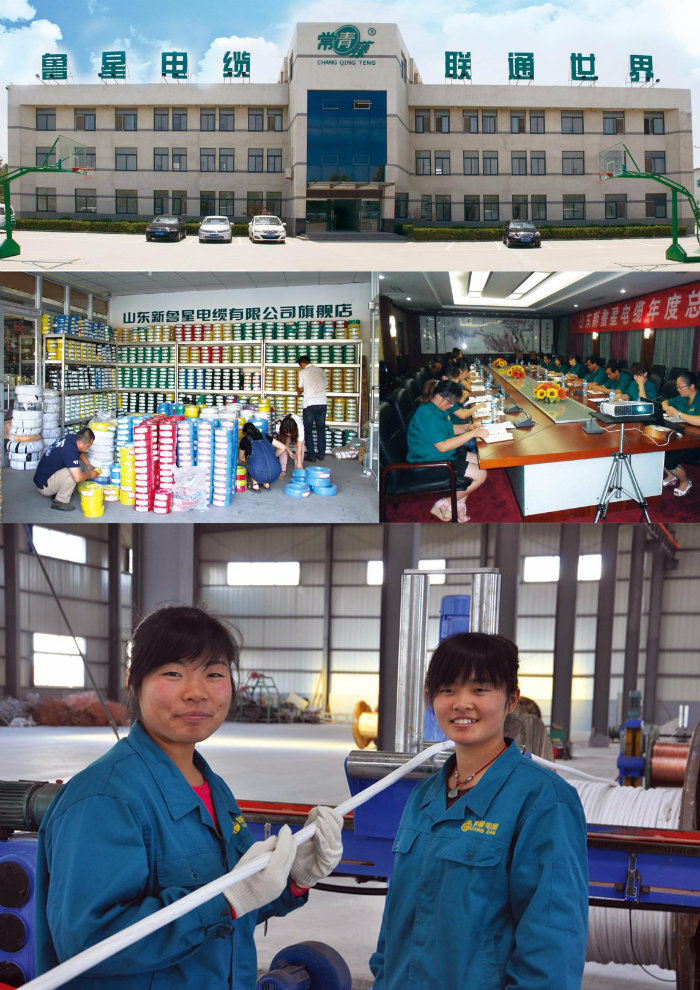

Factory Production Base

Customer Visiting

Why choose us?

1. Advanced process equipment

2. Competitive price and high quality

3. Excellent after-sale service

4. Attractive design and various styles

5. Powerful technology R&D team

6. Strict quality assurance system and perfect testing means

7. Advanced process equipment

8. Delivery on time

9. Have a good reputation in the domestic and overseas.

Contact us

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
