| Prod Model: |
TP-060 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Trade: |
Accept OEM/ODM |
| Company: |
Manufacturer/Trading Company |
| Weight: |
600kg |
| Sample Order: |
Accept |
| Shipment: |
by Air or by Sea |
| Application: |
Power System |
Product Description

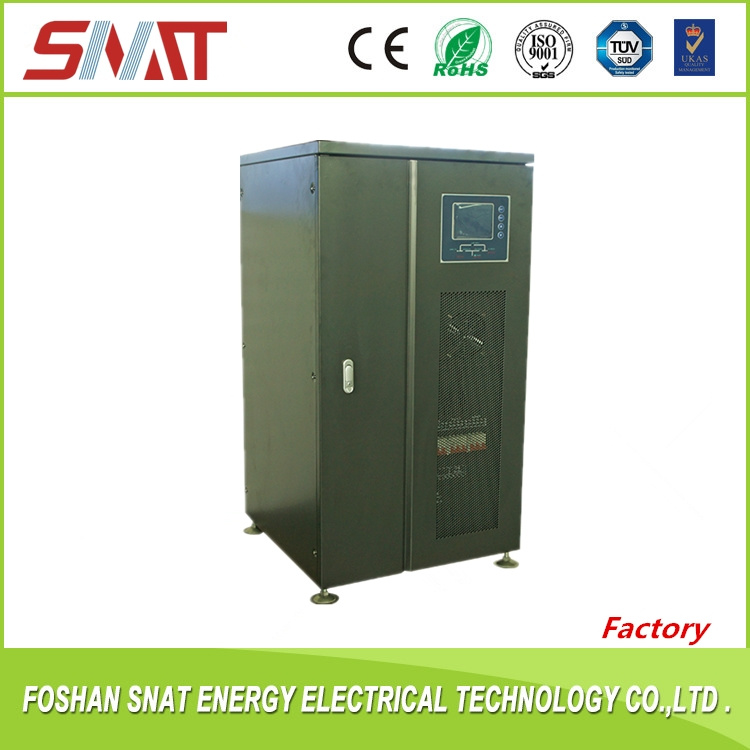

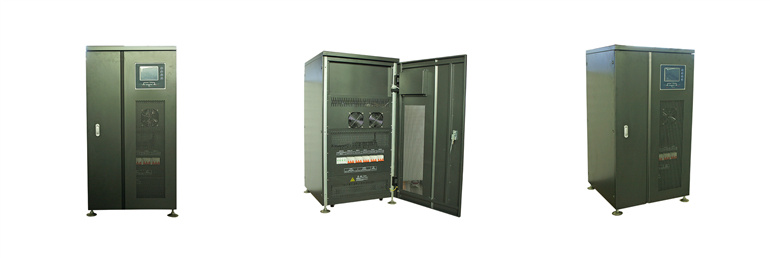

60kw Three Phases IGBT Inverter for Solar Power System
PRODUCT OVERVIEW
Product can provide reliable power supply protection for large data centers, network computer rooms as well as the electric power link of fields such as manufacturing, traffic and energy to meet the high reliability requirement of users for large-power invertersBased built-in MCUs, the product can output stable and pure sine waves and provide safe and reliable power supply protection for user advanced operation mode
MAIN FEATURES
+Advanced operation mode
Frequency tracking, phase-locking voltage stabilization, noise filtering and prevention of impact by fluctuation of the power grid realized in output of the inverter the best power supply guarantee for the loading equipment of users contribution by a full digital vector control technology based on real-time processing by DSP, MCU and DDC
+Efficient IGBT (insulated gate bipolar transistor) inversion technology
Good high-speed switching feature, large-voltage and large-current operating characteristics and voltage drive of IGBT (the fifth-generation IGBT has a lower saturation voltage drop and higher operation efficiency and reliability)
+High adaptability
A wide range of input frequency (45Hz-65Hz), which realizes stable operation of fuel generators
+Greater loading capacity
Suitability for industrial applications such as machine tools and wire cutters
+Reliable performance
A power-on test function for timely discovery and elimination of potential hazards high stability and reliability guaranteed by integration of function including AC input over-voltage protection, output overload protection, short circuit protection, over-current protection, bus over-voltage protection, overheat protection, fan fault protection, auxiliary power supply fault protection, battery overcharge protection
+Management function
Big LCD, visualized display of operation statuses through flow charts, intelligent icon touch buttons, tabular data, event records and more visualization of parameters of the inverter by means of communication with a computer via a RS232/485 interface with help of intelligent monitoring software of the inverter
+Intelligent battery management
Intelligent battery charge: adjustment of the battery charge parameter according to the battery configuration of the user and switching between equalizing charge and floating charge, temperature compensating charge and discharge management according to the power supply conditions, which may make the battery lifespan longer and reduce burden of the administrator
Intelligent battery fault detection: measurement of single parameters, display of the measurement results on the LCD and immediate alarming and notification for the administrator upon any battery fault
+Personalized settings
Proper adjustment of the input parameters according to the input power supply conditions
TECHNOLOGY INDEXES| Model-TP | 60kW |
| Rated capacity | 60kW |
Operation mode
and principle | PWM(pulse width modulation)based on DSP accurate control technology and double built-in MCUs complete isolation of the output power supply |
| ACinput | phase number | Three-phase+N+G |
| voltage | 220/382V AC ±20% |
| frequency | 50/60Hz ±5% |
| DC input | DC voltage | 192/220/240/384V DC (16 to 32 pieces of 12V batteries) |
| Floating battery | 13.6V of each battery * battery quantity (13.6V * 16 batteries=217.6) |
| Cut-off voltage | 10.8V of each battery * battery quantity (10.8V*16batteries=172.8v) |
| AC output | Phase number | Three-phase +N+G |
| AC output voltage | 220/380V AC ±1%(steady load) |
| AC output frequency | 50/60Hz±5%(mians supply )50hz±0.01% |
| Efficiency | ≥95%(load:100%) |
| output waveform | Sine wave |
| THD | Linear load: <3%.non-linear load:<5% |
| Dynamic load voltage transient | <±5%(jump from 0 to 100%) |
| Instant recovery time | <10ms |
time of switching between
the battery and the mains supply | 3-5s |
| Unbalanced voltage | <±3% <±1%(balanced load voltage) |
| Overload capacity | 120%, 20s, >150%, 100ms |
| System indexes | Operation efficiency | ≥95%(load:100%) |
| Computer communication interface | RS232/485(SNMP remote monitoring network adapter) |
| Operating temperature | -10 to 40°C |
| Relative humidity | 0-90%(no condensation) |
| Noise | 40-50dB |
| Structure | External dimensions | 580*750*920 |
| Weight | 600 |
FAQ:
Q1: MOQA: MOQ from our company is required 1 unitQ2: Are you manufacturer or trading company?A: We are professional manufacturer since 2004Q3:I need this product and wanna a system for family/industrial/commerical using, can you help me? A: Yes, we have a professional technology team average 10 years' experience, they can design solar power system in accordance with customers' special requirements.Q4: How long is your delivery timeA: Within 15 daysQ5:How about your after-sales service?A:Our quality warranty for 2 years; any parts will be shipped for free during warranty period.Q6: Why choose us?A1)Prompt delivery and good after-sale services.
A2)We have our own factory,the selling prices is competitive.
A3)All of our products are certified with CE, RoHS, ISO9001:2008.
A4)100% new materials for production and superior quality.
A5)Professional R&D technology team average 10 years experience.
Company profileAs a worid's leading supplier for solutions for electric energy and new energy and an electric energy company specialized in new energy, SNAT has powerful strength and is engaged in both electric energy and new energy. Its main five kinds of products including inverters, U PS, solar controllers. solar inverters and batteries are widely used in the electric power market, the infrastructure market and the industrial market Since its establishment. SNAT has been being a pioneer in the world's new energy field
