60mm 1.8 Degree Enhanced Hybrid Stepper Motor (MP060NB100)

Name: 60mm 1.8 Degree Enhanced Hybrid Stepper Motor (MP060NB100)
Brand: all-electronics-online.com
SKU: 675319341
Availability: InStock
Rating: 4.7 (40 reviews)

Price:	US $ 17.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MP060NB100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle:	1.8degree
Step Angle Accuracy:	±5%
Resistence Accuracy:	±10%
Inductance Accuracy:	±20%
Ambient Temperature:	-20 Until 50deg. C
Dielectric Strength:	500VAC with 1minute
Rotation:	Cw Seen From The Front Flange
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Magnetic-Electric
Certification:	CE
Brand:	Exmek

Product Description

General information

Step angle accuracy: 1.8°±5%
Temperature rise: 80°C max
Ambient temperature: -20°C~+50°C
Insulation resistance: 100M(OHMS). min., At 500V
Dielectric strength: 500V AC, 1S, 2mA
Insulation class: B

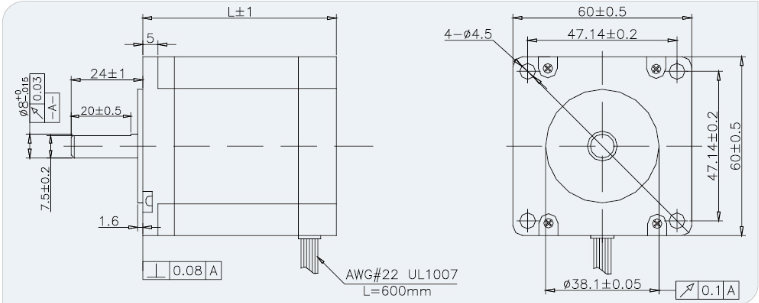

Mechanical

Specifications

Part NO.	MP060NB100
Connection	Parallel	Series	Unipolar
Phase current	2.8 (A)	1.4 (A)	2 (A)
Phase resistance	0.75 (OHMS)	3 (OHMS)	1.5 (OHMS)
Phase inductance	2 (mH)	8 (mH)	2 (mH)
Holding torque	110 (Ncm)	110 (Ncm)	78 (Ncm)
Detent torque	6 (Ncm)	6 (Ncm)	6 (Ncm)
No. of wires	8	8	8
Rotor inertia	275 (g.cm²)	275 (g.cm²)	275 (g.cm²)
L	45 (mm)	45 (mm)	45 (mm)
Weight	0.6 (g)	0.6 (g)	0.6 (g)

Provide customized service.

Exmek Electric

Exmek Electric is principally engaged in the manufacturing and marketing of wide range of precision, high performance electric-mechanical drive components in mainland China. With our three production facility close to Shanghai, we are capable of providing you with more than 200 different types of motors, in range of diameter from 20mm to 120mm.

This include:

DC Brush Motor

DC Brushless Motor

Stepping Motor

Linear Motor

Gear Motor

And also Motor Components, assembly, & More...

Our comprehensive product line is normally sold to medical equipment, industry automation, office automation, printer device, all kinds of industry where quality and long term value is in highest priority. Not only focusing on OEM items with volume quantity for endusers or machine builder, we also work on middle and small quantity items. We are not only interested in motor and motor parts, but also keen on subassembly with added value for your project development. Reliability and consistency is always what we pursue in daily work.

Besides our in house production of DC brush and brushless motors, stepping motors, we are also organized to serve our loyal customer with versatile outsourcing products, through our ISO9001 quality assurance system.
