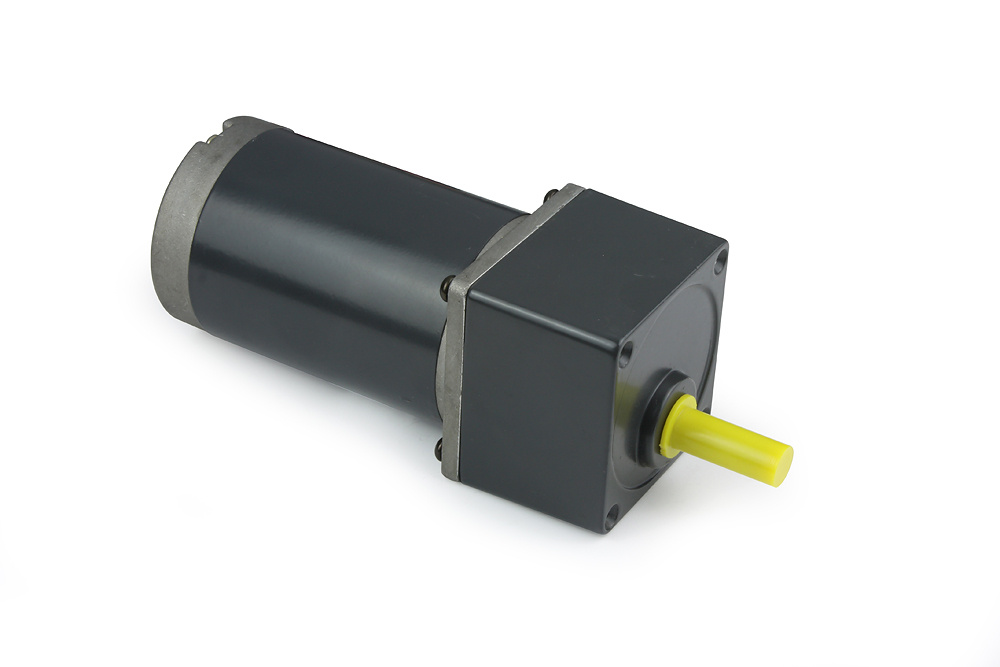

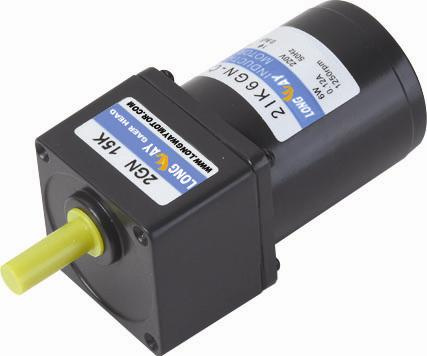

60mm AC Gear Motor for Packing Machine

Name: 60mm AC Gear Motor for Packing Machine
Brand: all-electronics-online.com
SKU: 733163305
Availability: InStock
Rating: 4.3 (145 reviews)

Price:	US $ 29/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DC2GN6-12/2GN3K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Stator:	Single-Phase
Function:	Driving
Certification:	CE,RoHS
Brand:	Longway

Product Description

1.motor size:60*60
2.motor power:6W
3.motor voltage:110/220VAC
4.rated speed:1250/2700r/min
5.reduction ratio:3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 200
6.Usage:
Our Can Be Widely Used In Medical Appliance, Packing Mechanism, Printing Mechanism, Cup Making Machine, Textile Machinery, And So On.

Model of Motor		Output	Voltage	Frequency	Poles	Duty	Rated				Starting Torque		Capacitor/Ve
Model of Motor		Output	Voltage	Frequency	Poles	Duty	Speed	Current	Torque		Starting Torque		Capacitor/Ve
Motor	Motor with gear shaft	W	V	Hz	P		r/min	A	N.m	Kgf.cm	N.m	Kgf.cm	μF/VAC
2IK6A-A	2IK6NG-A	6	1ph110	50	4	CONT	1250	0.2	0.05	0.45	0.06	0.55	3.0/250
2IK6A-C	2IK6NG-C	6	1ph220	50	4	CONT	1250	0.1	0.05	0.45	0.07	0.7	0.8/450
2IK6A-D		6	1ph220	50	2	CONT	2700	0.11	0.02	0.21	0.04	0.4	0.8/450
2IK6A-S	2IK6NG-S	6	3ph220	50	4	CONT	1250	0.15	0.05	0.46	0.12	1.5	/
2IK6A-S3	2IK6NG-S3	6	3ph380	50	4	CONT	1250	0.05	0.05	0.46	0.12	1.5	/

You can see this model details here http://www.longwaymotor.com/p_detail.php?cata_code=p-4&id=124

Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.

The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.

"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
