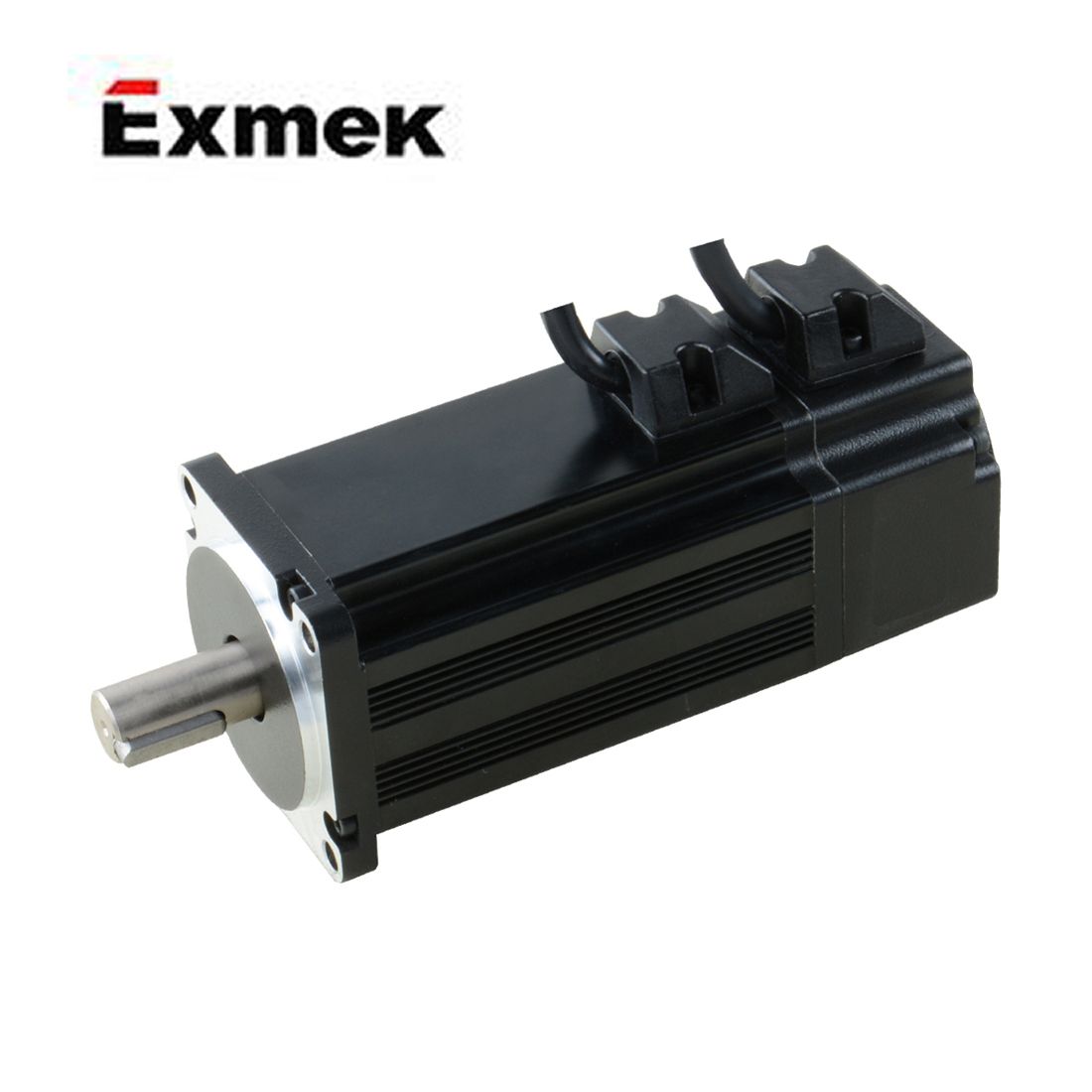

60mm Brushless Servo Motor with 3000rpm 1.3nm (SE060AS300)

Name: 60mm Brushless Servo Motor with 3000rpm 1.3nm (SE060AS300)
Brand: all-electronics-online.com
SKU: 831624645
Availability: InStock
Rating: 4.9 (63 reviews)

Price:	US $ 120/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	(SE060AS300)
Application:	Power Tools
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Brand:	Exmek

Product Description

Product Description

General information

8 poles with three phases
18 slots distribution winding, skew stator design for low cogging
Insulation class F
Higher resolution encoder available
Higher voltage available
IP65 class available

Specifications

Specification	SE060AS300
Supply Voltage(reference)	48 (VDC)
Rated Continuous Torque	1.3 (Nm)
Rated Speed at Cont.Torque	3000 (rpm)
Rated Continuous Stall Current	18.41 (A)
Rated Continuous Output Power	410 (W)
Motor Constant	0.1408 (Nm/√W)
Torque Constant	0.0745 (Nm/A)
Voltage Constant	7.8 (V/krpm)
Terminal Resistance	0.28 (Ω)
Inductance	0.33 (mH)
Rated Peak Current	56.89 (A)
Rated Peak Torque	4.05 (Nm)
Coulomb Friction Torque	0.025 (Nm)
Insulation Class	F
Rotor Inertia	2.66E-03 (Kg.m²)
Motor Weight	1.54 (Kg)
Feedback Device	2500p/rev incremental encoder
Motor Length	141 (mm)

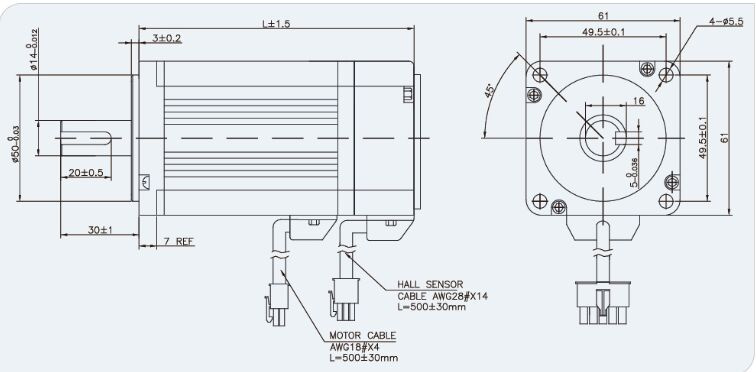

Mechanical

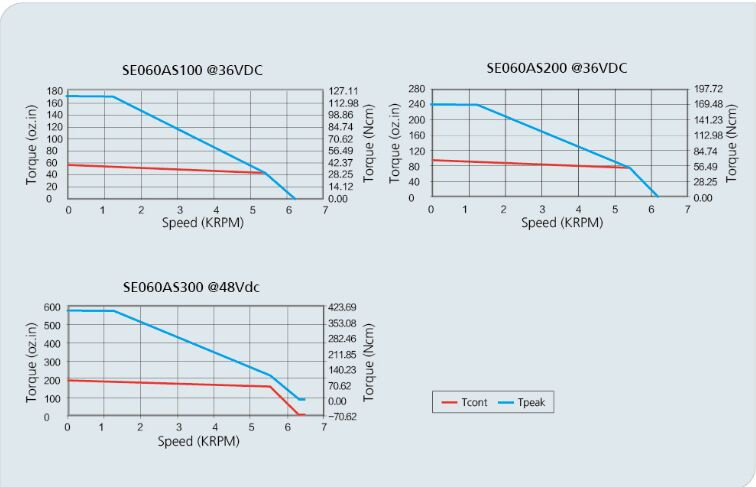

Characteristic diagram

Special shaft and other mechanical characteristic are optional.

Exmek Electric

Exmek Electric is principally engaged in the manufacturing and marketing of wide range of precision, high performance electric-mechanical drive components in mainland China. With our three production facility close to Shanghai, we are capable of providing you with more than 200 different types of motors, in range of diameter from 20mm to 120mm.

This include:

DC Brush Motor

DC Brushless Motor

Stepping Motor

Linear Motor

Gear Motor

And also Motor Components, assembly, & More...

Our comprehensive product line is normally sold to medical equipment, industry automation, office automation, printer device, all kinds of industry where quality and long term value is in highest priority. Not only focusing on OEM items with volume quantity for endusers or machine builder, we also work on middle and small quantity items. We are not only interested in motor and motor parts, but also keen on subassembly with added value for your project development. Reliability and consistency is always what we pursue in daily work.

Besides our in house production of DC brush and brushless motors, stepping motors, we are also organized to serve our loyal customer with versatile outsourcing products, through our ISO9001 quality assurance system.
