Wuxi Fangneng Automation Technology Co., Ltd. >> 60mm Low Cogging DC Brushless Electrical Motor (60AES Series)

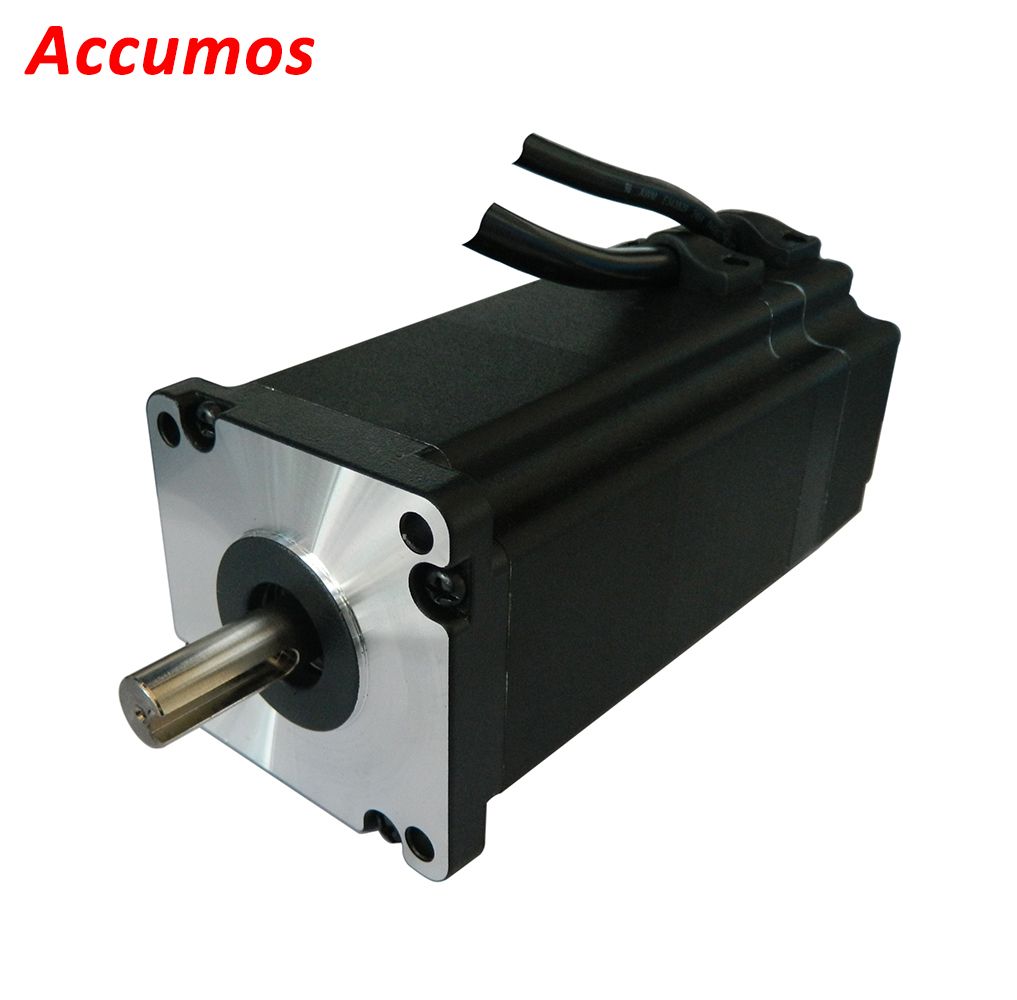

60mm Low Cogging DC Brushless Electrical Motor (60AES Series)

60mm Low Cogging DC Brushless Electrical Motor (60AES Series)
Price: US $ 40/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Paypal
Prod Model: 60AES Series
Insulation Class: Class B or Higher on Request
Application: Power Tools
Operating Speed: Adjust Speed
Excitation Mode: Excited
Structure And Working Principle: Brushless
Certification: Ce, RoHS
Brand: Accumos

Product Description

60AES Series DC Brushless Motor

8 poles with three phases
12 slots design for low cogging
NEMA 26 Mounting flange
Insulation class B, higher insulation class on request
Encoder available
Sintered Neo Magnet power range:70W~240W

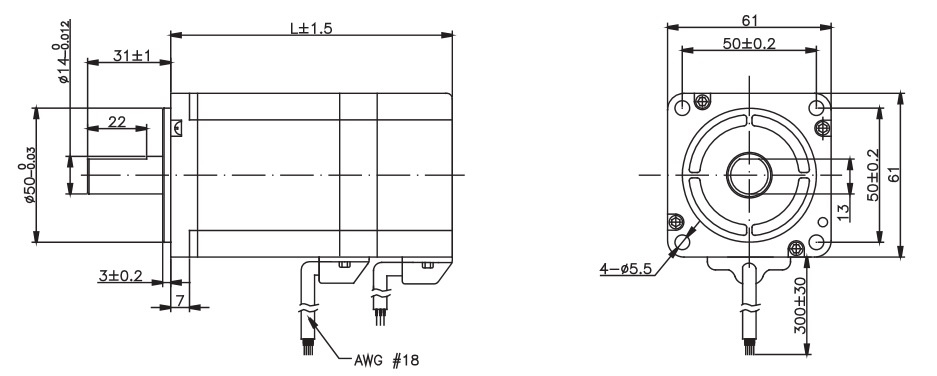

Mechanical

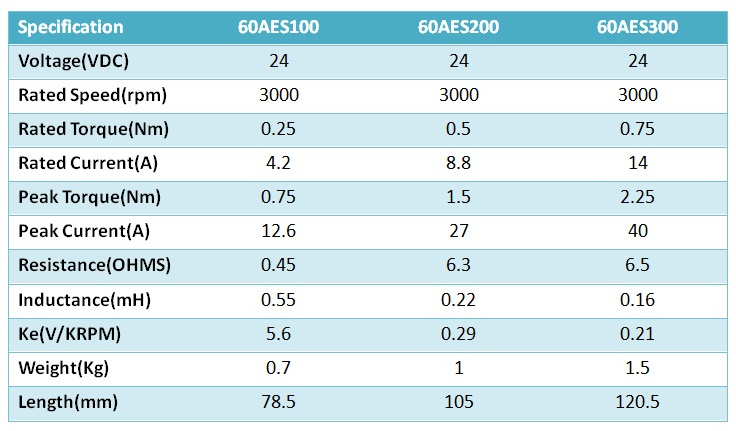

Specifications



Characteristic Diagram





Accumos, as a global supplier who integrated R&D, manufacturing, marketing on DC motor and industrial automation, is committed to providing the customers with high-efficient and economical power solutions.

Our factory was founded at April, 2007. The primitive name is Wuxi Kaikai Electromechanical Co., Ltd. At that time, we started to export the motors to the foreign countries. But almost were the OEM items. After many years of practice and research, we accumulated valuable technology and experience. Since 2013, our group started to export to abroad directly. And increased the branch, Wuxi Fangneng Automation Technology Co., Ltd.

Our products cover DC brush motor, DC brushless motor, stepper motor, gear motor and so on. We not only focus on OEM items with volume quantity, but also work on middle and small quantity item. Keen on subassembly with added value and reduce procurement costs for your project is our target. It's conducive to improve the customer's ecomomic performance and market competitiveness.
