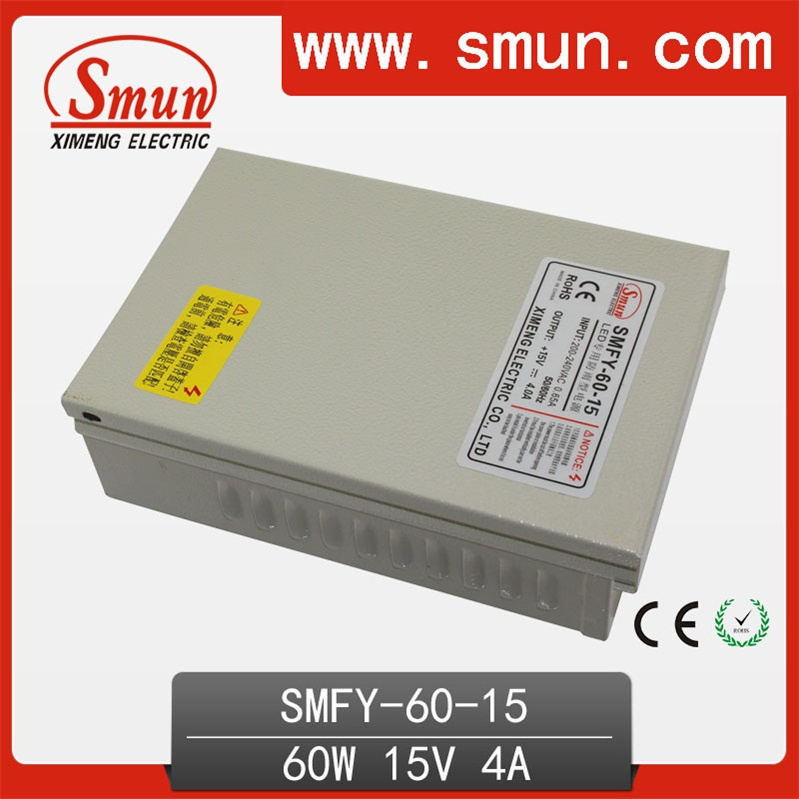

| Prod Model: |
SMFY-60-15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Smfy-60-15 |
| Power: |
60W |
| Input: |
170-264VAC 240-370VDC |
| Output: |
15V 4A |
| Size: |
160*105*55mm |
| Weight: |
0.5kg |
| IP Degree: |
IP40 |
| Working Temperature: |
-10~+60 Degree C,20%~90%Rh |
| Safety Standard: |
En60950 UL60950 GB4943 |
| DC Adjustable: |
10% |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
51 - 100W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
RoHS |
| Brand: |
Smun |
Product Description
1. What is the Switching Power Supply (SPS)?
SPS is an electronic equipment that turn 110VAC or 220VAC into DC output. Our normal DC output is 5Vdc, 12vdc, 15vdc, 24vdc, 48vdc. Also we accepted customized.
2. How many road of output for SPS?
Four kinds.
Single output: 5Vdc, 12vdc, 15vdc, 24vdc, 48vdc
Dual output: 5v/12v, 5v/24v, 12v/24v
Triple output: +/-5v / 12v, +/-12v/5v, +/-15v/ 5v, 5v/15v/24v
Quad output: +/-5v and +/-12v, +/-5v and +/-15v, +/-5v and 12v and 24v, +15v and +/-15v and +24v
3. How many kinds of SPS according to different used?
Non waterproof LED
Waterproof led driver
Rain-proof SPS
Din rail
Adapter
4: What is mean of the SPS model?
5. Similar products
Package and shipping
Our services
If you can cooperate with us, we will be honored and you will benefit from:
* The good construction warranty1~2 years
* Your client satisfied on the right schedule and quality
* Your can get good reputation from your market and obtain more orders
* Our professional service before and after sale
* The free samples after your first 3 orders
* The reasonable price
* Any questions from you are welcome and will be replied in 24 hours
Company information
1. Q: Are you a factory or trading company? How many people work in your company?
A: We are a factory and we got 500 workers till this year.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Wenzhou City, Zhejiang Province, China, about 1.5 hours from Guangzhou by air. All our clients, from home or abroad, are warmly welcome to visit us!
3. Company show
Pic1
Pic2
4. Exhibition Show
FAQ:
1. What is the MOQ?
We have international retail store, so our MOQ is 1 piece.
2. How can I get some samples?
A: We are honored to offer you samples.
3: What's your brand?
A: Smun pic. If you have good quantity, it absolute no problem to do OEM, ODM.
| Model |
| SMFY-60-12 | SMFY-60-15 | SMFY-60-24 | SMFY-60-48 |
| Output | DC output Voltage | 12V | 15V | 24V | 48V |
| Voltage tolerance | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| Rated Current | 5A | 4A | 2.5A | 1.25A |
| Related Power | 60w | 60w | 60w | 60w |
| Wave&Noise | 50mVp-p | 50mVp-p | 50mVp-p | 100mVp-p |
| Set up,rise,hold up time | 200ms 100ms 30ms |
| Input | Voltage Range | 170-264VAC 47-63HZ 240-370VDC |
| Input Current | 0.65A/230VAC |
| Efficiency | 78% | 78% | 82% | 84% |
| AC inrush current | Cold start current 36A /230VAC |
| Leakage current | <0.5mA/240VAC |
| Protection | Overload | Related output power 105-135% start overload protection |
| Protection type: hiccup mode, recovery after restart power |
| Over voltage | Reted output power 135-150% start over voltage protection |
| Protection type: hiccup mode, recovery after restart power |
| Environment | Working temp humidity | -10~+60°C 20%~90%RH |
| Stor temp, humidity | -20~+85°C 20%~90%RH Non-condensing |
| Withstand vibration | 10-500Hz,2G 10min/Ccle, period for 60min, each axes |
| Safety | Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.5KVA |
| Isolation resistance | I/P-O/P: I/P-FG,O/P-FG:100M Ohms/500VDC |
| Size | size | L160*W105*H55mm |
| weight | 0.5kg 30pcs/16kg |
| Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25 C of ambient temperature.2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.3.Tolerance: includes set up tolerance, line regulation and load regulation. |
