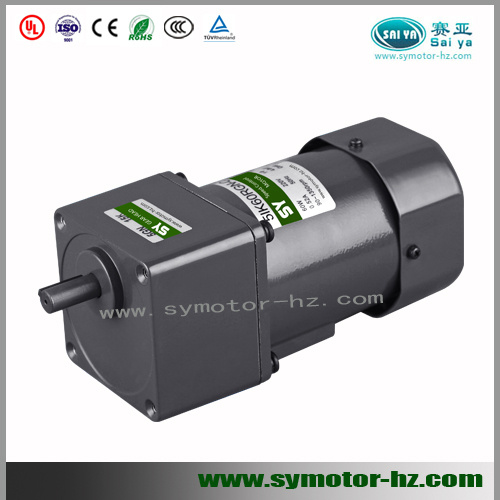

60W 90mm AC Reversible Gear Motor

Name: 60W 90mm AC Reversible Gear Motor
Brand: all-electronics-online.com
SKU: 739563485
Availability: InStock
Rating: 4.3 (125 reviews)

Price:	US $ 71.4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	5RK60GU-CF / 5GU15KB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimensions Of Device:	90mm
Power:	60W
Voltage:	220V, 230V
No-Load Speed:	1500rpm
Reduction Ratio:	3~200
Function:	Control
Number Of Stator:	Single Phase and Three Phase
Brand:	Saiya

Product Description

Welcome to our online company

1. It's only the typical data.
The gear motor can be customized if you have some special requirements
such as the gear ratio, torque and shaft dimension.
The motor price is also for reference only and it will be decided by the
reduction ratio and body's length.

2. If you have any questions, pls do not feel hesitate to ask us.
You can send us messages, emails or give us a call.

Packaging details: 12 pcs in 1 carton (optional)
Delivery Detail: 7-20 days

Features:
1) Dimensions of device: 42mm, 60mm, 70mm, 80mm, 90mm, 104mm
2) Power: 6W, 15W, 25W, 40W, 60W, 90W, 120W, 140W, 180W
3) Voltage: Single phase 100V50/60Hz4P;
Single phase 100V50Hz2P;
Single phase 220/230V50Hz4P
Single phase 220V50Hz2P
Single phase 110/120V60Hz4P
Single phase 220/230V60Hz4P
3-Phase 200/220/230v50/60Hz4P
3-Phase 380/400/415V50/60Hz4P
3-Phase 200/220/230V50/60Hz2P
3-Phase 300/400/415V50/60Hz2P
4) Shape of motor shaft: 1) GN Type: Pinion Shaft
2) GU Type
3) Round Shaft
4) Keyway
5) Gear type: 1) GN Type Gear
2) GU Type Gear

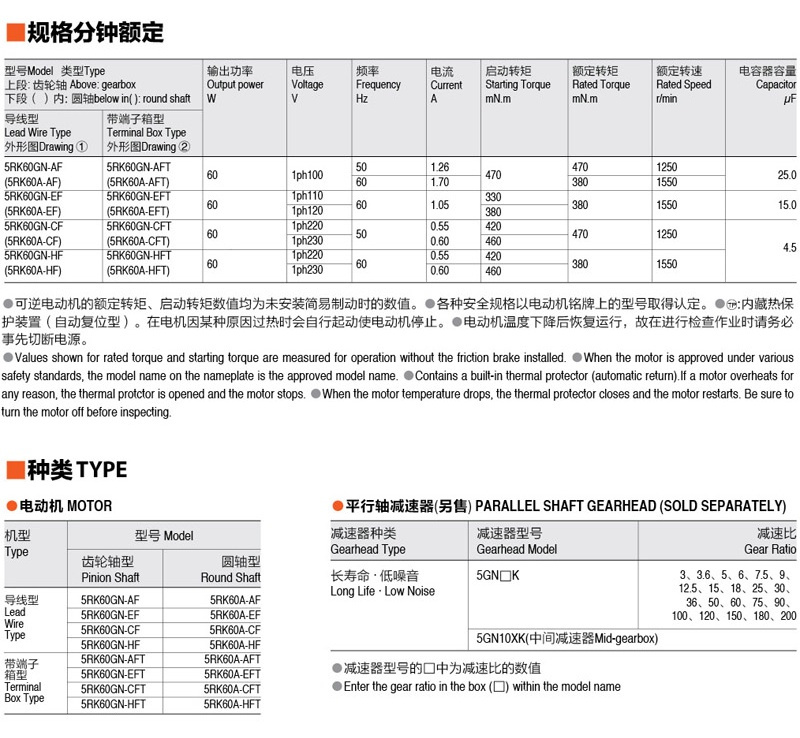

The Data Sheets:

Our company is specialized in mirco AC gear motors.
At present, there are three kinds of motors in our company:
1) micro gear motor include AC gear motor and DC gear motor;
2) small AC gear motor;
3) high precision planetary gearbox.

The usages:
They are widely used in machine tools, textile machinery, medical appliance, conveying machines, printing mechanism, food machinery, vending machines, packing machinery, and gumming machines.

The good quality:
With excellent equipment, advanced procedure, scientific management, and modern test method, we can provide all customers both at home and abroad with our top quality products, favorable prices and sincere service.

We hope that we canestablish long-term business relationships together with you for mutual business success.

If you have any questions, pls do not feel hesitate to ask us.
You can send us messages, emails or give us a call.

The brief introduction of our company:

Our company supplys different kinds of products. High quality and reasonable price.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

To perfect our service, we provide the products with good quality at the reasonable price.

The Products Of Our Company:

Our Company Is Specialized In Gear Motors. At Present, There Are Three Kinds Of Motors In Our Company:

1) Micro Gear Motor Include Micro AC Gear Motor And Micro DC Gear Motor;

2) Small AC Gear Motor;

3) Planetary Gear Motor.

The Usages Of Our Products:

They Are Widely Used In Machine Tools, Textile Machinery, Medical Appliance, Conveying Machines, Printing Mechanism, Food Machinery, Vending Machines, Packing Machinery, And Gumming Machines. With Excellent Equipment, Advanced Procedure, Scientific Management, And Modern Test Method, We Can Provide All Customers Both At Home And Abroad With Our Top Quality Products, Favorable Prices And Sincere Service.

You Can Tell Us About Your Requirements, And We Will Help You To Find The Right Type And Model Which Is Suitable For Your Products. Or You Can Also Provide Your Products Information And We Can Help You To Choose The Right Motors For You.

We Hope That We Can Establish Long-term Business Relationships Together With You For Mutual Business Success.

Motor Voltage, Power, And Speed Will Be Customized According To Your Request Under The Allowed Circumstanced Of Adoptable Dimension
