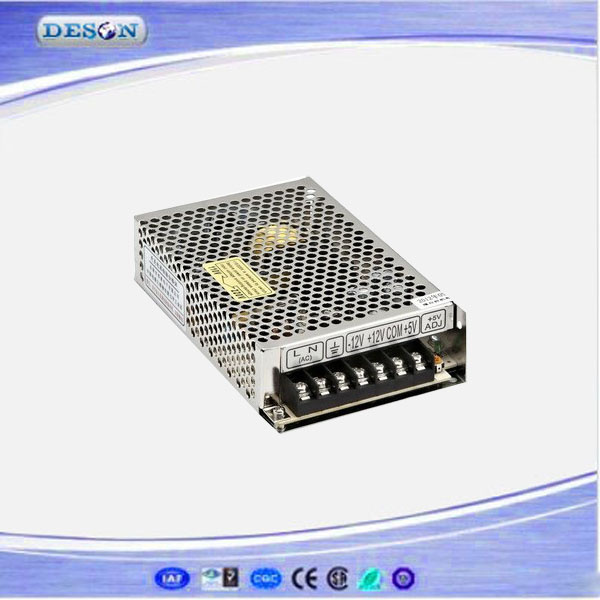

60W Quad Output Switched Mode Power Supply

Prod Model:	Q-60
Power:	60W
Input:	85 ~ 132VAC / 170 ~ 264VAC Selected by Switch 240
Output:	5V/12V/24V
Size:	129X97X35mm
Weight:	0.6kgs
Output Type:	Quad
Warranty:	2 Years
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Output Power:	60W
Brand:	Deson
Energy Transmission:	Switched Mode Power Supply

Product Description

60W Quad Output Switched Mode Power Supply

1.Universal AC Input
2.Compact size, light weight.
3.Protection : short circuit/Overload/Over voltage/ Over temperature
4.Cooling by free air convection
5.100% full load burn-in test
6.Quad Output Channel
7.Soft-start current can reduce  the AC input impact effecticly
8. 2 years warranty


Product Description


MODEL		Q-60B				Q-60C
		CH1	CH2	CH3	CH4	CH1	CH2	CH3	CH4
OUTPUT	DC VOLTAGE	5V	12V	-5V	-12V	5V	15V	-5V	-15V
	VOLTAGE TOLERANCE	±2%	±6%	±5%	±5%	±2%	±6%	±5%	±5%
	RATED CURRENT	5.5A	2A	0.5A	0.5A	5.5A	1.5A	0.5A	0.5A
	CURRENTRANGE	0.5-8A	0.1-3A	0-1A	0-1A	0.5-8A	0.1-3A	0-1A	0-1A
	RATED POWER	60W	60W	60W	60W	65W	65W	65W	65W
	RIPPLE &NOISE(MAX)	100mVp-p	120mVp-p	100mVp-p	120mVp-p	100mVp-p	120mVp-p	100mVp-p	120mVp-p
	DC VOLTAGEFRE QUENCYRANGE	CH1:+10,-5%
	SETUP,RISE,HOLD TIME	1.6ms,20ms,12ms/115VAC800ms,20ms, 60ms/230VAC
INPUT	VOLTAGERANGE	85~264 VAC47-63Hz;20~370VDC
	AC CURRENT	1.3A/115 V0.8A/ 230 V
	EFFICIENCY	70%
	INRUSH CURRENT	Cold start 18A/115V36A/230V
	LEAKAGE CURRENT
PROTECTION	OVERLOAD PROTECTION	150%~200% /115VAC Shut down O/P voltage, re-power on to recover
	OVER-VOLTAGE PROTECTION	CH1:5.75~6.75V
	HIGH TEMPERATURE PROTECTON	...
ENVIRONMENT	WORKING TEMP.& HUMIDITY	-10°C~+50°C;20%~90 %RH
	STORAGE TEMP.& HUMIDITY	-20°C~+85°C;10%~95 %RH
	VIBRATION	10~500Hz,2G 10min./1cycle, period for 60min, each along X.Y.Z axes
SAFETY	WITHSTAND VOLTAGE	I/P-O/P:3KVACI/P-FG:0.5KVACO/P-FG:0.5KVAC
	ISOLATION RESISTANGE	I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ
STANDARDS	SAFETY STANDARDS	Design refer to UL1950
	EMC STANDARDS	Design refer to EN55022,EN55024,EN61000, IEC801-2,3,4IEC555-2
OTHERS	WEIGHT	0.56Kg
	PACKING	30pcs/17.8Kg/1CUFT
