60W Quad Output Switching Power Supply (Q-60B)

Name: 60W Quad Output Switching Power Supply (Q-60B)
Brand: all-electronics-online.com
SKU: 744086025
Availability: InStock
Rating: 4.5 (100 reviews)

Price:	US $ 9.9/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q-60B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	199X110X50
Frequency:	47-63Hz
Working Temperature:	-10--+60
Weight:	0.86kg
Output Type:	Quad
Warranty:	1 Year
Output Power:	51 - 100W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Input Voltage:	90-264VAC 127-373VDC
Brand:	Powlik

Product Description

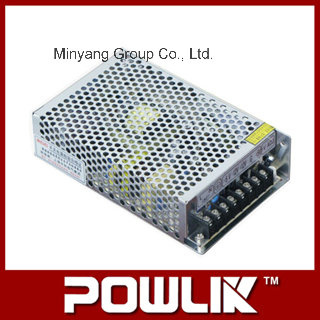

60W Quad Output Switching Power Supply (Q-60B)

100% full load burn-in test
Universal AC input: 110/220VAC± 20% selectable by switch
Fixed switching frequency at 47-63Hz
Protections: Short circuit/Overload/Over voltage
Size:199*110*50(mm)

Specification	Q-60B
	5V 5.5A	12V 2A	-5V 0.5A	-12V 0.5A
Wave and noise	100mVp-p	120mVp-p	100mVp-p	120mVp-p
Inlet stability	± 0.5%	± 1%	± 0.5%	± 0.5%
Load stability	± 0.5%	± 4%	± 1%	± 1%
DC output power	60W
Efficiency	70%
Adjustable range for DC voltage	+10, -5%
AC input voltage range	85-264VAC 47-3Hz; 120-373VDC
OverLoad protection	105%-150%hiccup mode, auto-recovery
Over Voltage protection	115%-135%hiccup mode, auto-recovery
Setup, rise, hold up time	1.6s, 20ms, 12ms/115VAC800ms, 20ms, 60ms/230VAC
Withstand voltage	I/P-O/P: 3KvAC I/P-FG: 1.5KvAC O/P-FG: 0.5Kv 1minute
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG: 500VDC/100MΩ
Working temperature	-10-----+60
Safety standards	Design refer to 1950,TUV EN60950
EMC standards	Design refer to EN55022(CISPR22),EN61000-3-2,-3,EN55024,EN61000-4-2,3,4,5,6,8,11; ENV50204
Weight	0.86Kgs

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

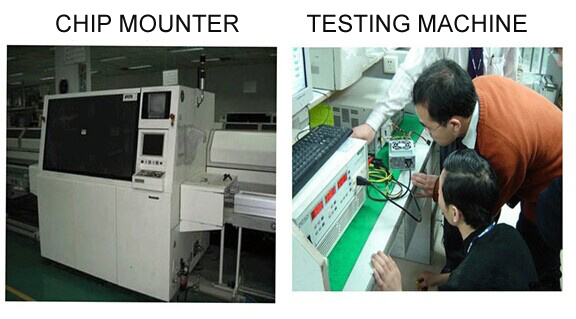

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
