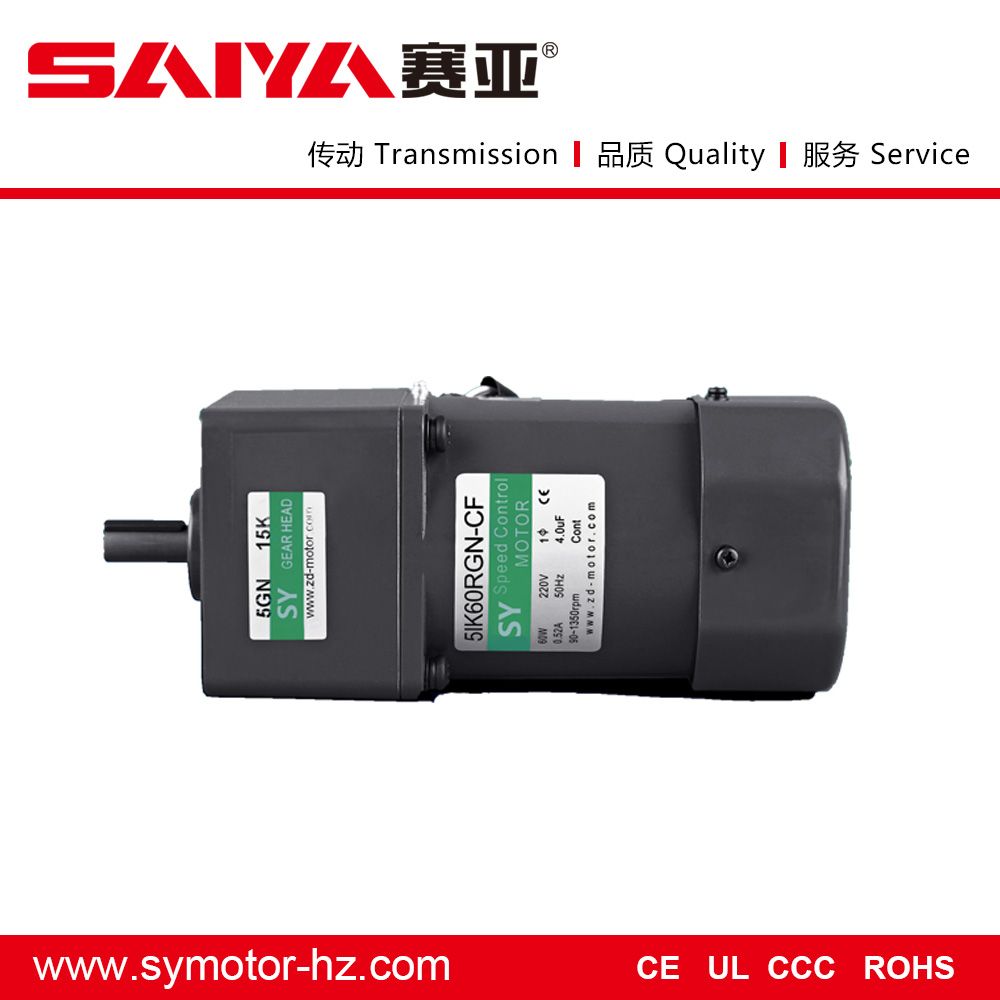

60W Single Phase AC Induction Motor with Gear Reducer and Speed Controller

Name: 60W Single Phase AC Induction Motor with Gear Reducer and Speed Controller
Brand: all-electronics-online.com
SKU: 805993215
Availability: InStock
Rating: 4.4 (30 reviews)

Price:	US $ 62.5-71.5/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	5IK60RGN/5GN18K
Dimensions Of Device:	90mm
Power:	60W
Voltage:	220/230V
No-Load Speed:	1500rpm
Reduction Ratio:	3~200
Speed Control Range:	90~1400r/Min
Item Name:	60W Single Phase AC Induction Motor with Gear Redu
Function:	Control
Number Of Stator:	Other
Brand:	Sy Motor
Certification:	Ce UL RoHS

Product Description

60w single phase ac induction motor with gear reducer and speed controller

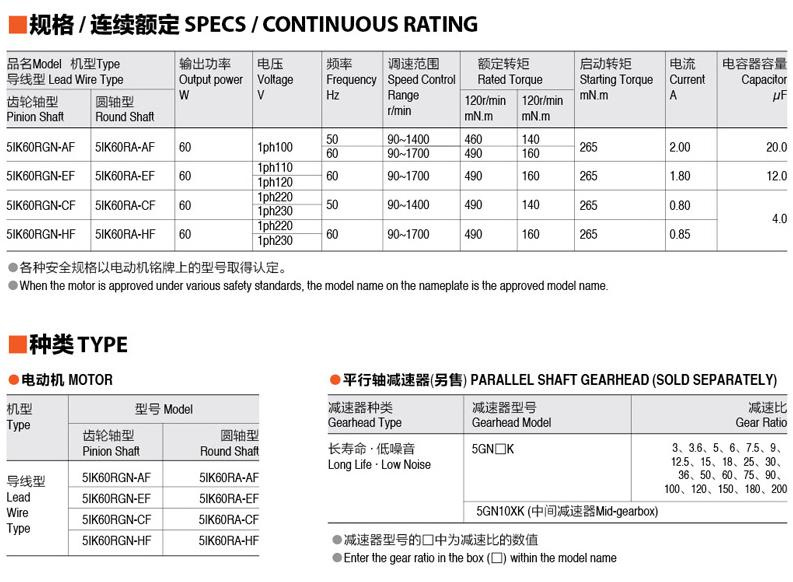

1 Specification:

1. Dimensions of device: 60mm, 70mm, 80mm, 90mm, 104mm
2. Power: 6W, 15W, 25W, 40W, 60W, 90W, 120W, 140W, 180W
3. Voltage:
Single phase 100V50/60Hz4P;
Single phase 100V50Hz2P;
Single phase 220/230V50Hz4P
Single phase 220V50Hz2P
Single phase 110/120V60Hz4P
Single phase 220/230V60Hz4P
3-Phase 200/220/230v50/60Hz4P
3-Phase 380/400/415V50/60Hz4P
3-Phase 200/220/230V50/60Hz2P
3-Phase 300/400/415V50/60Hz2P
4. Shape of motor shaft:1) GN Type: Pinion Shaft 2) GU Type 3) Round Shaft 4) Keyway
5. Gear type: 1) GN Type Gear 2) GU Type Gear

2 Company Show

Our company is specialized in mirco AC gear motors.
At present, there are three kinds of motors in our company:
1) micro gear motor include AC gear motor and DC gear motor;
2) small AC gear motor;
3) precision planetary gear motor.
They are widely used in machine tools, textile machinery, medical appliance, conveying machines, printing mechanism, food machinery, vending machines, packing machinery, and gumming machines.

With excellent equipment, advanced procedure, scientific management, and modern test method, we can provide all customers both at home and abroad with our top quality products, favorable prices and sincere service.

We hope that we canestablish long-term business relationships together with you for mutual business success.

3 Our Service

1 Any email or trademanager inquires will be replied within 24 hours

2 Normal samples can be offer very quickly(within 10 days)

3 Customized service for kind of motor accoring to your requirement

4 Professional Tchnical support and After-sale service

5 Sourcing motor parts like gears, encoders, cables, connectors and so on

4 Contact us

Contact Person: Kevin Kong

Fell free contact with me if have any moer questions!

The brief introduction of our company:

Our company supplys different kinds of products. High quality and reasonable price.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

To perfect our service, we provide the products with good quality at the reasonable price.

The Products Of Our Company:

Our Company Is Specialized In Gear Motors. At Present, There Are Three Kinds Of Motors In Our Company:

1) Micro Gear Motor Include Micro AC Gear Motor And Micro DC Gear Motor;

2) Small AC Gear Motor;

3) Planetary Gear Motor.

The Usages Of Our Products:

They Are Widely Used In Machine Tools, Textile Machinery, Medical Appliance, Conveying Machines, Printing Mechanism, Food Machinery, Vending Machines, Packing Machinery, And Gumming Machines. With Excellent Equipment, Advanced Procedure, Scientific Management, And Modern Test Method, We Can Provide All Customers Both At Home And Abroad With Our Top Quality Products, Favorable Prices And Sincere Service.

You Can Tell Us About Your Requirements, And We Will Help You To Find The Right Type And Model Which Is Suitable For Your Products. Or You Can Also Provide Your Products Information And We Can Help You To Choose The Right Motors For You.

We Hope That We Can Establish Long-term Business Relationships Together With You For Mutual Business Success.

Motor Voltage, Power, And Speed Will Be Customized According To Your Request Under The Allowed Circumstanced Of Adoptable Dimension
