60W Triple Output Switching Power Supply

Prod Model:	HT-60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type Of Output:	Triple Output(AC/DC to DC)
Type Of Power Supply:	Metal Case Power Supply
Output Type:	Triple
Warranty:	2 Years
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO
Output Power:	57.5~62.5
Input Voltage:	AC85~264
Energy Transmission:	Triple Output
Brand:	Dhecn

Product Description

Features:
· High efficiency, high reliability
· Universal AC input /full range
· Protections: Short circuit/ Over load/ Over voltage
· Cooling by free air convection
· LED indicator for power on
· Fixed switching frequency at 50KHz
· 2 years warranty

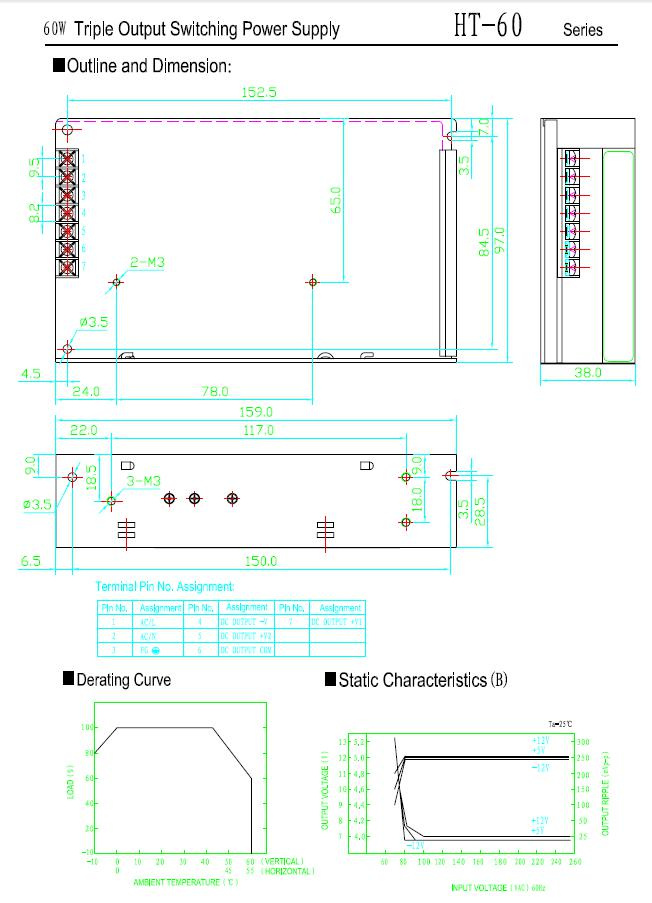

· Dimensions: 159*97*38mm(L*W*H)

Specification:

1)INPUT
· Voltage Range: 85~264 VAC47-63Hz; 120~370VDC
· AC Current: 2A/115 V1A/ 230 V
· Efficiency: 72%
· Inrush Current: Cold start 30A/115V60A/230V
· Leakage Current: <3.5mA/240VAC

2)PROTECTION
· Over Load: 105%~150% Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed
· Over Voltage: 5V: 115%~135% Protectiont type: Hiccup mode, recovers automatically after fault condition is removed

3)ENVIRONMENT
· Working Temp., Humidity: -10º C~+60º C; 20%~90 %RH
· Storage Temp., Humidity: -20º C~+85º C; 10%~95 %RH
· Vibration: 10~500Hz, 2G 10min. /1cycle, period for 60min, each along X, Y, Z axes

4)SAFETY AND STANDARD
· Withstand Voltage: I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
· Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
· Safety Standard: Design refer to UL1012, UL60950, TUVEN60950
· EMC Standard: Design refer to EN55022, EN61000-3-2, -3, EN61000-4-2, 3, 4, 5, 6, 8, 11; ENV50204, EN55024

5)OUTPUT

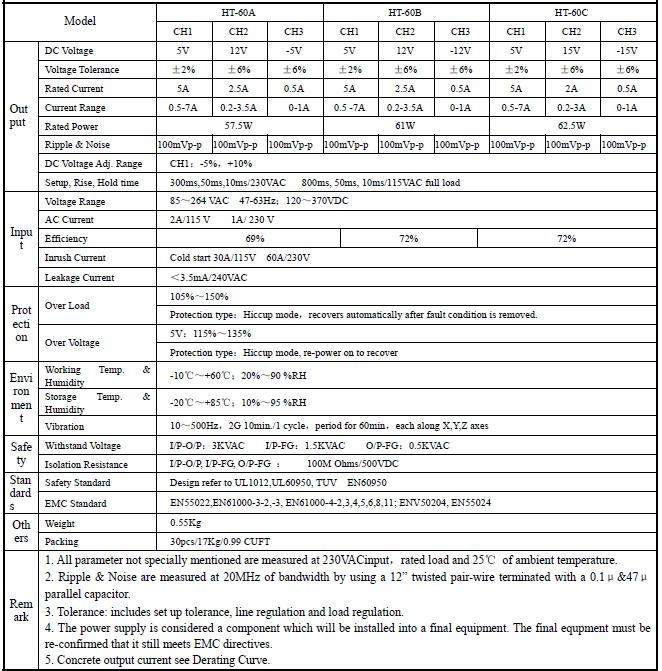

· Model: HT-60 HT-60 HT-60
CH1 CH2 CH3 CH1 CH2 CH3 CH1 CH2 CH3
· DC Voltage: 5V 12V -5V 5V 12V -12V 5V 15v -15V
· Voltage Tolerance: ± 2% ± 6% ± 6% ± 2% ± 6% ± 6% ± 2% ± 6% ± 6%
· Rated Current: 5A 2.5A 0.5A 5A 2.5A 0.5A 5A 2A 0.5A
· Current Range: 0.5-7A 0.2-3.5A 0-1A 0.5-7A 0.2-3.5A 0-1A 0.5-7A 0.2-3A 0-1A
· Rated Power: 57.5W 57.5W 57.5W 61W 61W 61W 62.5W 62.5W 62.5W
· Ripple & Noise: 100 mVp-p 100 mVp-p 100 mVp-p 100 mVp-p 100 mVp-p 100 mVp-p 100 mVp-p 100 mVp-p 100 mVp-p
· DC Adjustment Range CH1: -5%, +10%
· Setup, Rise, Hold Time 300ms, 50ms, 10ms/230VAC800ms, 50ms, 10ms/115VAC at full load
