Shenzhen Getian Opto-Electronics Co., Ltd. >> 620nm Red LED 3535 LED Diode 1W for Moving Head

620nm Red LED 3535 LED Diode 1W for Moving Head

620nm Red LED 3535 LED Diode 1W for Moving Head
Price: US $ 0.27/Piece
Min Order: 500/Piece
Pay Type: T/T
Prod Model: GT-P35R
Current: 400mA
Voltage: 2.0-2.6V
Wavelength: 620-630nm
Lumen Output: 50-60lm

Product Description

620nm Red LED 3535 LED Diode 1W for Moving Head

Features


High Cost Performance
Electrically Neutral Thermal Path
Complete corresponding components
RoHS Compliant
> 30000Hrs
SMT Solder Permeability

SeriesColorPowerVolt  CurrentWavelengthLuminous Flux /
Optical Power
GT-P35
Color
IR1W1.4-2.0V400mA840-860nm200-400mW
IR1W1.4-2.0V400mA740-750nm200-400mW
Red1W2.0-2.6V400mA640-660nm20-30LM
Red1W2.0-2.6V400mA620-630nm50-60LM
Amber1W2.0-2.6V400mA600-610nm50-70LM
Yellow1W2.0-2.6V400mA585-595nm50-70LM
Green1W2.8-3.4V350mA510-520nm
520-530nm
100-120LM
Blue1W2.8-3.4V350mA450-460nm
460-470nm
20-30LM

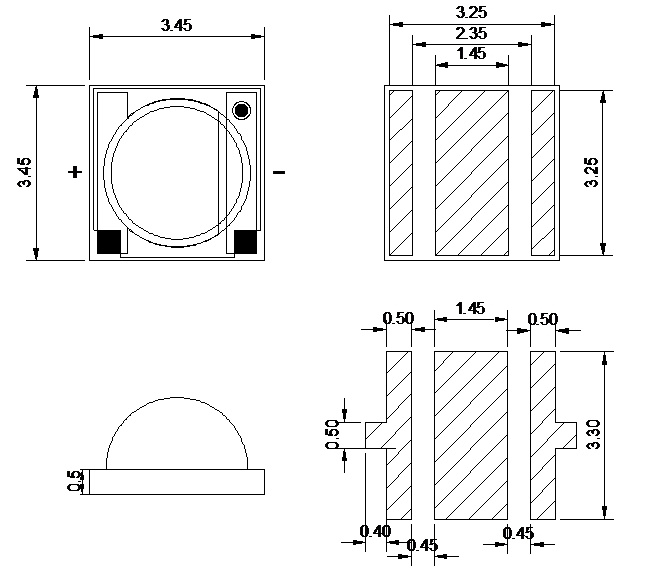

PRODUCT DIMENSION

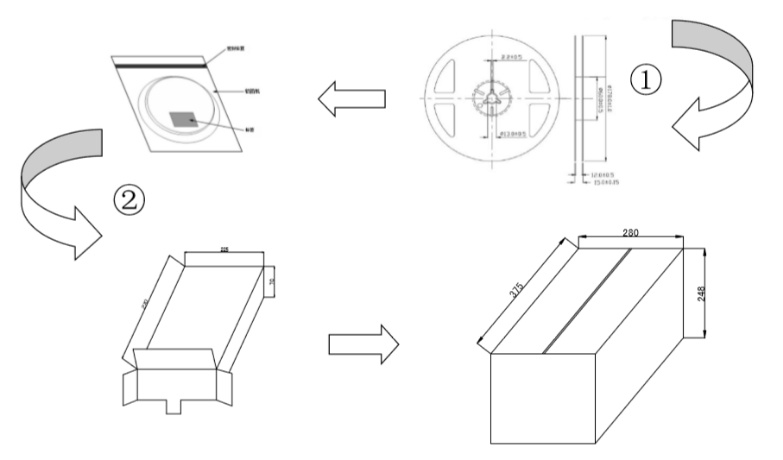

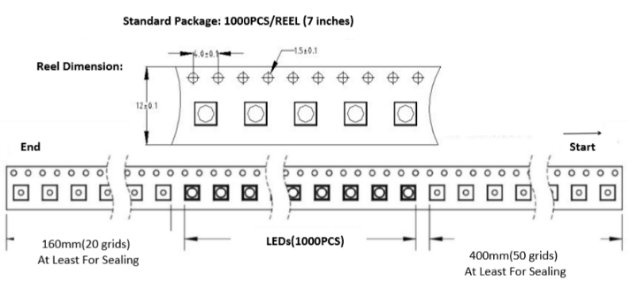

Packing Type


Application


Landscape Lighting
Plant grow Llighting
Traffic Signal Lighting
Stage Lighting
Moving Head





Contact Information






Shenzhen Getian Opto-electronics Co., Ltd. is a manufacturer specializing in LED components aiming to a global presence. Since established in 2005, GeTian has delivered the LED components products, technological innovations, and unparalleled customer trust level around the domestic and oversea marketing for over years.

Total investment is 50, 000, 000 yuan and production area is over 5, 000 square meters. Getian has 500 employees and more than 70 are R&D staffs. We have equipped full-automatic production machines for all the key manufacturing processes and full set testing machines. The annual capacity of high power LED is over 60, 000, 000PCS.

With more than 7 years' outstanding growth, Getian has become a group corporation which has high power LED, SMD LED and LED driver as the core business units. Shell fittings of LED, mold design and manufacturing are also well developed to have Getian be able to provide more comprehensive and professional service all over the world.

Getian insist that quality is one of core competence. All of the main products are listed with CE, RoHS, SGS certification and will pass in-house robust reliability testing before leaving factory. Besides, more than 12 patents have been obtained in LED design and manufacturing field. We successfully got ISO9001: 2008 certification and started running the ERP and BPC system in 2009. With all these outstanding performance, Getian achieved series of great honors, such as "Top 50 LED Manufacturer in China", "Hi-Tech. Enterprise", "Shenzhen Hi-Tech. Enterprise", and "Shanghai Expo Exhibition Enterprise", etc.

Warmly welcome all fields of friends to visit our company and negotiate trade.
