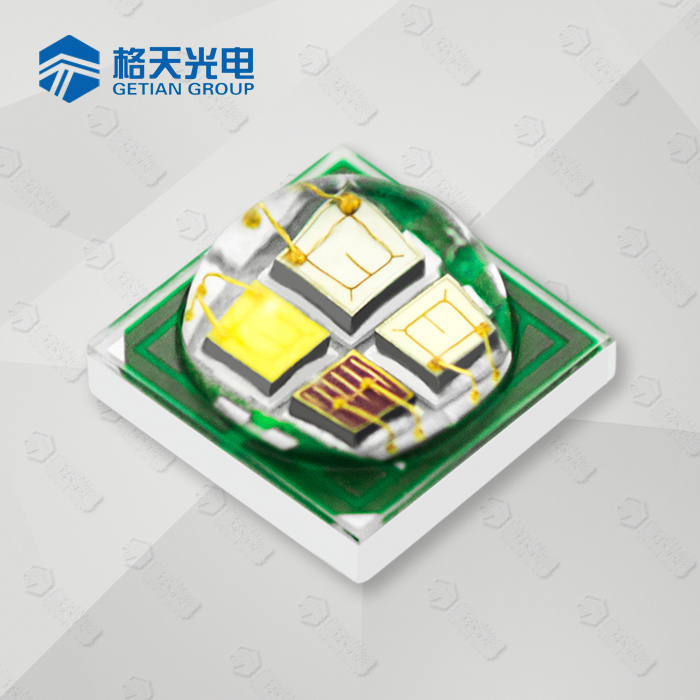

Full Color 4in1 3535 Rgbww LED Diode

Name: Full Color 4in1 3535 Rgbww LED Diode
Brand: all-electronics-online.com
SKU: 839046335
Availability: InStock
Rating: 4.4 (113 reviews)

Price:	US $ 0.85/Piece
Min Order:	4000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GT-P35RGBW
Wavelength Wl:	620-630nm 520-530nm 455-465nm 2800-3200K
Luminous Flux:	R:30-40lm,G:70-80lm B:15-25lm W:80-110lm
Forward Voltage:	R:2.0-2.5V, G:2.8-3.5V B:3.0-3.5V,W: 3.0-3.5V
Reflow Soldering Lead Free St:	220
Power Dissipation Pd:	4W
Junction Temperature Tj:	120
LED Packaging Type:	Chip
Chip Material:	InGaN
Beam Angle:	120??
Emitting Color:	RGBW
Life:	50000h
Certification:	CE
Power:	4W

Product Description

Product Description

4in1 3535 RGBW LED has stable quality because of its high thermal conductivity and high light transmittance in packaging structure. In the optical design, it solves the
application of optoelectronic products for more customers; It own core technology in
raw material collocation, tested by high temperature and humidity (temperature 85ºC, humidity 85ºC), hot and cold impact, high temperature aging and other reliability
test; The product has a very good
compatibility, operability. The design of small distance between chips can meet the high demand for mixing light, different structural applications; It has a high
advantage over the application for stage
lighting, outdoor lighting, landscape
lighting,

Application:

·Landscape Lighting

·Plant grow Lighting

·Traffic Signal Lighting

·Stage Lighting

Specification:

Name	Taiwan chip rgbw 3535 smd led diode
Chip Brand	Epistar / Epileds/Cree
Warranty	2 years
Size	3.53.52.8mm
Voltage	R:2.0-2.5V G:2.8-3.5V B:3.0-3.5v W:3.0-3.5V
Forward Current	350mA
Lifespan	50000 Hours
Packing	1000pcs/roll
Product Keywords	led smd 3535rgbw

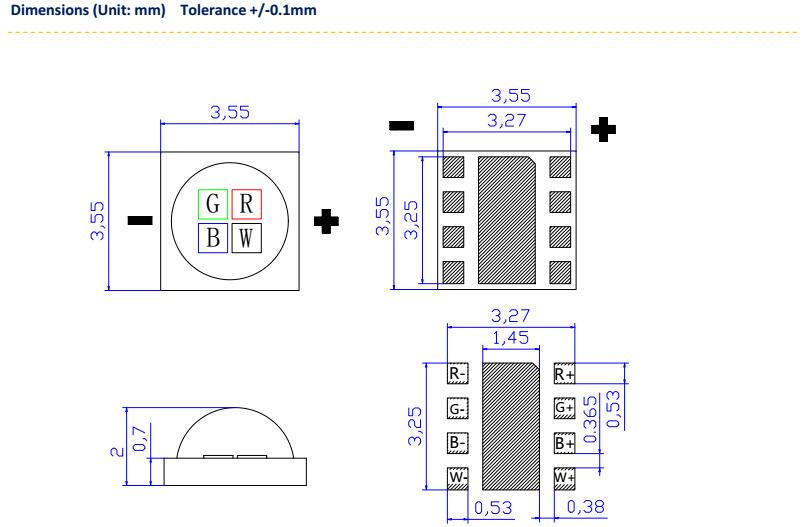

Dimension

Packing Details

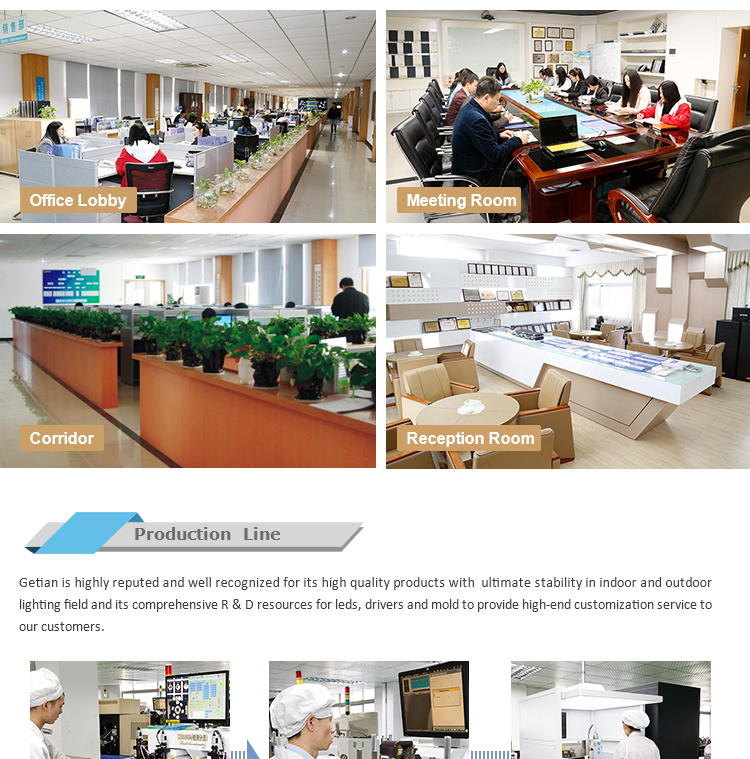

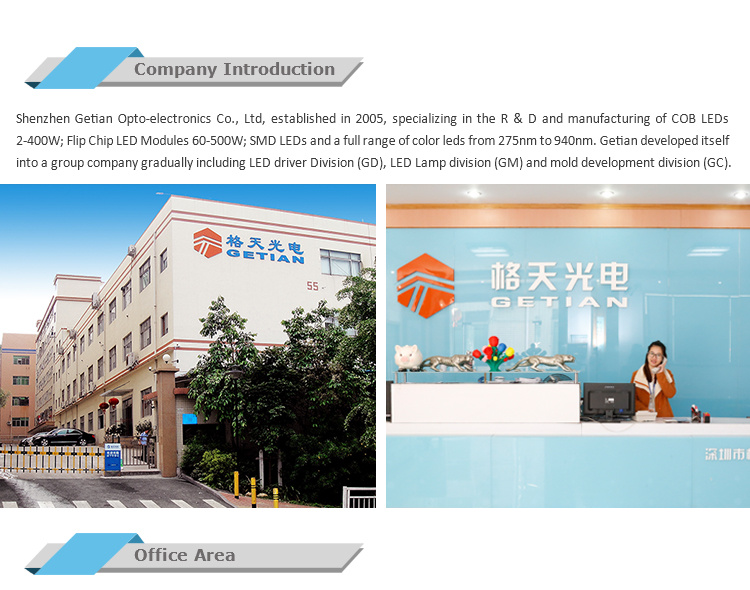

Shenzhen Getian Opto-electronics Co., Ltd. is a manufacturer specializing in LED components aiming to a global presence. Since established in 2005, GeTian has delivered the LED components products, technological innovations, and unparalleled customer trust level around the domestic and oversea marketing for over years.

Total investment is 50, 000, 000 yuan and production area is over 5, 000 square meters. Getian has 500 employees and more than 70 are R&D staffs. We have equipped full-automatic production machines for all the key manufacturing processes and full set testing machines. The annual capacity of high power LED is over 60, 000, 000PCS.

With more than 7 years' outstanding growth, Getian has become a group corporation which has high power LED, SMD LED and LED driver as the core business units. Shell fittings of LED, mold design and manufacturing are also well developed to have Getian be able to provide more comprehensive and professional service all over the world.

Getian insist that quality is one of core competence. All of the main products are listed with CE, RoHS, SGS certification and will pass in-house robust reliability testing before leaving factory. Besides, more than 12 patents have been obtained in LED design and manufacturing field. We successfully got ISO9001: 2008 certification and started running the ERP and BPC system in 2009. With all these outstanding performance, Getian achieved series of great honors, such as "Top 50 LED Manufacturer in China", "Hi-Tech. Enterprise", "Shenzhen Hi-Tech. Enterprise", and "Shanghai Expo Exhibition Enterprise", etc.

Warmly welcome all fields of friends to visit our company and negotiate trade.
