Good Color Consistency White 0.5watt SMD LED Diode 5730 for panel Light

Name: Good Color Consistency White 0.5watt SMD LED Diode 5730 for panel Light
Brand: all-electronics-online.com
SKU: 839168485
Availability: InStock
Rating: 4.9 (120 reviews)

Price:	US $ 0.059/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GT-M57301W455-0
Color Temperature:	4000-4500K
Volt:	2.8-3.4V
Beam Angle θ:	120
Current:	150mA
LED Packaging Type:	Chip
Chip Material:	InGaN
Beam Angle:	120??
Life:	50000h
Certification:	CE
Emitting Color:	Natural White
Power:	0.5W

Product Description

Regular color temperature:

           warm white 2600-2900K,2900-3200K,3000-3500K
           natural white 4000-4500K,4500-5000K
           cool white 5000-5500K,5500-6000K,6500-7000K
           cold white 7000-9000K,9000-15000K

Available SMD type:

3528, 2835, 5050, 5730, 3030

Stable quality with low optical attenuation

1000h<1%, 3000h<3%, 10000h<8%

Spefication

Product Name	Luminous Flux 1	Luminous Flux 2
5730 SMD LED	50-55LM	55-60LM

Electrical / Optical Characteristics at Ta=25°C

Parameter	Symbol	Min.	Typ.	Max.	Units	Test Conditions
Forward Voltage	VF	2.8	3.2	3.4	V	IF=150mA
Reverse Current	IR	---	---	10	μA	VR=5V
Color Coordinates	X	---	0.38	---	---	IF=150mA
Color Coordinates	Y	---	0.38	---	---	IF=150mA
Color Temperature	TC	4500	---	5000	K	IF=150mA
Color Rendering Index	Ra	70	80	90	CRI	IF=150mA

Absolute Maximum Ratings at Ta=25°C

Parameter	Symbol	Rating	Units
Power Dissipation	Pd	0.5	W
DC Forward Current	IF	150	mA
Peak Forward Current	IFP	350	mA
Reverse Voltage	VR	5	V
Electrostatic Discharge	ESD	2000	V
Working Temperature	Topr	-40~ +60°C	°C
Storage Temperature	Tstg	-40~ +60°C	°C

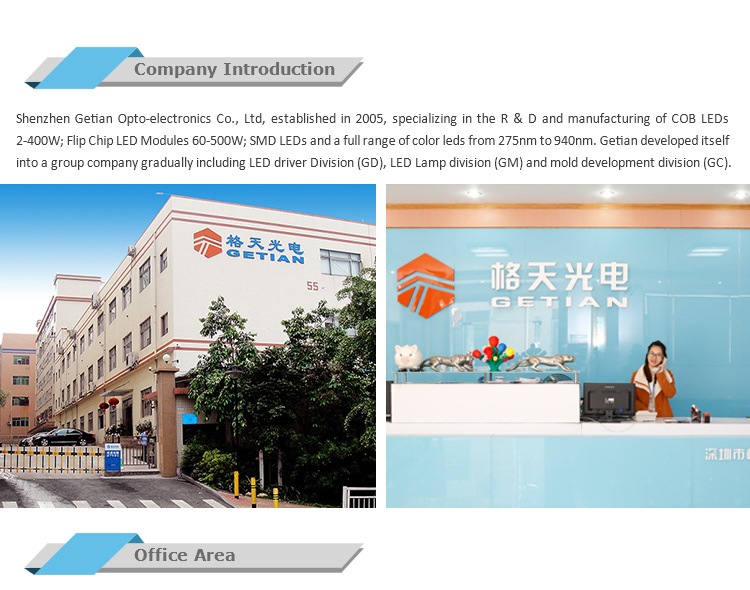

Shenzhen Getian Opto-electronics Co., Ltd. is a manufacturer specializing in LED components aiming to a global presence. Since established in 2005, GeTian has delivered the LED components products, technological innovations, and unparalleled customer trust level around the domestic and oversea marketing for over years.

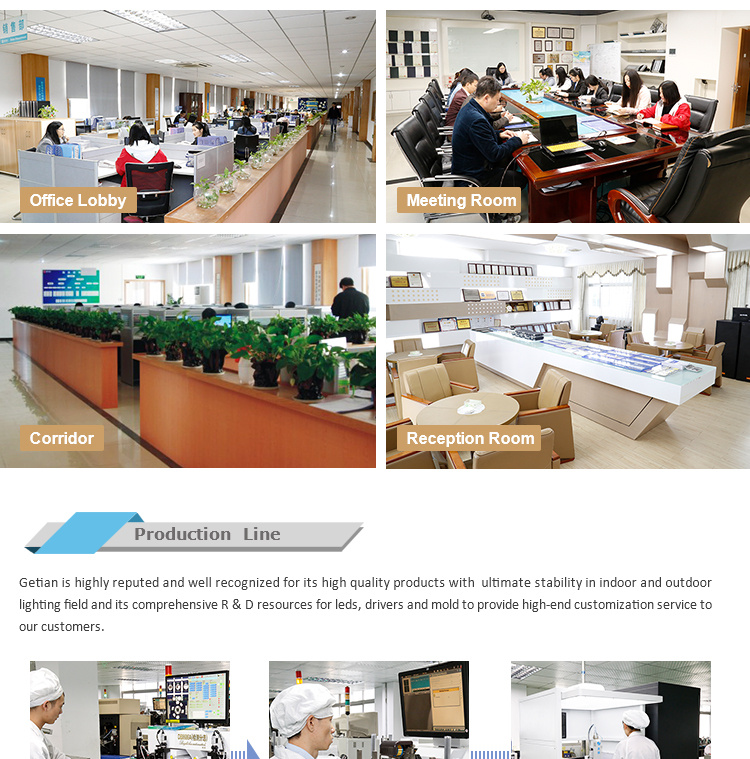

Total investment is 50, 000, 000 yuan and production area is over 5, 000 square meters. Getian has 500 employees and more than 70 are R&D staffs. We have equipped full-automatic production machines for all the key manufacturing processes and full set testing machines. The annual capacity of high power LED is over 60, 000, 000PCS.

With more than 7 years' outstanding growth, Getian has become a group corporation which has high power LED, SMD LED and LED driver as the core business units. Shell fittings of LED, mold design and manufacturing are also well developed to have Getian be able to provide more comprehensive and professional service all over the world.

Getian insist that quality is one of core competence. All of the main products are listed with CE, RoHS, SGS certification and will pass in-house robust reliability testing before leaving factory. Besides, more than 12 patents have been obtained in LED design and manufacturing field. We successfully got ISO9001: 2008 certification and started running the ERP and BPC system in 2009. With all these outstanding performance, Getian achieved series of great honors, such as "Top 50 LED Manufacturer in China", "Hi-Tech. Enterprise", "Shenzhen Hi-Tech. Enterprise", and "Shanghai Expo Exhibition Enterprise", etc.

Warmly welcome all fields of friends to visit our company and negotiate trade.
