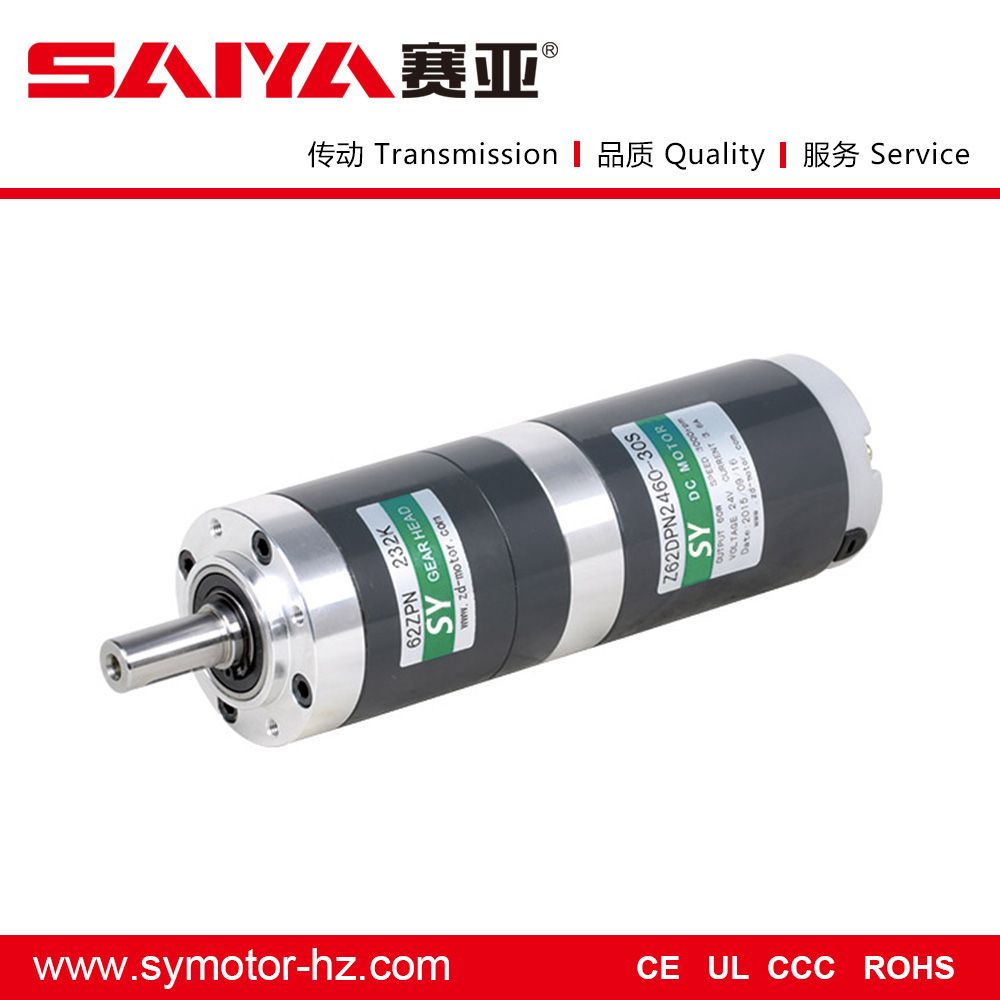

62mm 60W DC Motor with Planetary Gearbox

Name: 62mm 60W DC Motor with Planetary Gearbox
Brand: all-electronics-online.com
SKU: 808377075
Availability: InStock
Rating: 4.9 (109 reviews)

Price:	US $ 80-150/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Z62DP2460-30S
Item Name:	62mm 60W DC Motor with Planetary Gearbox
BLDC Motor Power:	60W
BLDC Motor Voltage:	24V
Rated Speed:	3000rpm
Rated Torque:	0.191n.M
Size:	62mm
Frequency:	50Hz 60Hz
Application:	Industrial
Operating Speed:	Constant Speed
Excitation Mode:	Shunt
Structure And Working Principle:	Brush
Type:	Zpn
Brand:	Sy Motor
Number Of Poles:	3
Certification:	Ce, UL, RoHS

Product Description

62mm DC Motor 60W Gear Box
Features:
The planetary gearbox for transmission is widely matched with DC motor and BLDC motor.
It shows the characters of high torque and controlablity as well as the high lasting torque.
The perfect combination fully expresses the product's smaller and high torque.
Types:
BLDP: Brushless DC motor matched with planetary gearbox
DP: Brush DC motor with inner brush(no brush replacement from outside), matched with planetary gearbox
PM: Tansmission planetary(metal)
PK: Tansmission planetary(plastic)

Motor type	Voltage	Power	No-load speed	No-load current	Rated speed	Rated current	Rated torque	Motor life	Motor weight
	V	W	RPM	A	RPM	A	N. M	H	Kg
Z22DP2410-60S	24	10	6500	0.3	6000	0.85	1.6	1000	0.5
Z22BLDP2410-60S	24	10	6500	0.3	6000	0.90	1.6	3000	0.5
Z32DP2415-30S	24	15	3500	0.5	3000	1.20	47.5	1000	0.8
Z32BLDP2415-30S	24	15	3500	0.5	3000	1.20	47.5	2000	0.8
Z42DP2425-30S	24	25	3500	0.7	3000	1.8	79.6	1000	1.0
Z42BLDP2425-30S	24	25	3500	0.7	3000	1.7	79.6	3000	1.2
Z52DP2440-30S	24	40	3300	0.8	3000	2.50	127.3	2000	1.5
Z52BLDP2440-30S	24	40	3300	0.8	3000	2.40	127.3	5000	1.8
Z62DP2460-30S	24	60	3500	1.0	3000	4.0	0.19	2000	1.8
Z62BLDP2460-30S	24	60	3600	1.0	3000	4.0	0.19	5000	2.0
Z62DP2490-30S	24	90	3500	1.0	3000	5.5	0.29	2000	2.0
Z62BLDP2490-30S	24	90	3500	1.0	3000	5.5	0.29	5000	2.3

Motor type	Gearbox type	Reduction ratio	Dimension(mm)
Z22DP Z22BLDP	22PM	3.65-8.63	24
		13-74	32.3
		87-643	40.6
Z32DP Z3BL2DP	32PM	3.65-8.63	28.5
		13-74	38.3
		87-643	48.1
Z42DP Z42BLDP	42PM	3.65-8.63	38.6
		13-74	56.9
		87-643	75.2
Z52DP Z52BLDP	52PM	3.65-8.63	48.7
		13-74	65.1
		87-643	81.5
Z62DP Z62BLDP	62PM	3.65-8.63	53
		13-74	71
		87-643	89

Kevin Kong
Sales/Marketing
Hangzhou Saiya Transmission Equipment co., Ltd
Tel: 0086-571-86951513 86954769
Fax:0086-571-86040769
MP: 0086 15925686183

The brief introduction of our company:

Our company supplys different kinds of products. High quality and reasonable price.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

To perfect our service, we provide the products with good quality at the reasonable price.

The Products Of Our Company:

Our Company Is Specialized In Gear Motors. At Present, There Are Three Kinds Of Motors In Our Company:

1) Micro Gear Motor Include Micro AC Gear Motor And Micro DC Gear Motor;

2) Small AC Gear Motor;

3) Planetary Gear Motor.

The Usages Of Our Products:

They Are Widely Used In Machine Tools, Textile Machinery, Medical Appliance, Conveying Machines, Printing Mechanism, Food Machinery, Vending Machines, Packing Machinery, And Gumming Machines. With Excellent Equipment, Advanced Procedure, Scientific Management, And Modern Test Method, We Can Provide All Customers Both At Home And Abroad With Our Top Quality Products, Favorable Prices And Sincere Service.

You Can Tell Us About Your Requirements, And We Will Help You To Find The Right Type And Model Which Is Suitable For Your Products. Or You Can Also Provide Your Products Information And We Can Help You To Choose The Right Motors For You.

We Hope That We Can Establish Long-term Business Relationships Together With You For Mutual Business Success.

Motor Voltage, Power, And Speed Will Be Customized According To Your Request Under The Allowed Circumstanced Of Adoptable Dimension
