| Prod Model: |
65MZ-19 |
| Model No: |
Jlm6505m-R2y5 |
| Dimensions: |
6*10.5mm |
| Wavelength: |
650nm |
| Output Power: |
1MW |
| Input Voltage: |
3~5V |
| Input Current: |
20mA |
| Storage Temperature: |
-40~85 |
| Working Temperature: |
-10~40 |
| Wire Length: |
45mm |
| Irradiation Distance: |
8m |
Product Description
Specification :Wavelength:650nm
Output power:1mwLow Price 650nm Laser Diode Module 5mw Red for Laser Pointer

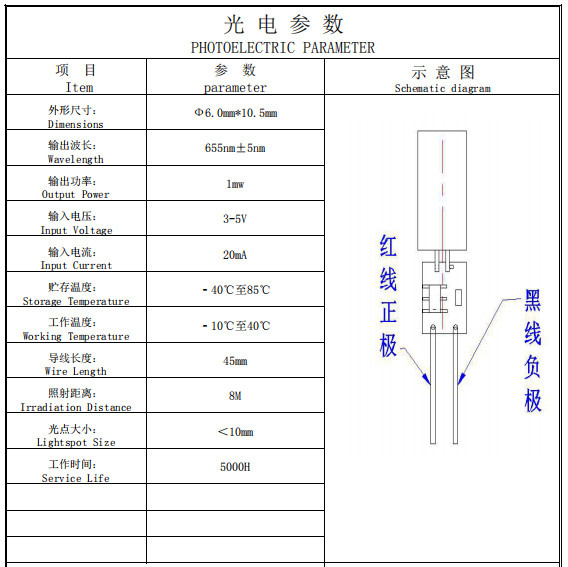

Excellent beam quality High stability Advanced technology Long lifetime | Item | Parameter |

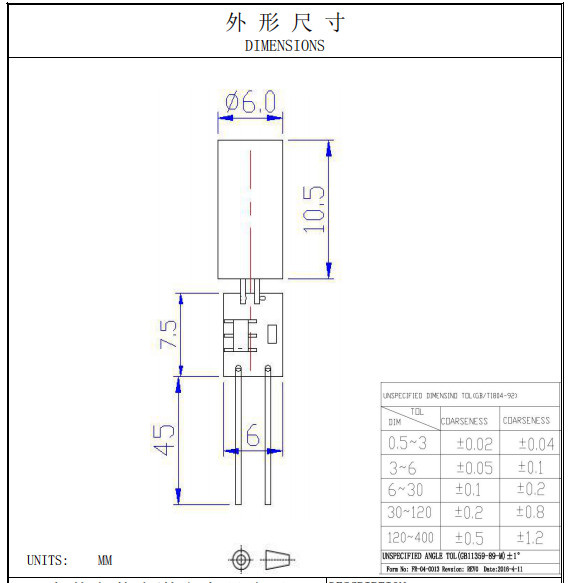

| Dimensions | 6*10.5mm |
| Wavelength | 655nm±5nm |
| Output Power | 1mw |
| Input Voltage | 3~5V |
| Input Current | 20mA |
| Storage Temperature | -40~85ºC |
| Working Temperature | -10~40ºC |
Wire Length
| 45mm |
| Irradiation Distance | 8M |
| Lightspot Size | <10mm |
| Service Life | 5000H |

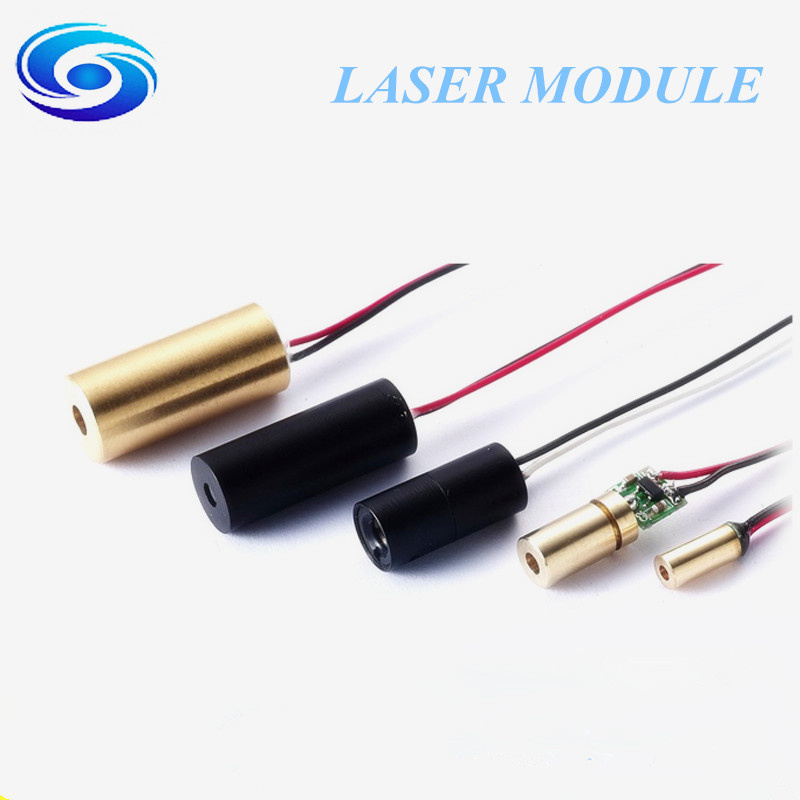

Remarks: We offer professional ODM and OEM service, so the housing size, power, beam Shape , beam Size and wire length of the laser module can be customized !
Welcome your inquiry
TO: Lily Yin
Mob:+86 18666872663
Packaging&Shipping:1. Plastic box, ESD bag, standard and normal package.
2.1-3 days after receiving the payment by T/T, Western Union, PAYPAL, Secure Payment, Trade Assurance.
3.It will be shipped by DHL/FedEx/UPS/TNT or other special way, please contact with us to choose the best one.
4. Delivery time will be usually 3~5 working days.
autions:
1.The laser light emitted by laser module is likely to injure persons' eye;so do not directly gaze its end surface and wear appropriate safety glasses to prevent laser light when it is working.
2.Laser module need appropriate laser driver(PCB)when laser module connect with power supply, please set the output voltage to zero . The adjustment of current should be slowly increase or decrease to avoid damaging the device.
3.Keep the device working or storing in dry environment.
4.Working at high temperatures will increase the threshold current,reduce conversion efficiency and speed up the aging of the device.
5.When output power is higher than it's specific parameter of operation, it will accelerate the aging of the device.
6.When the operation temperature of laser diode is over 40 degree,please do well heat dissipation of it.
7.This laser module is electrostatic sensitive device. Please make sure ground yourself or wear an antistatic wrist strap before you take it.Static voltage is less than 1V.
Warranty:
All products have been tested before the shipment and it was packaged in good condition. Please tested the products at first before you assemble it, if any problem here , please inform us within 3 days of receipt. We can arrange replacement for you if the situation is confirmed.
Welcome your inquiry
TO: Lily Yin
Mob:+86 18666872663
