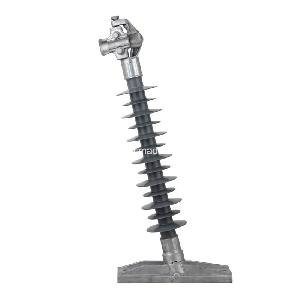

66kv Line Post Insulator

Name: 66kv Line Post Insulator
Brand: all-electronics-online.com
SKU: 741193195
Availability: InStock
Rating: 4.8 (54 reviews)

Price:	US $ 1-20/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	66kv Line Post Insulator
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	High-voltage
Material:	Composite Polymer
Structure:	Post Insulator
Type:	B Type Insulator
Size Of Bearing Capacity:	8kn
Certification:	IEC
Color:	Gray and Red

Product Description

1 Place of origin: China
2 Type: Station post insulator
3 Material: Polymer
4 Application: High Voltage Lines
5 Feature:
Good hydrophobicity

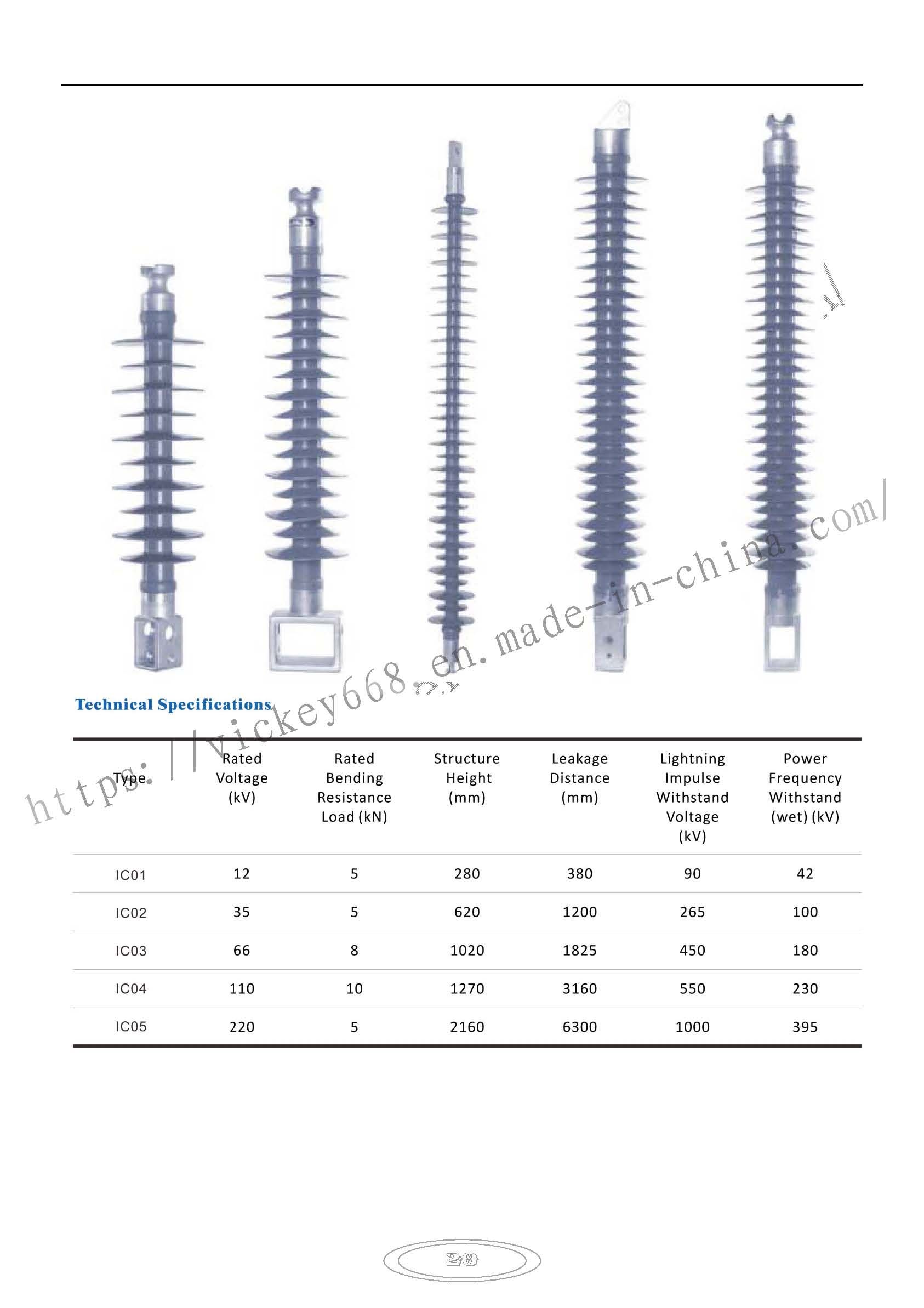

Selection Guide kv	Specified Load kn	Length L mm	Leakage distance mm	Dry arc distance mm	Power frequency withstand 50Hz Dry kv	Wet kv	Lightning impulse withstand 1.2/50 Pos kv	neg .kv	Weight kg
12	10	365	390	165	70	65	115	160	6.5
12	8.4	420	585	225	110	100	150	190	7
24	6.3	540	975	340	150	140	235	270	8
24	5.5	600	1170	400	170	155	270	300	8.5
33	5.5	600	1170	400	170	155	270	300	8.5
33	5	660	1365	460	180	165	285	325	9
66	6	960	650	165	70	65	115	160	6.5
66	8	1020	670	225	110	100	150	190	7
110	2.7	1185	3120	985	400	320	625	670	13.5
110	2.4	1300	1105	435	435	355	680	735	14.5

VICCIA Electrical Co., Ltd., a member of Fuzhou Light Industry Co., Ltd, is located in Sanming City of Fujian Province. We specialized in manufacturing and supplying multiple products, particularly in the field of electrical appliance, such as Fiberglass ladder and Aluminum ladder, high and low voltage product, power fittings and so on. Started with the business of international trading and sales agent of domestic supplier and overseas buyer, we now have skilled and experienced engineer team in design and manufacturing, as well as trained talents in business and management which enables us to respond effectively to the demands of market and our customers at all times.

The slogan of VICCIA is to provide the highest quality services to each customer, and to provide products to each customer with reasonable price and good quality. At the same time, we can develop and manufacture gratifying products in accordance with customers' certain requirements.

Put your trust in VICCIA, let us work together and achieve more.
