Shf-20yo 20kv Porcelain Pin Insulator

Name: Shf-20yo 20kv Porcelain Pin Insulator
Brand: all-electronics-online.com
SKU: 742154655
Availability: InStock
Rating: 4.8 (131 reviews)

Price:	US $ 1-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SHF-20YO
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	High-voltage
Material:	Porcelain
Structure:	Pin Insulator
Type:	A Type Insulator
Size Of Bearing Capacity:	30~160kn
Certification:	BS
Color:	Brown

Product Description

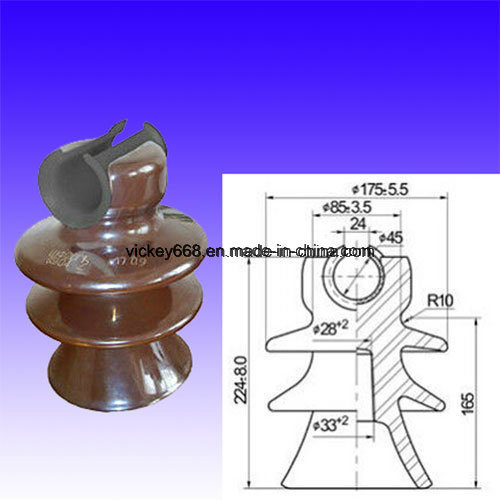

Pin type porcelain insulator

Type: SHF-20YO
Body: Porcelain
Color: Brown
Standard: BS

20KV PIN INSULATOR SHF-20YO

Insulator unit of this type complies with Specs (TU) 3493-170-00111120-2000 requirements.

Minimum voltage	Puncture voltage in insulating medium	kV	180
	Impulse withstand voltage	kV	135
	50 Hz withstand voltage (Dry)	kV	85
	50 Hz withstand voltage (Wet)	kV	65
	Average annual rate of failure	failure/year	0.0005
Creepage distance, minimum		mm	400
Mechanical failing load (beding), minimum		kN	13
Weight, maximum		kg	3.5
