66kv Polymer Suspension Insulator (FXBW4-66/70)

Name: 66kv Polymer Suspension Insulator (FXBW4-66/70)
Brand: all-electronics-online.com
SKU: 618785072
Availability: InStock
Rating: 4.3 (115 reviews)

Price:	US $ 8.88/Piece
Trade Terms:	FOB,others
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FXBW4-66/70
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thermal Rating:	250 250
Chemistry:	Hybrid Insulation
Bending Load:	70kn
Creepage Distance:	1900mm
Application:	Insulators
Material:	Composite Polymer
Structure:	Suspension Insulator
Type:	Solid
Brand:	Powlik

Product Description

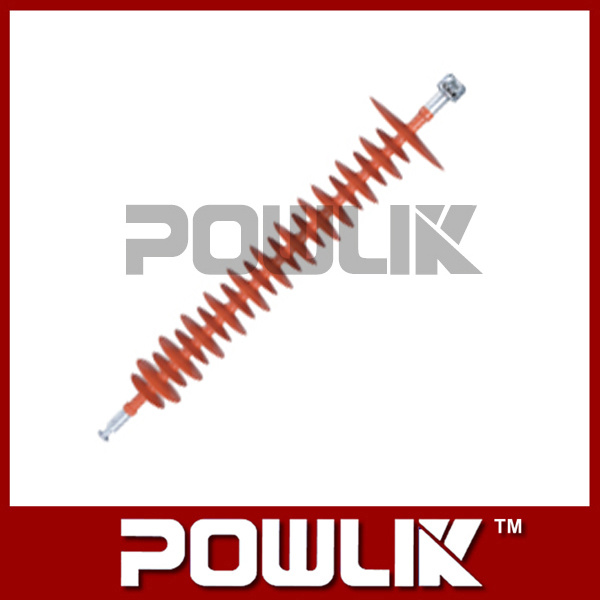

66KV Polymer Composite Suspension Insulator

1.Technical Data
A. Model: FXBW4-66/70
B. Rated Voltage: 66KV
C. Specified Mechanical Load: 70KN
D. Coupling Marks: 16
F. Length: 940mm
G. Min. Arc Distance: 700mm
H. Min. Creepage Distance: 1900mm
I. Full-wave lightning Impulse withstand Voltage: 410KV
J. Power Frequency 1min withstand voltage wet: 185KV
K. Voltage Divider Ring: As per required

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
