0.69m GPS&Bd2 Circular External Antenna Dampproof Antenna

Name: 0.69m GPS&Bd2 Circular External Antenna Dampproof Antenna
Brand: all-electronics-online.com
SKU: 824002195
Availability: InStock
Rating: 4.9 (138 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DL-GPS-013
Mounting:	Screw Fixing
Connector:	SMA Gold Plated Male Head Straight
Cable:	Rg174 0.69m
Color:	Black
Size:	46.6*15.6mm
Weight:	<55gram
Usage:	Car Antenna
Operating Wavelength:	Medium Wave
Material:	Al
Directionality:	Directional Antenna
VSWR:	1.5~2

Product Description

Summary
GPS&Bd2 circular external antenna is characteristic of our company is 4GBD2 wireless terminal products launched at the same time it has moisture-proof anti vibration, suitable for national roaming. The product is small, the antenna is arranged at the bottom of screw and stick the paper fixed, convenient installation and use.

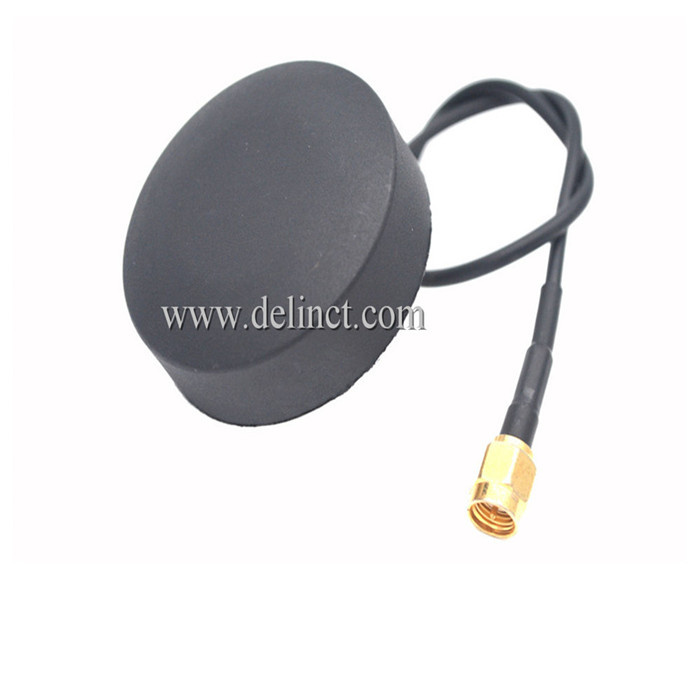

Product Apearance

Size	Ø46.6*15.6mm	Mounting	Screw Fixing
Weight	<55gram	Connector	SMA gold plated male head straight
Color	Black	Cable	RG174 0.69m

Antenna Specifics

NO	(Item)	(Specifications)	Post Environmental Tolerance
1	(MHz) Range of Receiving Frequency	1575.42&1561.098±2	±2.5
2	(30*30m) Center Frequency(MHz) (with 30mmSpuareGND plane)	1575.42&1561.098	±3.0
3	Band Width(MHz) (Return Loss≤-10dB)	≥10	±0.5
4	V.S.W.R(in Center Frequency)	≤1.5	±0.3
5	Gain (Zenith)(dBi typ)	3.0	±0.5
6	Axial Ratio (with 70mm Square GND plan)	3.0dB	±0.2
7	Polarization	Right-Handed Circular	----
8	Impedance(Ω)	50	----
9	(ppm/ºC) Frequency Temperature Coefficient	0±10	----

Amplifier Characteritics

NO	(Item)	(Specifications)
1	frequency range	1575.42±3MHZ&1561.098±3MHz
2	amplifier gain	26dB±3
3	standing-wave ratio (SWR)	≤2.0
4	noise factor	<2.0
5	Direct-current Voltage	3~5V
6	Direct current	≤20mA

Operating Condition
Temperature: -40ºC~+80ºC
Humidity:95%~100%
Storage:
Temperature:-45ºC~+85ºC
Humidity:95%~100%
