| Prod Model: |
FT-6KW |
| Name: |
Power Inverter |
| OEM/ODM: |
Offer |
| Warranty: |
1-2 Years |
| Application: |
Household, Industrial,Commerical |
| Sample Order: |
Accept |
| Display: |
LCD |
| MOQ: |
1 Piece |
| Waveform: |
Pure Sine Wave |
| Company: |
Manufacture&Trading |
| Export Market: |
Global |
Product Description

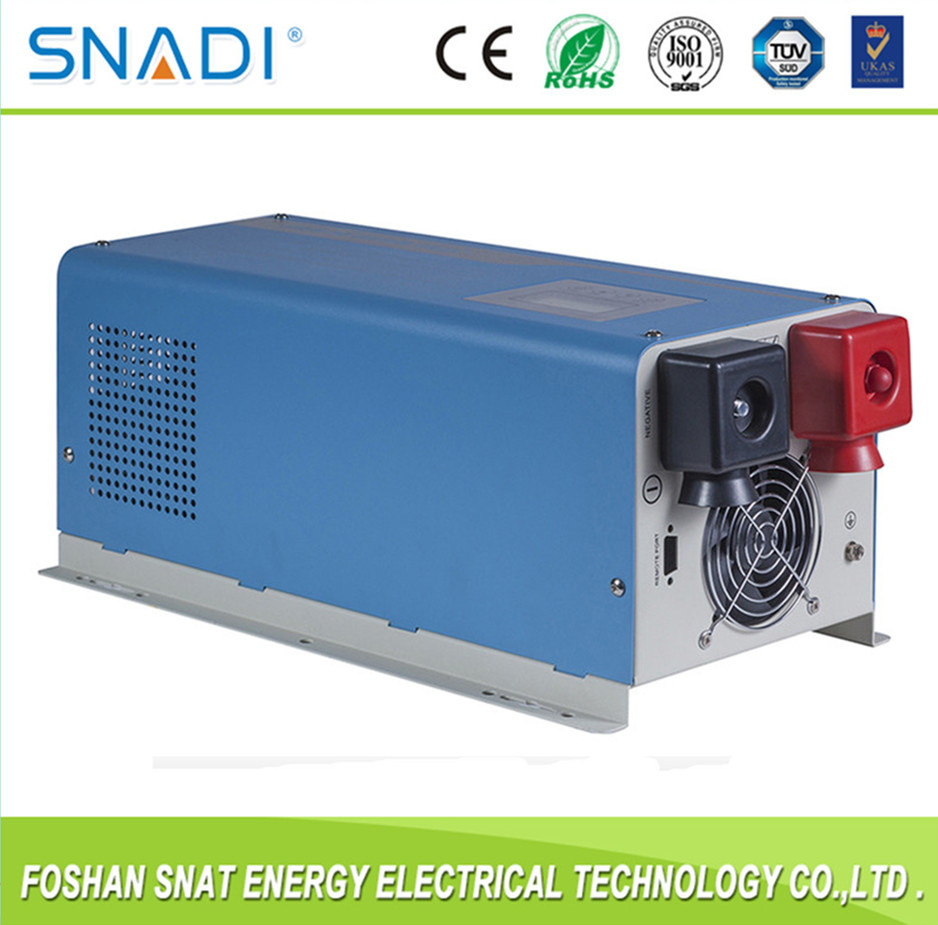

6KW High Efficiency Pure Sine Wave Solar Power Inverter with toroidal transformer
PRODUCT OVERVIEWWith or double MCUs, the product provides different charge voltages and charge to realize charge management for batteries of different types.
Its mains supply preferred mode, energy- saving mode and battery preferred mode are all settable, thus making it easy to meet the different application needs of users.
Power Inverter has an LCD, it is widely applied to families, schools, streets, frontier defense, pasturing areas, industrial equipment, satellite communication equipment, military vehicle-borne equipment, ambulances, police cars, ships and more.
MAIN FEATURES* Excellent performance because of double -MCU intelligent design
* Pure sine wave output for compatibility with loads of different types
* Visualization of operation status of the equipment through a digital LCD
* A wide range of input voltage, accurate output and full automatic voltage stabilization
* Settable battery type and charge current for the charge management of batteries of types
* Settable mains supply preferred mode, energy-saving mode and battery preferred mode for easy meeting of the needs of different users
* Overall protection functions (battery over voltage protection, battery undervoltage protection, overload protection, short circuit protection and over temperature protection)
TECHNICAL INDEXES| Model: FT- | 6KW |
| Rated power | 6000KW |
| Battery | Rated voltage | 48VDC/96VDC |
| Charge current | 30A(default)-C0-C6 |
| Battery type | U0-U7 |
| Input | Voltage | 85-138VAC/170-275VAC |
| Frequency | 45-65Hz |
| Output | Voltage | 50/60Hz±1%(inversion mode) |
| Frequency | 110VAC/220VAC±5%(inversion mode) |
| Output waveform | Pure sine wave |
| Conversion time | <10ms(typical load) |
| Efficiency | >85%(80% resistive load) |
| Overload | 110-120%/30s; >160%/300ms |
| Protection function | Battery over voltage protection,battery under voltage protection, overload protection, short circuit protection, over temperature protection |
| Ambient temperature for operation | 0-40ºC |
| Ambient temperature for storage | -15- +50ºC |
| Operation/storage conditions | 0-90% (no condensation) |
| External dimensions: D*W*H(mm) | 655*248*182 |
| Packing dimension: D*W*H(mm) | 735*316*235 |
Company Information
Foshan SNAT Energy Electrical Technology Co. Ltd is established in 2004. As a world's leading supplier for solutions for electric energy and new energy, SNAT has powerful strength and is engaged in field of power inverters, solar inverters with built-in solar controller, solar controllers, UPS, which are used for household, telecommunication, electricity, infrastructure and industrial markets. At the same time, our company is concurrently engaged in solar panels, batteries for solar power system. We have professional technical engineer with more than 10 years technical experience to develop and design solar products.Manufacture&Package
FAQ:Q1: MOQA: MOQ from our company is required 1 unitQ2: Are you manufacturer or trading company?A: We are professional manufacturer of UPS since 1998 and manufacturer of solar inverter, solar charge controller and AC&DC solar power system since 2004; we are also trading company of solar panel and battery for solar power system.Q3:I need this product and wanna a system for family/industrial/commerical using, can you help me? A: Yes, we have a professional technology team average 10 years' experience, they can design solar power system in accordance with customers' special requirements.Q4: How long is your delivery timeA: Within 15 daysQ5:How about your after-sales service?A:Our quality warranty for 2 years; any parts will be shipped for free during warranty period.Q6: Why choose us?A1)Prompt delivery and good after-sale services.
A2)We have our own factory,the selling prices is competitive.
A3)All of our products are certified with CE, RoHS, ISO9001:2008.
A4)100% new materials for production and superior quality.
A5)Professional R&D technology team average 10 years experience.
