0.6mm Board Thick PCB GPS Tracking 6 Layer HASL Board

Name: 0.6mm Board Thick PCB GPS Tracking 6 Layer HASL Board
Brand: all-electronics-online.com
SKU: 823069085
Availability: InStock
Rating: 4.3 (70 reviews)

Price:	US $ 0.87/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-239-V2.39
Outer Copper Foil:	1 Oz
Board Thickness:	0.6mm
Surface Treament:	Enig
Solder Mask:	Green
Legend Color:	White
Min Line Width (Mil):	7.6 Mil
Min Line Spacing (Mil):	5.7 Mil
Electrical Test:	100% PCB Passed
Visual Inspection:	Ipc-a-600h&Ipc-6012c
Solderability Test:	245ºC 5s 1 Cycle
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

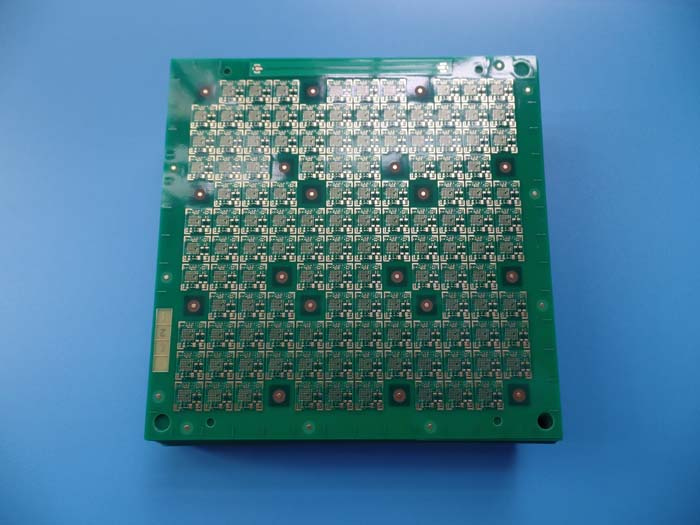

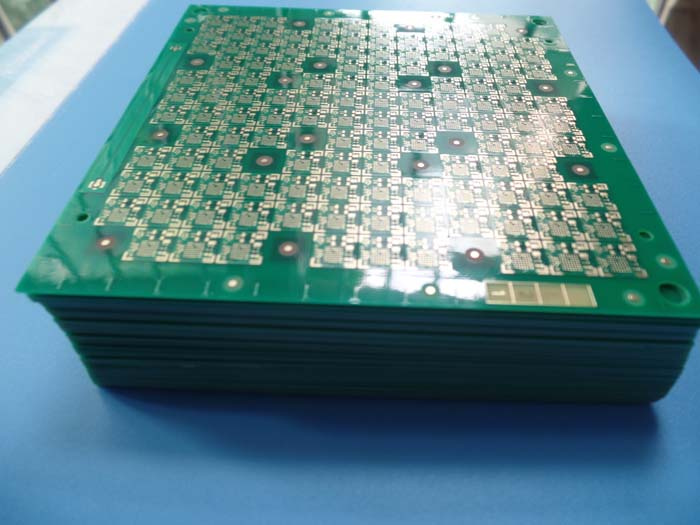

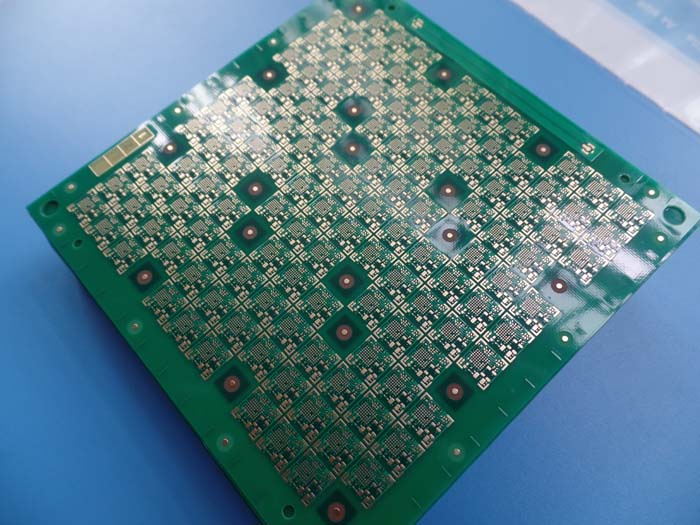

Prototype Thin 6 Layer PCB 0.6mm thick Half oz for each Layer with Immersion Gold in GpsTracking
Device

Commodity Introduction
This is a type of FR-4 PCB for the application of Gps Tracking Device. It's a 6 layer board at 0.6mm thick. The
base laminate is from ITEQ, Solder mask and silkscreen from KUANG SHUN. It's fabricated per IPC 6012
Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.

Parameters & Data Sheet

Item		Requirement	Result
Laminate	Type	FR-4	FR-4
	Supplier	ITEQ	ITEQ
	Board thickness	0.6+/-10%mm	0.50-0.7mm
	Outer copper foil	>=35 um	36.1
	Inner copper foil	17um	17um
	Warp-twist	<= 0.75%	0.06%
Legend	Type	KUANG SHUN	KUANG SHUN
	Color	White	White
	Location	CS	CS
Marking	Co.logo	As requirement	OK
	UL.logo	As requirement	OK
	Date code	As requirement	OK
	Marking form	As requirement	OK
	Location	NA
Min line width (mil)		7.8	7.6
Min line spacing (mil)		5.5	5.7
Min ring width (mil)		NA	NA
Solder Mask	Type	KUANG SHUN	KUANG SHUN
	Color	Green	Green
	Thickness	>=10 um	13 um
	Pencil Test	6H OR ABOVE	OK
	SOLVENT TEST	NO ATTACK	OK
	TAPE TEST	NO PEEL OFF	OK
Surface Treament	ENIG		OK
Special Treament	Silk screen	/	/
	Location	/	/
	Forming	V-cut	OK
Normal Testing	Electrical test	100% PCB passed	OK
	Visual inspection	IPC-A-600H&IPC-6012C	OK
	Solderability Test	245ºC 5S 1 Cycle	OK

Finished dimension (unit: mm): including v-cut

No	Required Dimension (tolerance)	Actual Dimension
1	116.99	116.92	117.21	117.01	117.07
2	120.98	120.92	121.08	120.95	120.93

Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)

No	Required	PTH	Actual Dimension
1	0.900	Y	0.900	0.875	0.925	0.900
2	1.000	Y	1.000	0.975	1.025	1.000
3	3.100	N	3.100	3.075	3.125	3.100

Learn PCB and Buy PCB
PCB Bow and Warpage

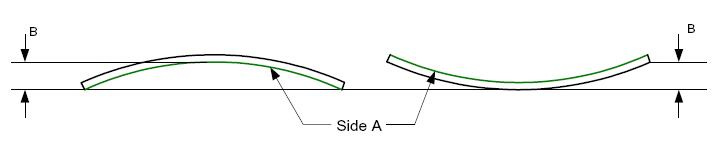

The value B shall be less than 0.75% of the diagonal of the panel.
