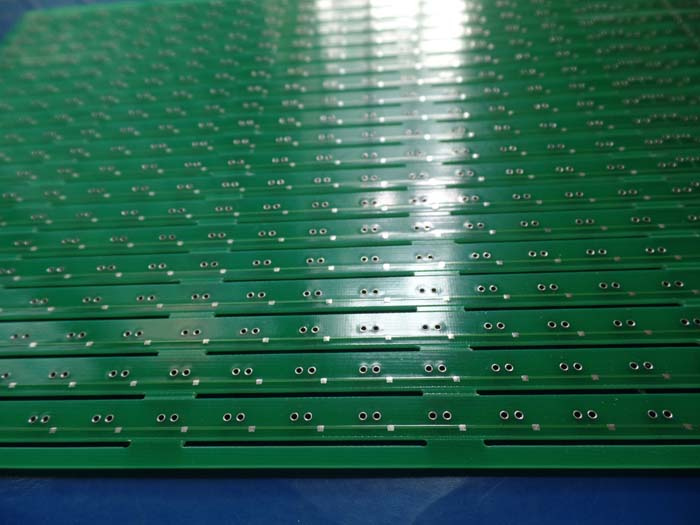

0.6mm Thick Double Sided PCB HASL Ciruit Board Green Soldermask
| Price: |
US $ 0.40/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1007R1.3 |
| Surface Finish: |
HASL Lead Free |
| Board Thick: |
0.6mm |
| Minimum Trace And Space: |
12 Mil/12 Mil |
| Minimum/Maximum Holes: |
0.5/1.1mm |
| Solder Mask Color: |
Green |
| Legend Color: |
White |
| Via: |
Plated Through Hole(Pth) |
| Board Plating: |
0.0030" |
| Copper Thick: |
1.5 Oz |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Double Sided PCB Dual Face PCB 0.6mm Thick FR-4 PCB HASL Applied In Level Switch
Commodity Introduction

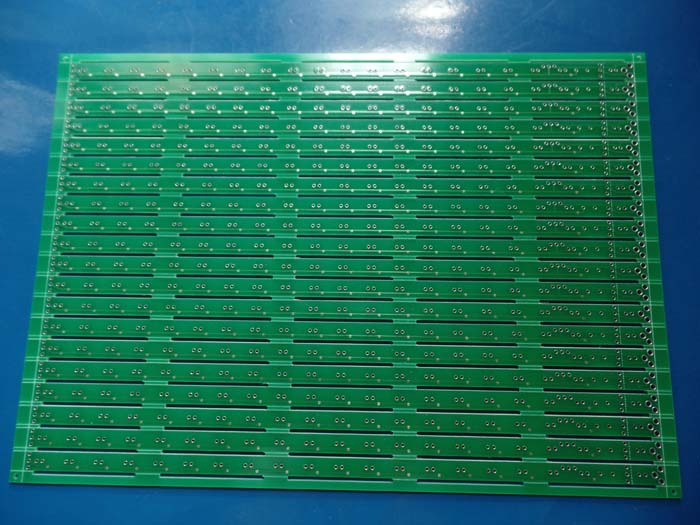

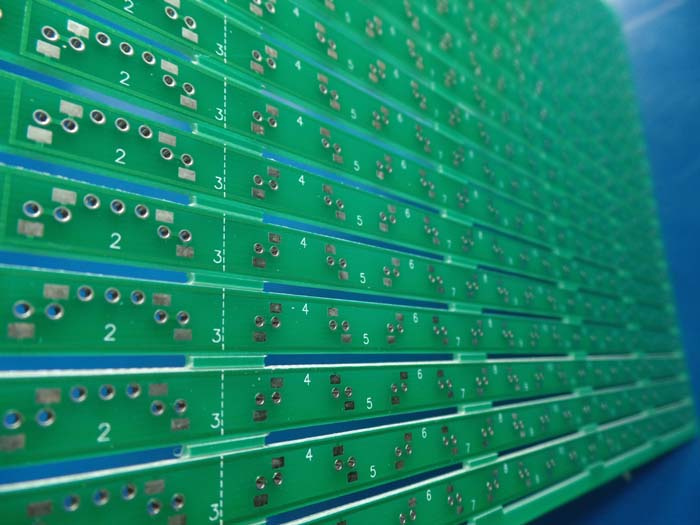

This is a type of FR-4 PCB for the application of Level Switch. It's a 2 layer board at 0.6mm thick.
The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC
6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 244.2 x 221.2mm=20PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB, 2 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP layer |
| FR-4 0.5mm |
| copper ------- 35um(1oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 12mil/12mil |
| Minimum / Maximum Holes: | 0.5/1.1mm |
| Number of Different Holes: | 3 |
| Number of Drill Holes: | 265 |
| Number of Milled Slots: | 21 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT140 TG>135, er<5.4 |
| Final foil external: | 1.5oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 0.6mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Hot air soldering leveling(HASL),lead free,
Sn>=2.54µm |
| Solder Mask Apply To: | Top and Bottom, 12micron Minimum |
| Solder Mask Color: | Gloss Green, Taiyo PSR-2000GT600D |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, Fiducial Marks |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Level switch, Amplifier
Power Supply
Battery Charger
Plc
Wireless |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
