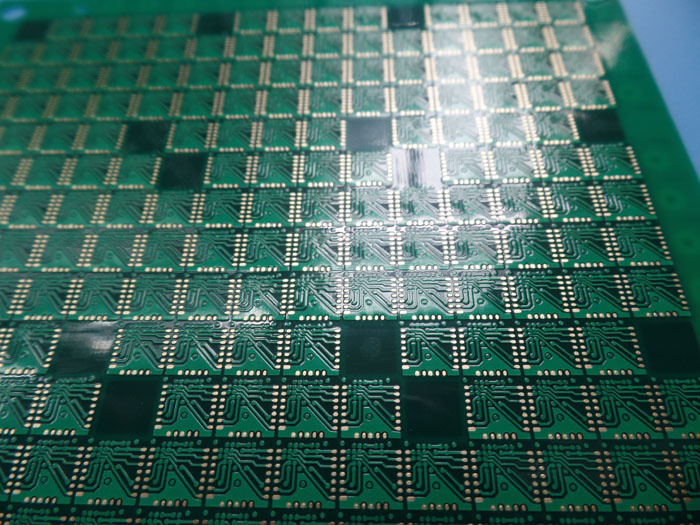

0.6mm Thick PCB 6 Layers No Silkscreen with Impedance Control
| Price: |
US $ 0.87/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-167-V1.67 |
| Final Foil External: |
1 Oz |
| Final Height Of PCB: |
0.6mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Gloss Green |
| Legend Color: |
No Silkscreen Requried. |
| Impedance Control: |
Single Trace, 6.5mil 49 Ohm |
| Minimum Trace And Space: |
5 Mil/5 Mil |
| Minimum / Maximum Holes: |
0.2/9.0mm |
| Via: |
Plated Through Hole(Pth) |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

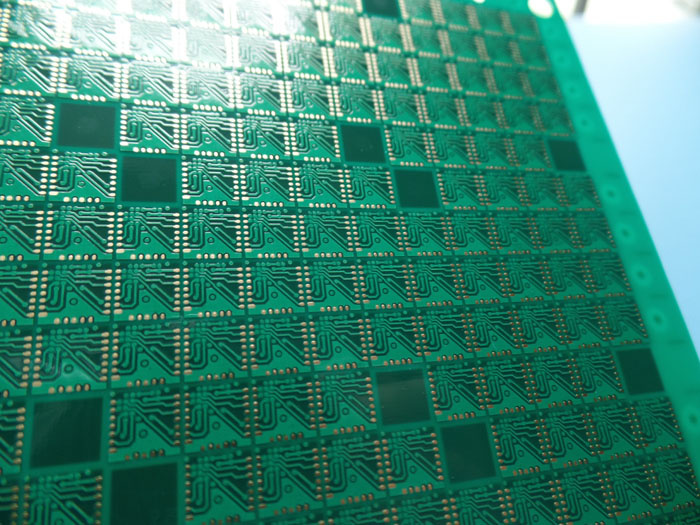

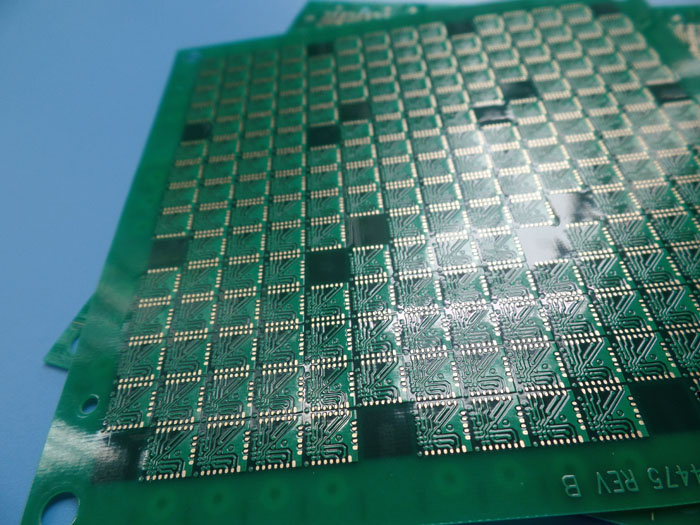

Impedance PCB Prototype 6 Layers Board At 0.6mm Thick Immersion Gold Applied In GPS
Tracking
Commodity IntroductionThis is a type of FR-4 PCB for the application of GPS Tracking. It's a 6 layer board at 0.6mm
thick.The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated
per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed
separately.
Parameters & Data Sheet| PCB SIZE | 99 x 98mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer, 6 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP CS |
| 4mil prepreg |
| copper ------- 18um(0.5oz) GND Plane |
| 5mil FR-4 |
| copper ------- 18um(0.5oz) PWR Plane |
| 4mil prepreg |
| copper ------- 18um(0.5oz) PWR Plane |
| 4mil FR-4 |
| copper ------- 18um(0.5oz) SIG |
| 4mil prepreg |
| copper ------- 18um(0.5oz) BOT PS |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5mil/5mil |
| Minimum / Maximum Holes: | 0.2/9.0mm |
| Number of Different Holes: | 9 |
| Number of Drill Holes: | 6515 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | Single trace impedance control, L1-L3, 6.5mil 49 ohm+/-10% |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT140 TG>135, er<5.4 |
| Final foil external: | 1oz |
| Final foil internal: | 0.5oz |
| Final height of PCB: | 0.6mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold 0.025µm over 3µm
Nickel (14.3% area) |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Gloss Green, Taiyo PSR-2000GT600D |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | No silkscreen requried. |
| Colour of Component Legend | No silkscreen requried. |
| Manufacturer Name or Logo: | No silkscreen requried. |
| VIA | Plated through hole(PTH), Via in Pad and via
capping on CS and PS, vias should not be visible. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Gps Vehicle Tracking Device
Gps Asset Tracking
Electronic Manufacturing
Fleet Vehicle Tracking
Microwave Amplifier, 30V Power Supply |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Frequently Asked Questions
1. Do you sell impedance controlled PCB?
Yes. Impedance controlled PCB's are used more and more popular in our common life. We can
offer differential impedance and single end impedance PCB.
2. How do you control the quality?
We believe engineering design prevents problems from occurring in preproduction. Our PCB and
Manufacturing process are certified by authorized organizations.
100% tests are inclusive of electrical test and AOI inspection, high voltage test, impedance control
test, micro-section, solder-ability test, thermal stress test, reliability test, insulation resistance test
and ionic contamination test etc.
3. How do you pack the PCBs?
PCBs are packed with Polyethylene air cushion film (vacuum plastic bags) per 20-25 pieces. Pearl
cotton (Polyethylene foamed sheet) are put inside carton box.
The hardness of carton box is KK grade (the highest hardness). Maximum gross weight for one
carton is less than 12 kgs.
Green PCB
Human beings have only one earth. Caring for the entire ecological environment and our lives are
closely related. Fresh work environment and sewage recycling are our responsibility.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
