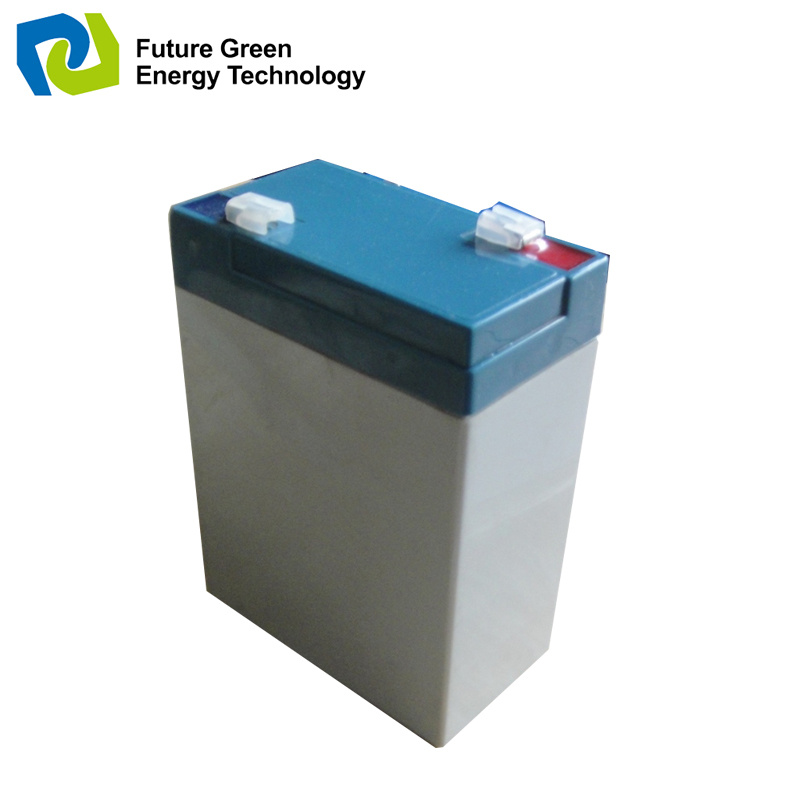

6V 4.5 Ah Rechargeable Deep Cycle Battery AGM Lead Acid Battery

Prod Model:	FG033
Item Name:	AGM Lead Acid Battery
Maintenance Type:	Free
Size:	70*47*101*107mm
Weight:	0.72kg
Material:	Fire Proof Case
Warranty:	3 Years
Terminal Type:	F1
Working Temperate:	-15 to 45
Certificate:	Ce, MSDS
Cell:	3
Type:	Lead-Acid Batteries
Usage:	Electric Bicycle
Nominal Voltage:	6V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

6V 4.5 Ah Rechargeable Deep Cycle Battery AGM Lead Acid Battery

Guangzhou Future Green Energy Technology Co.,Ltd is a professional lead acid battery ,plate and Activity Silica Gel manufacturer with own R&D and sales team based on more than 7 years experience. The products are widely used in telecommunications, electricity, solar energy, rail transportation and its auxiliary systems, UPS systems, emergency lighting systems and new energy and many other areas.
We welcome orders with "FGET" brand; We are also flexible to accept orders on OEM basis. Contact us now! All of the possibilities is in FGET

TECHNOLOGY PARAMETER

Battery model	FG645
Designed Floating Life	3~5 Years
Capacity (25ºC)	20hR(0.225A, 5.25V)	10hR(0.448A,5.25V)	5hR(0.82A, 5.25V)	1hR(3.25A, 4.80V)
	4.5Ah	4.48Ah	4.1Ah	3.25Ah
Dimensions	Length	Width	Height	Total Height
	70±1mm	47±1mm	101±1mm	107±1mm
Approx. weight (±5%)	0.72Kg (1.61lbs)
Internal resistance	Full charged at 25ºC: Approx .22mOhms
Self discharge	3% of capacity declined per month at 25ºC (average)
Capacity Affected by Temp.(20HR)	40 ºC	25 ºC	0 ºC	-15 ºC
	102%	100%	85%	65%
Charge Voltage (25ºC)	Cycle use		Float use
	7.25-7.45V(-15mV/ºC), max. Current: 1.35A		6.8-6.9V(-10mV/ºC)

Battery Use and Maintenance:
1) Please use constant-voltage charge.
2) In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5) Please do not use it near the heat source and open flame.
6) Please keep it at low temperature. Please change it while there is liquid leaking or damage.
Factory Show:



Packing Details:


Our Services:

 Samples and OEM, Warranty and After-Sale Service:


• Sample can be provided for quality testing
•  OEM Welcomed
•  Warranty: 2 Year
•  After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support

How To Ask for Support if products failure in warranty?
1. Email us about PI number, serial number,Product S/N number,  show us more details such as: pictures, your testing report or video, if it is the quality problem of product itself, we will resend a new one in next order.
2. we will submit your case to our after sales department.
3.Usually within 24 hours, we will email you the best solutions.

Our Qualification:



Payment Terms:

Payment Terms	T/T	EXW	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 5000usd
	Paypal
Delivery time	15 working days after receiving payment for one container


FAQ:
Q1: How to choose a right battery?
A1:Tell us your demand, then our sales will recommend a suitable battery to you.
Q2: How about the delivery time?
A2:  7 days for sample; 15 days for bulk order.
Q3: What is the warranty of lead acid battery?
A3: 2 years warranty on FGET-Solar product.
Q4: How to solve the technical problem?
A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.
