| Prod Model: |
TL645 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
70*47*101/107(Mm) |
| Approx. Weight (Kg/Lbs): |
0.73kg |
| Color: |
Black/ White/ Grey |
| Company Type: |
Factory |
| Container Material: |
ABS |
| Quality Certifications: |
CE RoHS UL ISO |
| Transportation Certificates: |
SGS MSDS |
| OEM/ODM: |
Yes |
| Port: |
Shenzhen |
| Rated Capacity: |
6V4.5ah |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
6V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

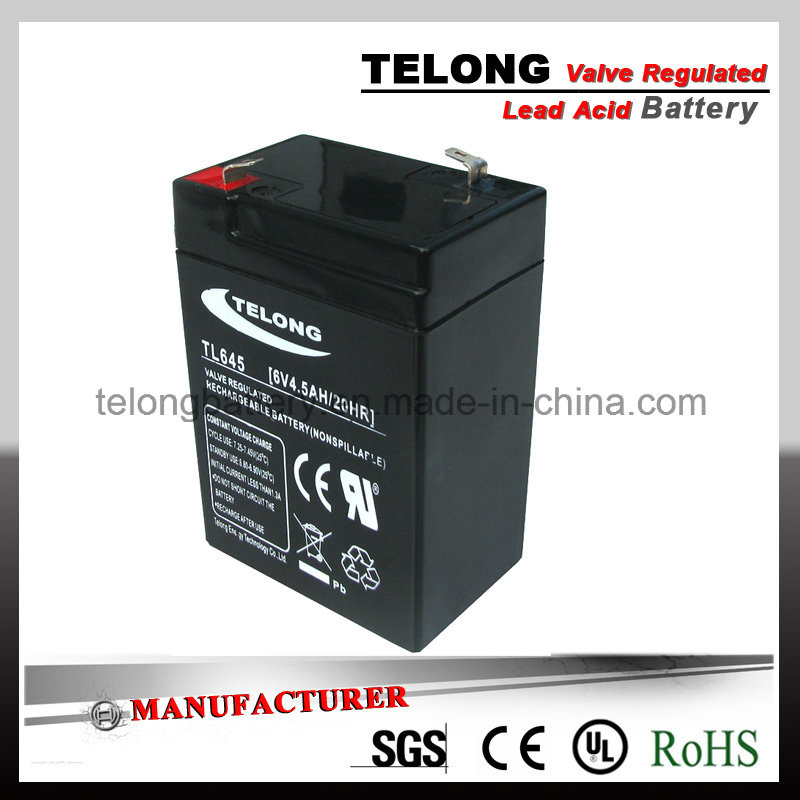

6V4.5ah Maintenance Free Lead Acid Battery for Secruity Alarm System (CE RoHS UL)
Model Number: TL645
Product Description
1. Features
-Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding.
-Not restricted for air transport-complies with IATA/ICAO Special Provision A67.
-UL-recognized component.
-Can be mounted in any orientation.
-Computer designed lead, calcium tin alloy grid for high power density.
-Long service life, float or cyclic applications.
-Maintenance-free operation.
-Low self discharge.
2. Applications
-Uninterruptable Power Supply(UPS)
-Electric Power System
-Emergrncy Backup Power Supply
-Emergrncy light
-Railway signal light
-Aircraft light
-Alarm and security system
-Electronic apparatus and equipment
-Communication power supply
-DC power supply
-Auto control system
3. Notice
- Don't put the battery exposure or lost in the fire.
- Don't make the wrong terminals connected when charging.
- Avoid battery short circuit.
- Avoid excessive physical shock or vibration.
- Don't disassemble or deform the battery.
- Keep out of the reach of children.
- Never use a modified or damaged charger.
- Store the battery in a cool, dry and well-ventilated area.
- Regulations vary in different countries, dispose of in accordance with local regulations
4. Company information
Founded in 2005, TeLong Energy Technology Co., Ltd has always been insisting on the follow enterprise business ethic ''Reasonable price, reliable quality, timely delivery, friendly service'', from which TeLong won a lot of reputation all over the world.
TeLong mainly produce the following type---AGM VRLA battery, GEL battery, OPzV, OPzS tubular plate battery, Automotive battery, Motorcycle battery, Golf cart battery, Electric vehicle battery, etc.
Our items have been sold out to South East Asia, Europe, Ameirica, Africa more than 100 different countries. We are well appreciated by our customers on good quality and performance.
In addition, We can OEM and ODM for a given brand or design. All of your calling and email will be highly appreciated.
5. More information, PLS contact me ASAP
| No. | Model No. | Rated Voltage
(V) | Rated Capacity
(AH) | Form Factor(mm) | Terminal | Weight
±4%(Kg) |
| L | W | H |
| mm | mm | mm | Type | Kg |
| 1 | TL430 | 4 | 3 | 90 | 34 | 66 | F1/F2 | 0.45 |
| 2 | TL435 | 4 | 3.5 | 90 | 34 | 66 | F1/F2 | 0.45 |
| 3 | TL445 | 4 | 4.5 | 47 | 47 | 100 | F1/F2 | 0.5 |
| 4 | TL460 | 4 | 6 | 47 | 47 | 100 | F1/F2 | 0.55 |
| 5 | TL612 | 6 | 1.2 | 98 | 25 | 56 | F1 | 0.3 |
| 6 | TL623 | 6 | 2.3 | 43 | 37 | 76 | F1 | 0.33 |
| 7 | TL628 | 6 | 2.8 | 66 | 33 | 100 | T1 | 0.55 |
| 8 | TL632 | 6 | 3.2 | 134 | 34 | 67 | T1 | 0.65 |
| 9 | TL630 | 6 | 3 | 70 | 47 | 100 | T1 | 0.63 |
| 10 | TL635 | 6 | 3.5 | 70 | 47 | 100 | T1 | 0.67 |
| 11 | TL640 | 6 | 4 | 70 | 47 | 100 | T1/T8 | 0.67 |
| 12 | TL645 | 6 | 4.5 | 70 | 47 | 100 | F1 | 0.73 |
| 13 | TL650 | 6 | 5 | 70 | 47 | 100 | F1/F2 | 0.73 |
| 14 | TL660 | 6 | 6 | 70 | 47 | 100 | F1/F2 | 0.82 |
| 15 | TL670 | 6 | 7 | 151 | 34 | 100 | F1/F2 | 1.16 |
| 16 | TL680 | 6 | 8 | 151 | 34 | 100 | F1/F2 | 1.16 |
| 17 | TL6100 | 6 | 10 | 151 | 50 | 100 | F1/F2 | 1.55 |
| 18 | TL6120 | 6 | 12 | 151 | 50 | 100 | F1/F2 | 1.65 |
| 19 | TL1208 | 12 | .8 | 96 | 25 | 62 | T9 | 0.58 |
| 20 | TL1212 | 12 | 1.2 | 98 | 45 | 56 | F1 | .55 |
