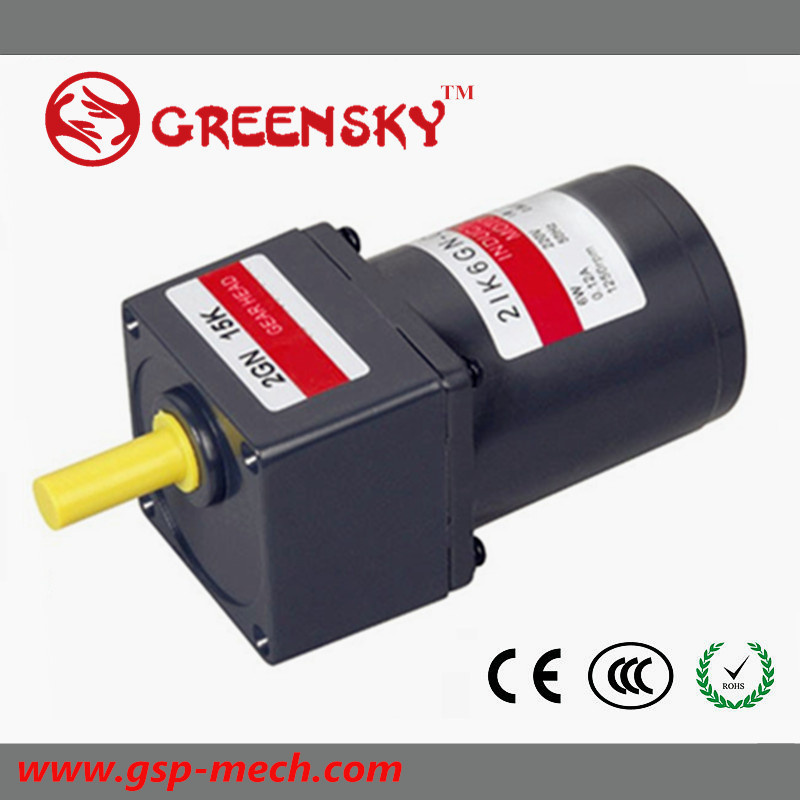

6W 60mm AC Induction Gear Motor

Name: 6W 60mm AC Induction Gear Motor
Brand: all-electronics-online.com
SKU: 774064815
Availability: InStock
Rating: 4.9 (147 reviews)

Price:	US $ 20.92-60.89/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GS2IK6GN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	6W
Voltage:	100/110/120/220/230V
Frequency:	50/60Hz
Current:	0.11A
Rated Torque:	48mn.M
Rated Speed:	1200rpm
Number Of Stator:	Single-Phase
Function:	Control
Certification:	UL CE
Brand:	Greensky

Product Description

60mm~104mm, 6W~180W AC Induction Motor

Introduction

Generally, Micro Induction Motor refers to the motor rotated by the induction. Induction Motor relies on capacitor and electromagnetism when starting and rotating. Though its starting torque is not very high, it has a simple structure, high efficiency and can rotate continue.

Specifications

1. Dimensions of device: 60mm
2. Rated Power: 6W
3. Voltage: 100/120/220/230V
4. CCC, CE, UL, CU
5. Can be customized

SPECS/CONTINUOUS RATING

Model		Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Pinion Shaft	Round Shaft
GS2IK6GN-A	GS2IK6A-A	6	1ph100	50	0.24	55	48	1200	3.5
				60	0.25	50	40	1450
GS2IK6GN-E	GS2IK6A-E	6	1ph110	60	0.16	40	40	1450	2
			1ph120		0.18
GS2IK6GN-C	GS2IK6A-C	6	1ph220	50	0.13	50	48	1200	0.8
			1ph230		0.11		40
GS2IK6GN-H	GS2IK6A-H	6	1ph220	60	0.14	55	40	1450
			1ph230		0.12
GS2IK6GN-S	GS2IK6A-S	6	3ph220	50	0.076	85	48	1200	_
				60	0.065	70	40	1450

Allowance Torque Unit: Upside (N.m)/ Belowside (kgf.cm)

TYPE Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	120	100	83	60	50	41	30	25	20	16	15	13	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10	9
GS2IK6GN-A GS2IK6GN-E GS2IK6GN-C GS2IK6GN-H GS2IK6GN-S	2GNK	50Hz	0.1	0.1	0.19	0.23	0.29	0.35	0.49	0.58	0.7	0.88	1.1	1.3	1.6	1.9	2.4	2.9	3	3	3	3	3
		50Hz	1.2	1.4	1.94	2.35	2.96	3.57	5	5.92	7.14	8.98	11.2	13.3	16	19	25	30	30	30	30	30	30
		60Hz	0.1	0.1	0.16	0.19	0.24	0.29	0.41	0.49	0.58	0.73	0.88	1.1	1.3	1.6	2	2.4	2.6	3	3	3	3
			1	1.2	1.63	1.94	2.45	2.96	4.18	5	5.92	7.45	8.98	11.2	13	16	20	25	27	30	30	30	30
			1	1.2	1.63	1.94	2.45	2.96	4.18	5	5.92	7.45	8.98	11.2	13	16	20	25	27	30	30	30	30
