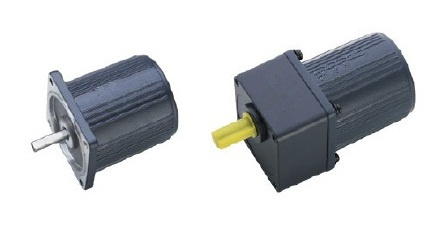

6W AC Gear Motor for Conveyor Belt

Name: 6W AC Gear Motor for Conveyor Belt
Brand: all-electronics-online.com
SKU: 774008525
Availability: InStock
Rating: 4.7 (27 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	2IK6A-A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery Time:	10-20days
Package:	8PCS/CTN
Weight:	3.5kg
Application:	Car
Operating Speed:	Constant Speed
Operation Mode:	Electric Motor
Number Of Poles:	Single-Phase
Certification:	CE

Product Description

Motor specifications:

Model of Motor		Output	Voltage	Frequency	Poles	Duty	Rated				Starting Torque		Capacitor/Ve
Model of Motor		Output	Voltage	Frequency	Poles	Duty	Speed	Current	Torque		Starting Torque		Capacitor/Ve
Motor	Motor with gear shaft	W	V	Hz	P		r/min	A	N.m	Kgf.cm	N.m	Kgf.cm	μF/VAC
2IK6A-A	2IK6NG-A	6	1ph110	50	4	CONT	1250	0.2	0.05	0.45	0.06	0.55	3.0/250
2IK6A-C	2IK6NG-C	6	1ph220	50	4	CONT	1250	0.1	0.05	0.45	0.07	0.7	0.8/450
2IK6A-D		6	1ph220	50	2	CONT	2700	0.11	0.02	0.21	0.04	0.4	0.8/450
2IK6A-S	2IK6NG-S	6	3ph220	50	4	CONT	1250	0.15	0.05	0.46	0.12	1.5	/
2IK6A-S3	2IK6NG-S3	6	3ph380	50	4	CONT	1250	0.05	0.05	0.46	0.12	1.5	/

Allowable torque on gearbox:2GN*K

Frequency	Reduction Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60
50HZ	Output Shaft Speed	rpm	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25
	Allowable Torque	N.m	0.13	0.15	0.21	0.21	0.32	0.38	0.42	0.53	0.63	0.76	0.76	0.95	1.14	1.36	1.52	1.72	2.06
		kg.cm	1.3	1.5	2.1	2.1	3.2	3.9	4.3	5.4	6.4	7.7	7.7	9.7	11.6	13.9	12.5	17.5	21.0
60HZ	Output Shaft Speed	rpm	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30
	Allowable Torque	N.m	0.10	0.13	0.13	0.17	0.26	0.30	0.34	0.43	0.51	0.62	0.62	0.76	0.92	1.11	1.24	1.39	1.67
		kg.cm	1.0	1.31	1.3	1.7	2.6	3.5	4.0	4.4	5.2	6.3	6.3	7.8	9.4	11.3	12.6	14.2	17.0

Frequency	Reduction Ratio		75	90	100	120	150	180	200
50HZ	Output Shaft Speed	rpm	20	16	15	12	10	8	7.5
	Allowable Torque	N.m	2.57	2.94	2.94	2.94	2.94	2.94	2.94
		kg.cm	26.2	30.0	30.0	30.0	30.0	30.0	30.0
60HZ	Output Shaft Speed	rpm	24	20	18	15	12	10	9
	Allowable Torque	N.m	2.09	2.50	2.78	2.94	2.94	2.94	2.94

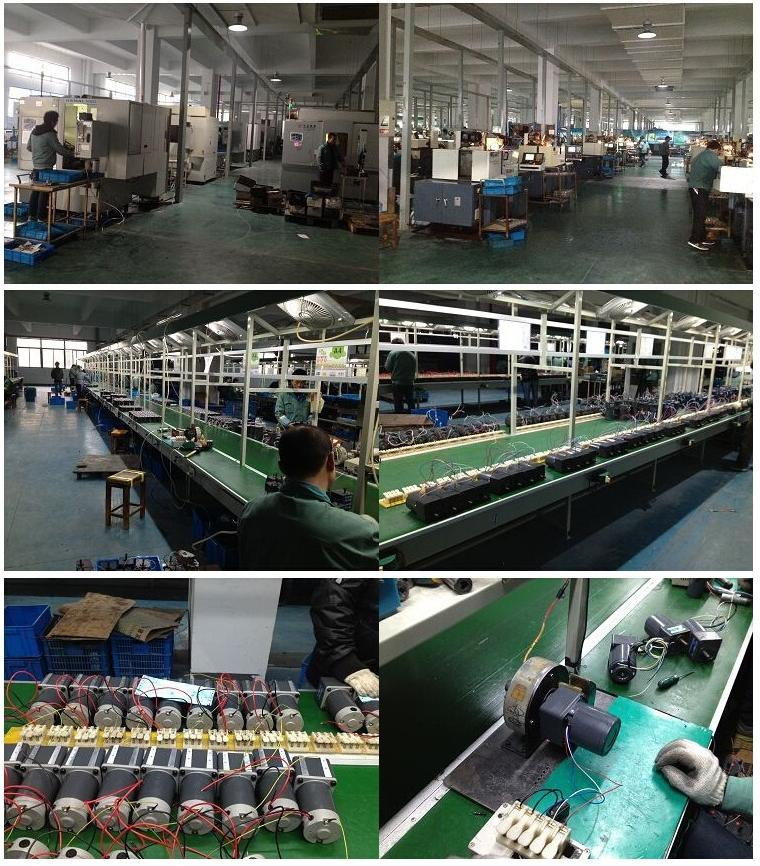

Company Profile:
Ningbo Yinzhou Longway Tech Co., Ltd located in the famous port city-Ningbo city of Zhejiang Province,China, is a professional motor products manufacturer which owns the unique combination of R&D, production, sale and service.

In recent ten years, Longway has been dedicated to the manufacture of the motor products and the main products can be classified into the following series, namely ac induction gear motors,ac reversible gear motors,ac brake motors,speed adjustable gear motors,brake speed adjustable gear motors.

Our motor products are widely applied in the fields of automotive industry, industrial automation and robotics, medical equipment, packing machinery and transmission industry, offering customers reliable tailored solutions for driving and controlling.

Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.

The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.

"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
