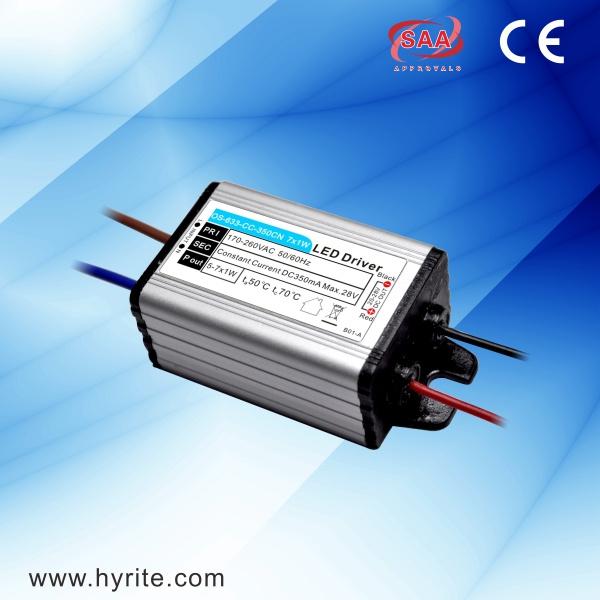

6W IP67 Constant Current LED Driver for LED Lighting

Name: 6W IP67 Constant Current LED Driver for LED Lighting
Brand: all-electronics-online.com
SKU: 748433235
Availability: InStock
Rating: 4.3 (108 reviews)

Price:	US $ 2.5-2.55/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	OS-633
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	6W Max
Output:	Constant Current or Constant Voltage
Input Voltage:	170-260V
IP Rating:	IP67
Warranty:	2 Years Warranty
Use:	for Spot Light, Down Light, Panel Light
Size:	453021mm
Case:	Aluminum
Efficiency:	85%
Operating Temperature:	-25~40 Degree
Usage:	Construction, Building
Circuit Structure:	Electronic Step-down Transformer
Output Type:	Terminal
Driving Method:	Constant Voltage or Constant Current
Certification:	CE, RoHS, EMC Test
Power Supply Voltage:	AC170-260V
Brand:	Neonpro

Product Description

6W 350mA IP67 Constant Current LED Driver for LED Lighting with CE

Product Feature:
*Constant voltage and constant current, aluminum case, IP67
*Used for Spot Light, Down Light, Panel Light etc
*Protections: Short circuit/over load/over voltage/over temp
*2 years warranty
*CE approval

Note:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc

Shipping:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Technical Specification:

Model no.	OS-633
Input voltage	170-260 VAC 50/60 Hz
Max. power	6W max
Output type	Constant Current or Constant Voltage
Efficiency	85%
Output	350mA or 12VDC
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 degree
Installation	Waterproof
IP rating	IP67
Certificates/standards	CE
Connection input/output	Terminal
Dimensions(LWH)	453021mm
Packing information	100Pcs/ Carton, G.W 3.5KG

Applications of LED Driver
* LED module
* LED strip
* LED-neon tube
* Bar light
* Other signage lighting

Important Parameter of LED Driver:
* Store Temperature: -25~75° C
* Working Temperature: -25~40° C
* Work environment: Indoor or outdoor installations
* Waterproof Rating: IP67

Equipment and Production Lines:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
